Home Glass Railing Handrail Handrail Saddle
Stainless Steel Handrail Saddle

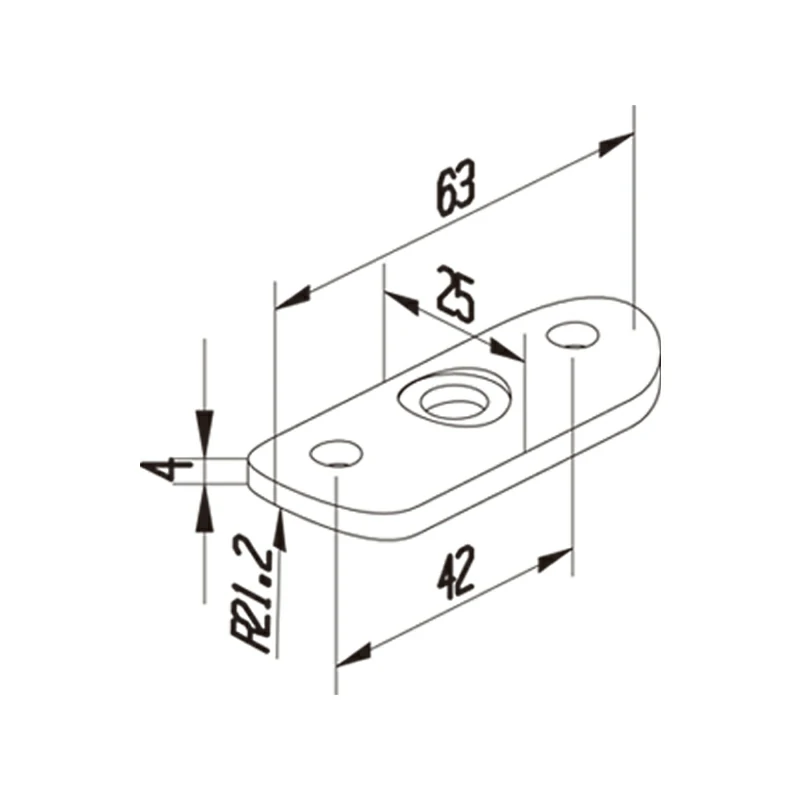

Stainless Steel Handrail Saddle Structure
Stainless Steel Handrail Saddle Stainless Steel Handrail Saddle Structure

Handrail Saddle

Part No. LS-CRADLE42

Outline Dimension: 42.4mm
Weight 0.04Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Saddle Description

Stainless Steel Handrail Saddle is a component used in the construction of handrails, the primary function of a handrail saddle is to provide a stable and secure connection point between the handrail and the supporting structure. It helps distribute the weight and pressure placed on the handrail evenly, ensuring safety and stability for users. These handrail saddles are commonly used in a variety of architectural settings where handrails are required, such as staircases, ramps, balconies, decks, walkways, and other areas where support and safety are essential.



Handrail Saddle Specifications

Product Name

Armrest Tabs

Outline Dimension

42.4mm

Weight

0.04Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Handrail saddles are typically attached to the surface using screws, bolts, or other fasteners. The handrail is then placed on top of the saddle and secured in place, creating a strong and reliable connection that meets safety standards and building codes. Stainless steel handrail saddle require minimal maintenance and are suitable for both indoor and outdoor applications.
