Flat Handrail Saddle

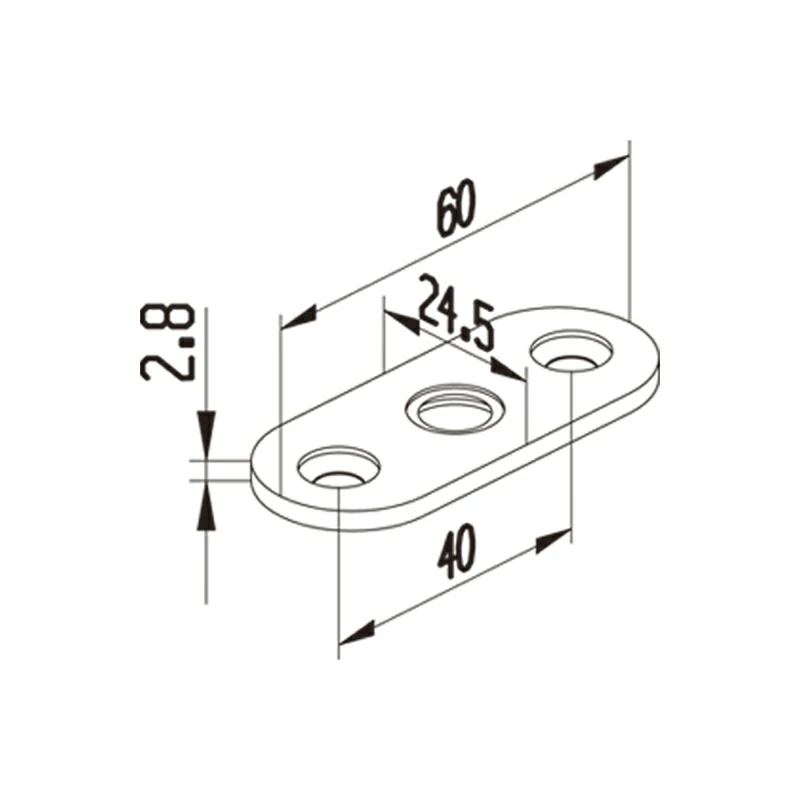

Flat Handrail Saddle Structure
Flat Handrail Saddle Flat Handrail Saddle Structure

Handrail Saddle

Part No. LS-CRADLE-2

Outline Dimension: 40mm*2.8mm
Weight 0.02Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Saddle Description

Stainless Steel Flat Handrail Saddle is a component used in the construction of handrails, particularly in staircases, balconies, walkways, and other areas where a handrail is required for safety and support. The flat handrail saddle is designed to securely attach handrail to a vertical surface, such as a wall or a post. The primary function of a flat handrail saddle is to provide a stable and secure connection point between the handrail and the supporting structure. It helps to distribute the weight and pressure placed on the handrail evenly, ensuring safety and stability.


Handrail Saddle Specifications

Product Name

Armrest Tabs

Outline Dimension





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex stainless steel 2205, Stainless steel 304/316


Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Flat handrail saddles are usually attached to the surface using screws, bolts, or other fasteners. The handrail is then placed on top of the saddle and secured in place, creating a strong and reliable connection that meets safety standards and building codes. The sleek and polished finish of stainless steel adds a touch of elegance to the overall look of the handrail.
