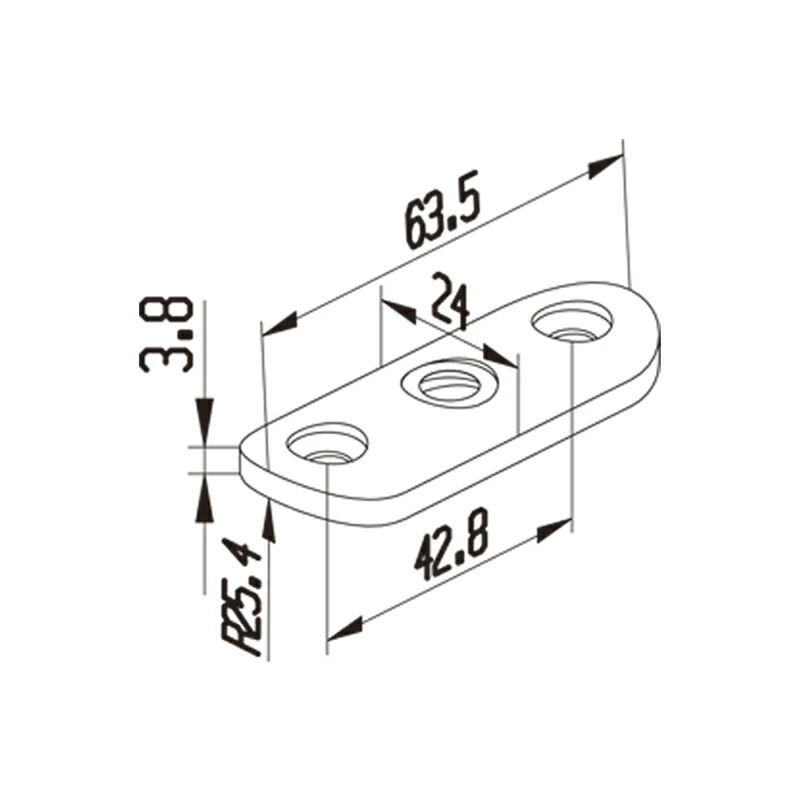

Handrail Saddle Bracket Structure
Handrail Saddle Bracket Handrail Saddle Bracket Structure

Handrail Saddle

Part No. LS-CRADLE50-2

Outline Dimension: 42.8mm*3.8mm
Weight 0.03Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Saddle Description

Stainless Steel Handrail Saddle Bracket is a specific type of bracket used in handrail systems to support and secure handrails to surfaces such as walls, posts, or other structural elements. The handrail saddle helps support the weight of the handrail and provides stability for users. Handrail saddle brackets are designed to accommodate the shape and size of the handrail while securely attaching it to the surface. They come in various designs to suit different handrail profiles and installation requirements.



Handrail Saddle Specifications

Product Name

Armrest Tabs

Outline Dimension

42.8mm*3.8mm

Weight

0.03Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Handrail saddle brackets are versatile components that can be used in a variety of applications, including staircases, balconies, decks, and walkways. They are typically installed by attaching them to the surface using screws, bolts, or other fasteners. Proper installation is crucial to ensure that the handrail is securely mounted and can withstand the forces applied to it.
