Handrail Saddle

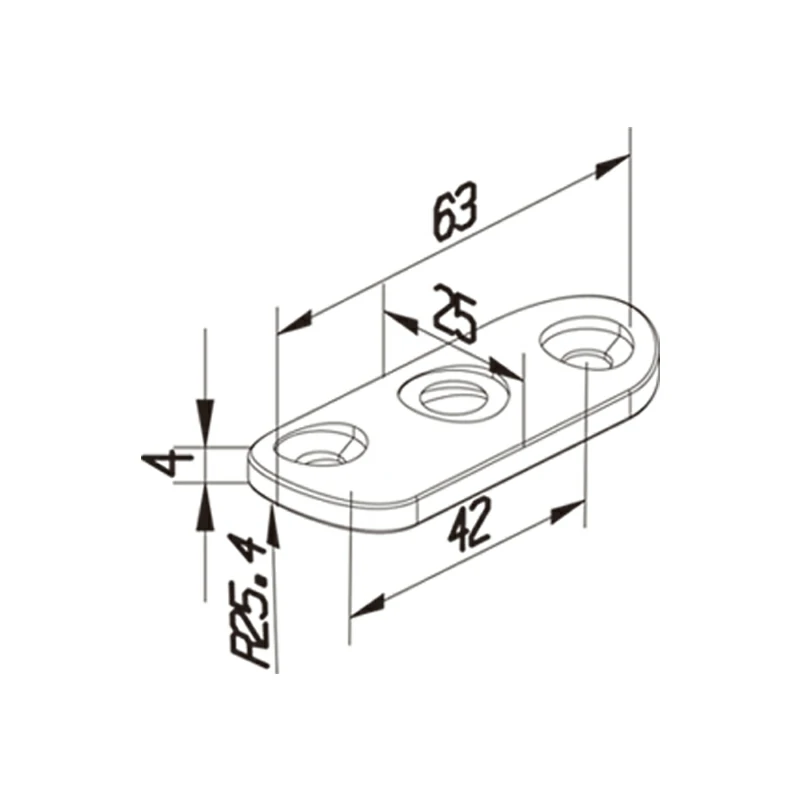

Handrail Saddle Structure
Handrail Saddle Handrail Saddle Structure

Handrail Saddle

Part No. LS-CRADLE50-1

Outline Dimension: 42.4mm
Weight 0.04Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Saddle Description

Stainless Steel Handrail Saddle is a component used in handrail systems to provide support and attachment points for handrails to various surfaces such as walls, posts, or other structural elements. It acts as a mounting bracket that attaches the handrail to the wall or other structures, providing stability and safety for users. Handrail saddles come in various designs to accommodate different handrail shapes and mounting requirements. They are often designed to be sleek and unobtrusive, blending seamlessly with the overall aesthetic of the handrail system.



Handrail Saddle Specifications

Product Name

Armrest Tabs

Outline Dimension

42.4mm

Weight

0.04Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Handrail saddles are typically installed by attaching them to the surface using screws or other fasteners. Proper installation is essential to ensure that the handrail is securely attached and can support the weight and pressure applied to it.

Stainless steel handrail saddles are relatively low maintenance and can be cleaned with mild soap and water to maintain their appearance. Regular inspection and maintenance are recommended to ensure that the handrail system remains secure and in good condition.
