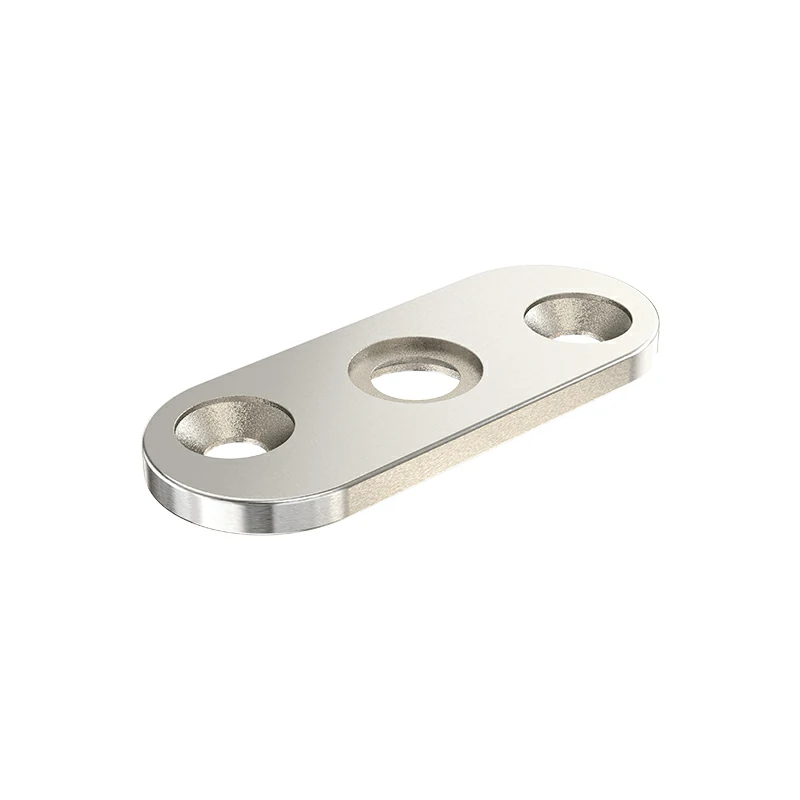

Fence Rail Saddles

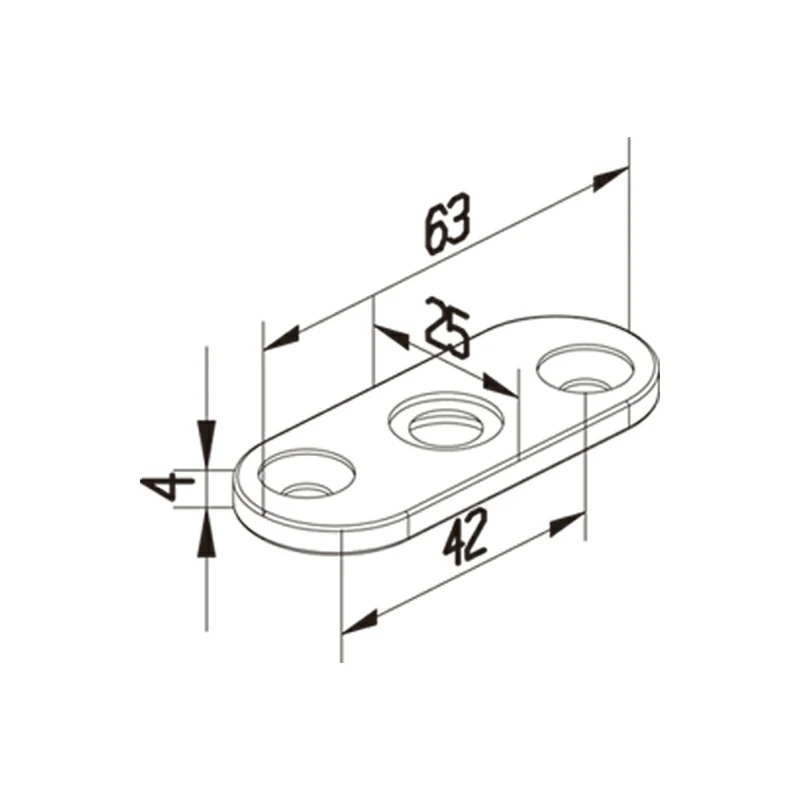

Fence Rail Saddles Structure
Fence Rail Saddles Fence Rail Saddles Structure

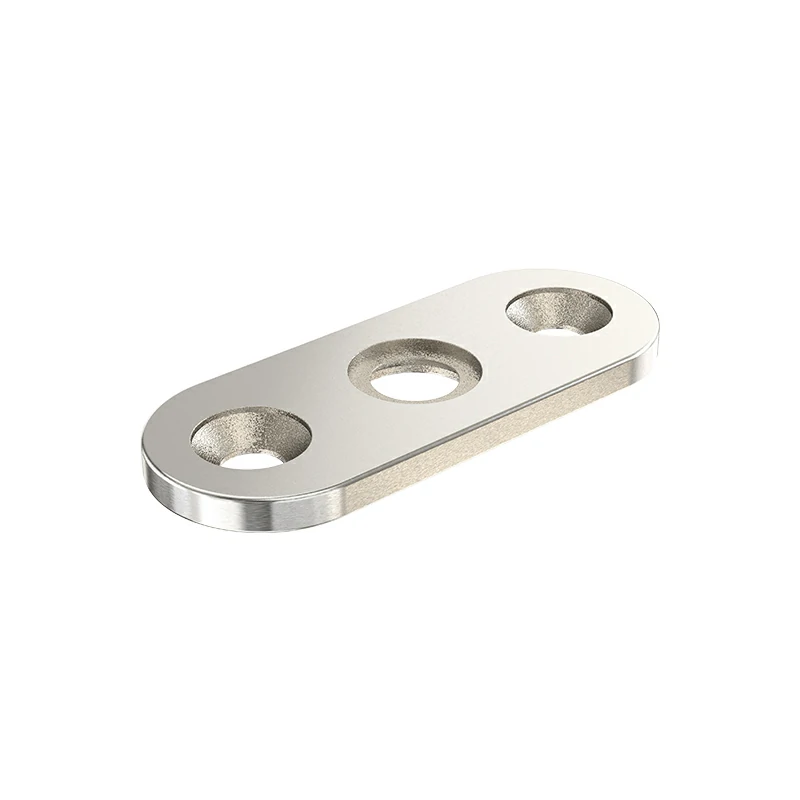

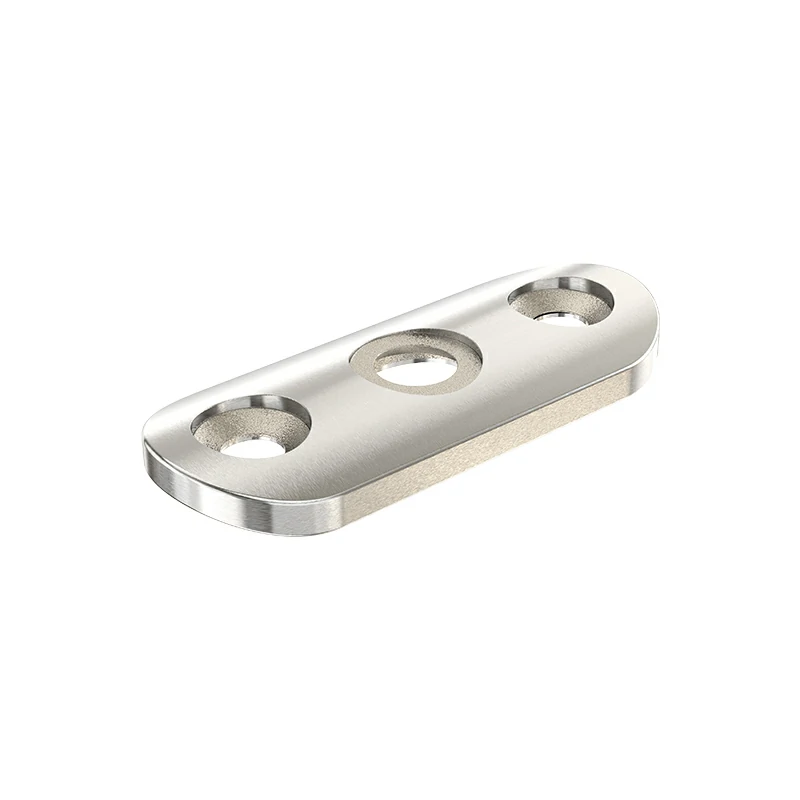

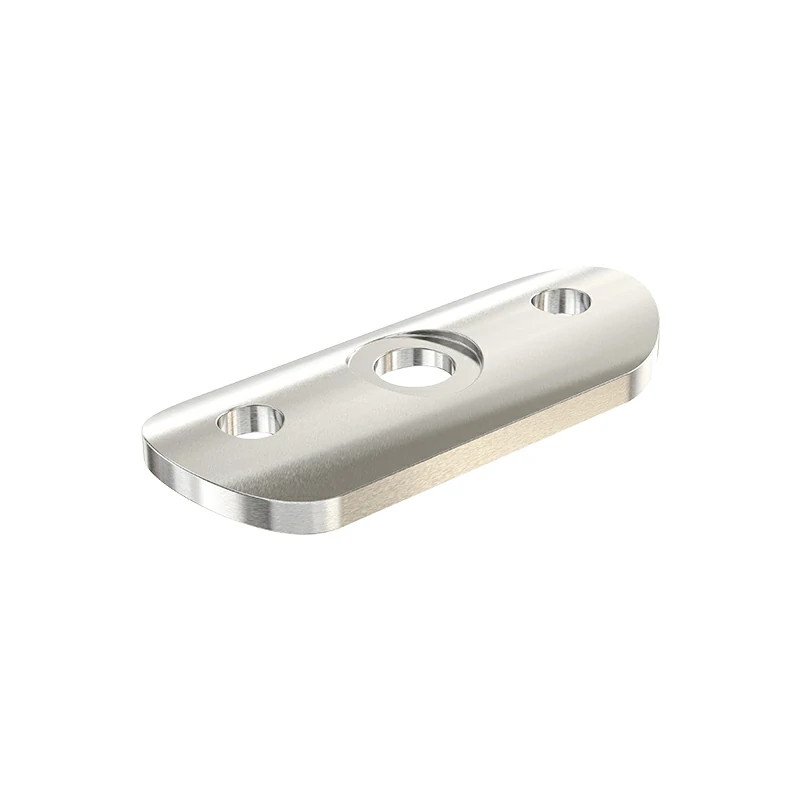

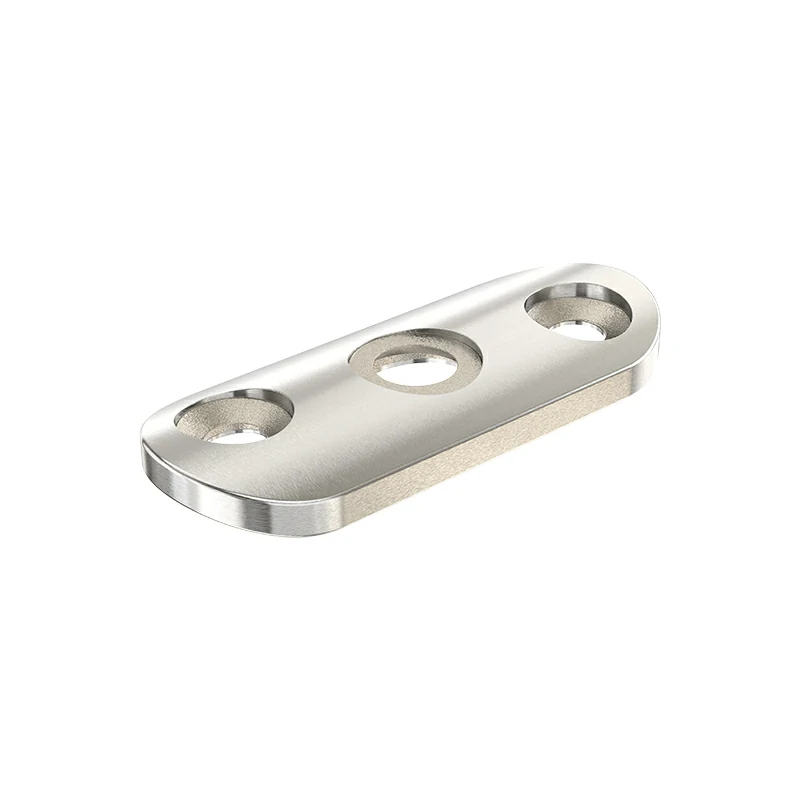

Handrail Saddle

Part No. LS-CRADLE-1

Outline Dimension: 42.4mm
Weight 0.04Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Saddle Description

Stainless steel fence rail saddles are components used in the construction of fences, particularly in railings and balustrade systems. The handrail saddle is designed to provide a stable and secure connection point for the rails. The primary function of fence rail saddle is to hold the horizontal rails in place along the length of the fence, providing structural support and stability to the overall fence system. These rail saddles are commonly used in various types of fences, including residential fences, commercial fences, pool fences, balcony railings, and other perimeter barriers where horizontal rails are required.


Handrail Saddle Specifications

Product Name

Armrest Tabs

Outline Dimension





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex stainless steel 2205, Stainless steel 304/316


Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Fence rail saddle is usually attached to the posts or vertical supports of the fence using screws, bolts, or other fasteners. The rails are then placed into the saddles and secured, creating a strong and reliable connection.
