Home Glass Railing Handrail Handrail Connectors
Square Tube Connector

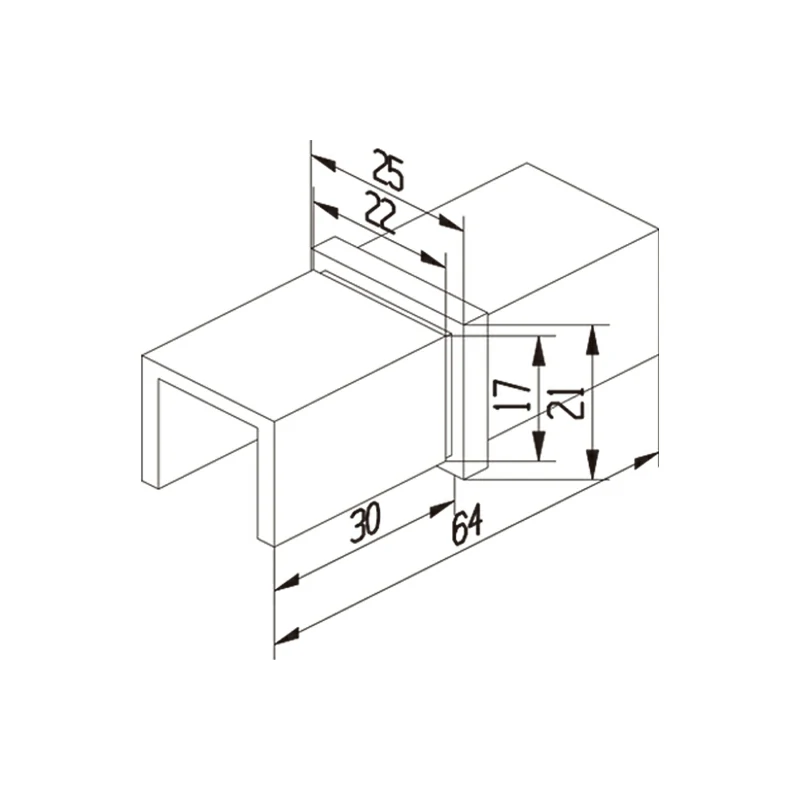

Square Tube Connector Structure
Square Tube Connector Square Tube Connector Structure

Handrail Connectors

Part No. LS-2509

Coupling: 21mm*25mm
Weight 0.08Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Connector Description

This connector is designed to join two square tube handrails at a joint, allowing for a secure and stable connection between the two sections of the handrail. The primary function of the Square Tube Connector is to provide structural support and stability to the handrail system at the point where two handrail sections meet. It helps maintain the alignment and strength of the handrail. Stainless Steel Handrail Square Tube Connectors are commonly used in architectural projects where square handrail tubes are employed, such as in modern or contemporary designs for staircases, balconies, terraces, and other areas where handrails are required.



Handrail Connector Specifications

Product Name

Handrail Tee Connector

Coupling

21mm*25mm

Weight

0.08Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

These handrail fittings come in different sizes to accommodate various square tube dimensions commonly used in handrail systems. They may also come in different finishes to match the overall design scheme of the project.

The connector is installed by attaching it to the ends of the square handrail tubes and securing them in place using screws or other fastening methods. Proper installation is essential to ensure the stability and safety of the handrail system.
