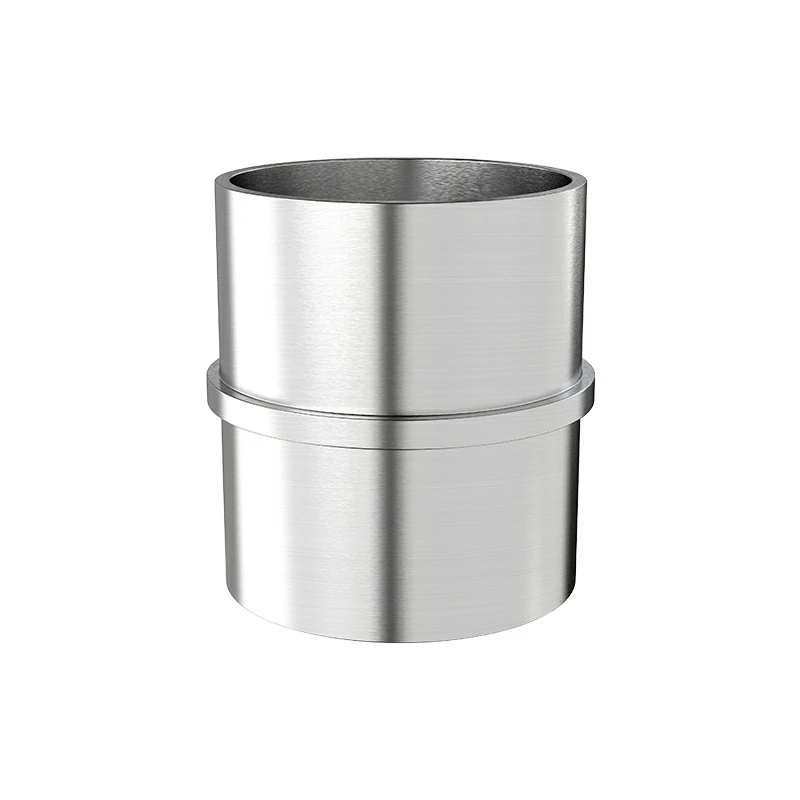

Handrail Inline Connector

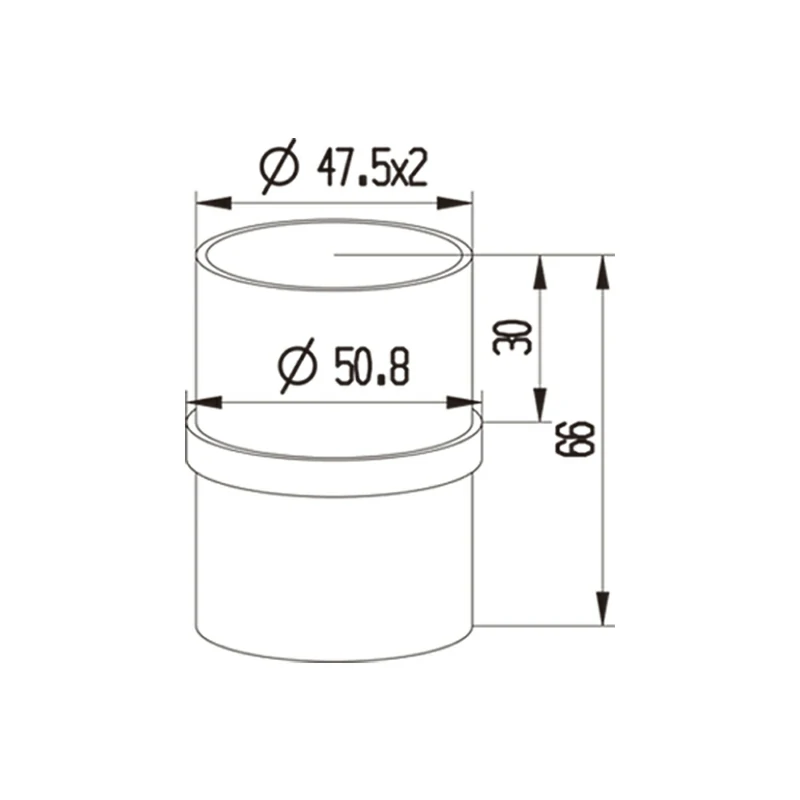

Handrail Inline Connector Structure
Handrail Inline Connector Handrail Inline Connector Structure

Handrail Post Connectors

Part No. LS-9019

Coupling: Φ42.4mm
Weight 0.22Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Connector Description

This handrail connector is used to link handrails to columns to support the entire handrail system, ensuring the stability and safety of the entire structure. Stainless steel handrail inline connector is a component used to join two handrail sections in a straight line. It is typically made of stainless steel for durability and corrosion resistance. The inline connector allows for a seamless and secure connection between the handrail sections, maintaining the structural integrity of the handrail system. It is an essential part of the handrail assembly, ensuring a smooth and continuous transition between the handrail segments while providing stability and safety. The design of the inline connector may vary depending on the specific handrail system and installation requirements.



Handrail Connector Specifications

Product Name

Handrail Post Connectors

Coupling

Φ42.4mm

Weight

0.22Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Ensure that the connectors comply with applicable building and safety codes to meet relevant standards and regulations. Know the load-bearing capacity of the connectors to ensure that they are adequate to support the load of the handrail at the corner to prevent accidents.

Handrail Inline Connector Application
