Handrail Horizontal Connector

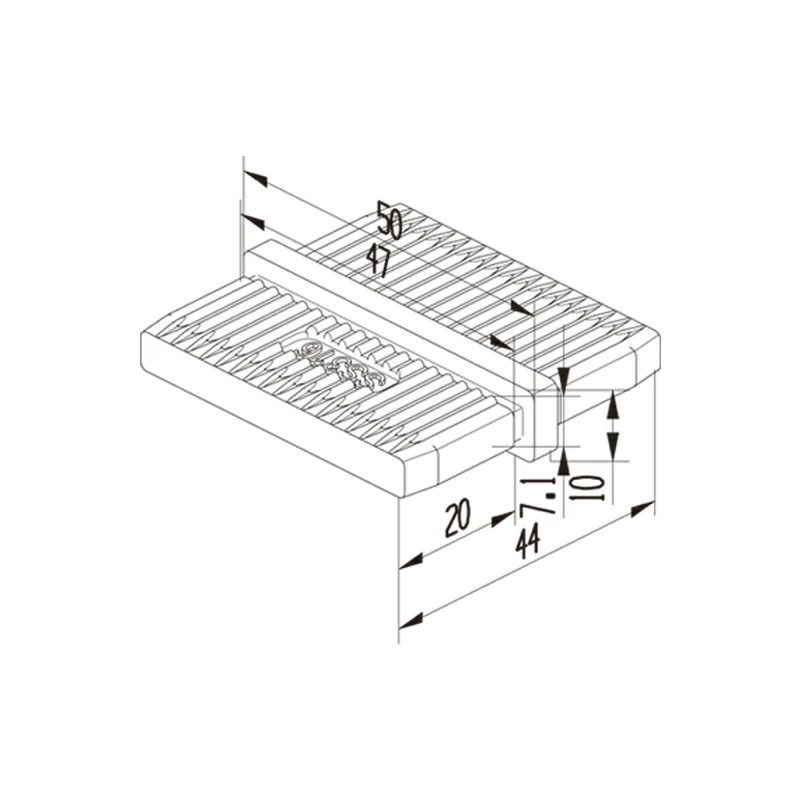

Handrail Horizontal Connector Structure
Handrail Horizontal Connector Handrail Horizontal Connector Structure

Rectangular Handrail Connectors

Part No. LS-5010-180

Coupling: 50mm*10mm
Weight 0.11Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Connector Description

This handrail connector is used to connect horizontal and vertical sections of handrails to ensure structural stability and integrity. The primary function of a horizontal handrail connector is to securely join two handrail sections in a straight, horizontal line. It ensures a seamless and continuous connection between the handrail segments, maintaining the structural integrity of the handrail system. Handrail Horizontal connectors allow for customization of handrail configurations to suit the specific layout and design requirements of the space.


Handrail Connector Specifications

Product Name

Rectangular Handrail Connectors






Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex stainless steel 2205, Stainless steel 304/316


Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Casting Process

Silica Sol Technics with Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Installing a horizontal handrail connector involves connecting two handrail sections in a horizontal orientation to create a continuous handrail line. Proper alignment and secure fastening are essential to ensure the stability and safety of the handrail system.

Ensure that the connectors have sufficient strength and durability to withstand the stresses on the handrail and the weight under the conditions of use. Follow local building codes and safety regulations to ensure that the connectors are used in compliance and remain safe.
