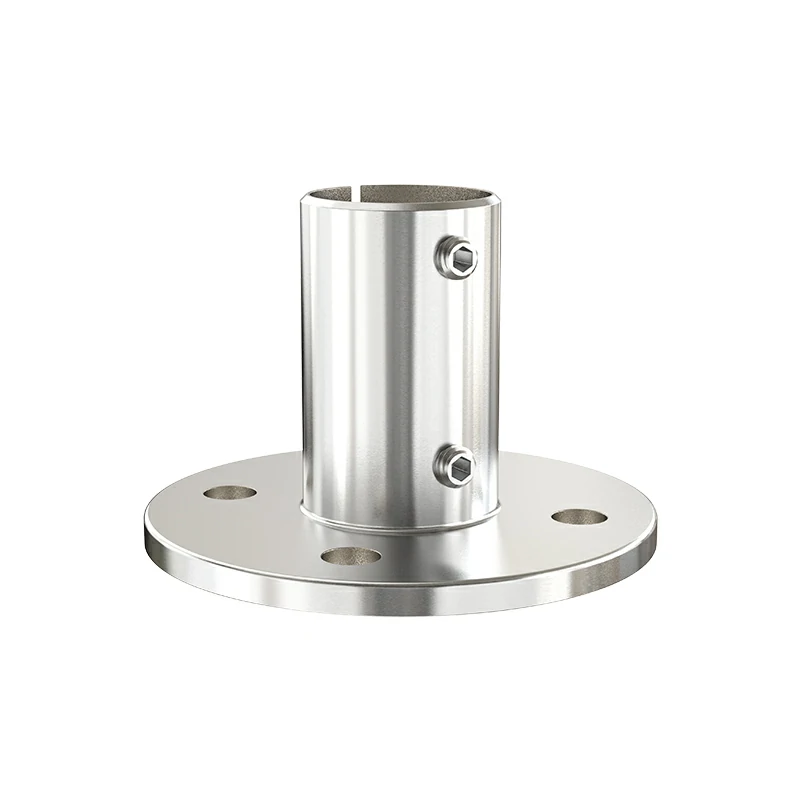

Hand Rail Base

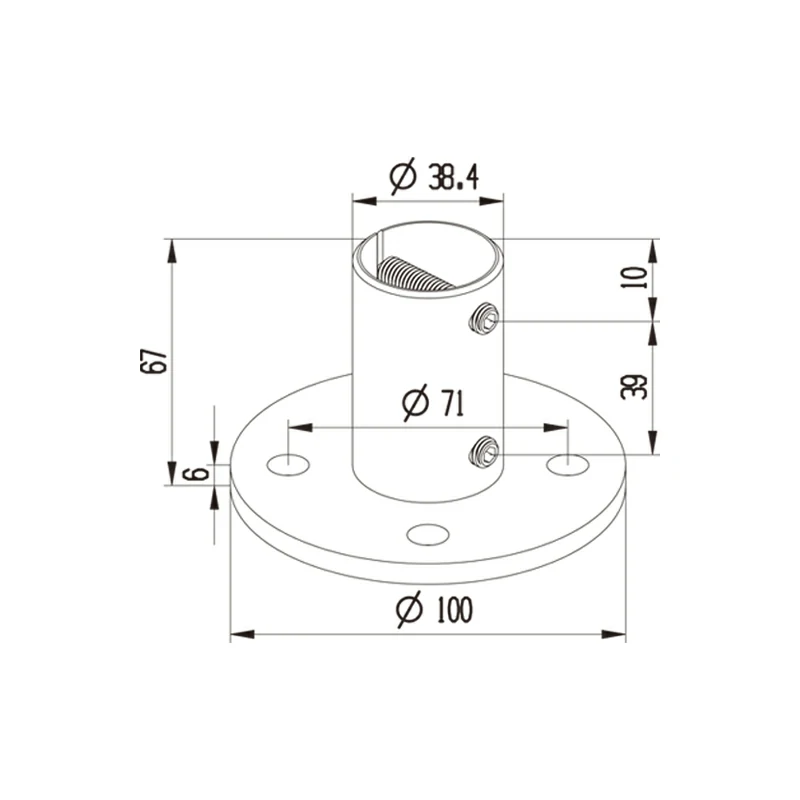

Hand Rail Base Structure
Hand Rail Base Hand Rail Base Structure

Column Base Connector

Part No. LS-NTR-R42.4-15

Coupling: ∅38.4mm
Weight 0.43Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Connector Description

Stainless steel hand rail base is a component used to provide support and stability to a handrail. It is typically mounted to a surface, such as a wall or a floor, and serves as the foundational point for the handrail. The stainless steel construction ensures durability and corrosion resistance, making it suitable for both indoor and outdoor applications. Handrail bases come in various designs to accommodate different installation requirements and aesthetic preferences, and they play a crucial role in ensuring the safety and functionality of handrail systems in architectural and construction settings.


Handrail Connector Specifications

Product Name

Column Base Connector






Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex stainless steel 2205, Stainless steel 304/316


Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Ensure that base connectors comply with applicable building and safety codes to meet relevant standards and regulations. Consider the adaptability of the connector to the ground, especially on uneven surfaces or different types of ground. Select a design that is suitable for that ground.

Hand Rail Base Application

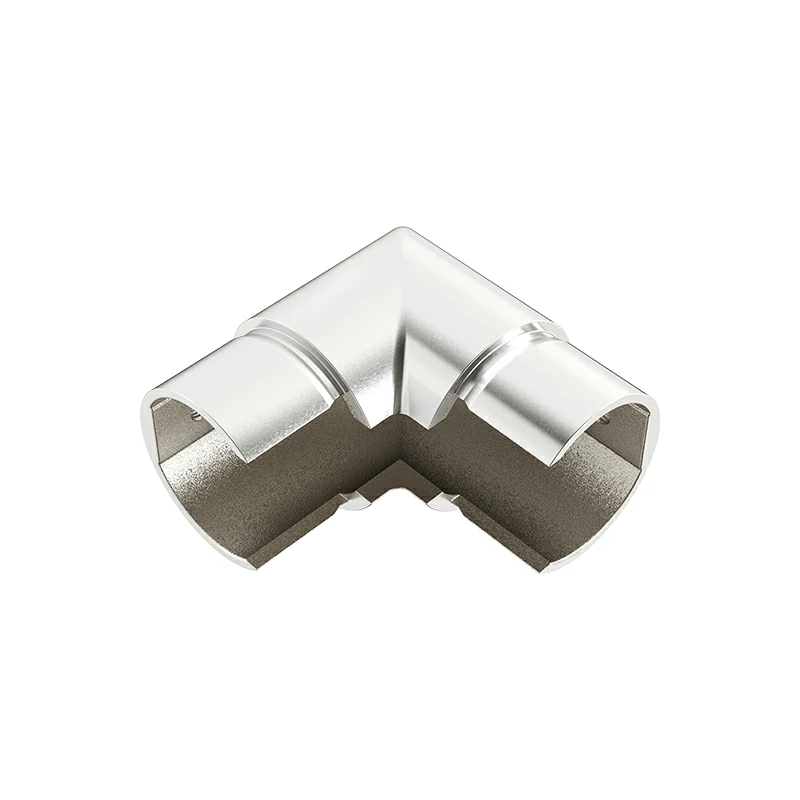

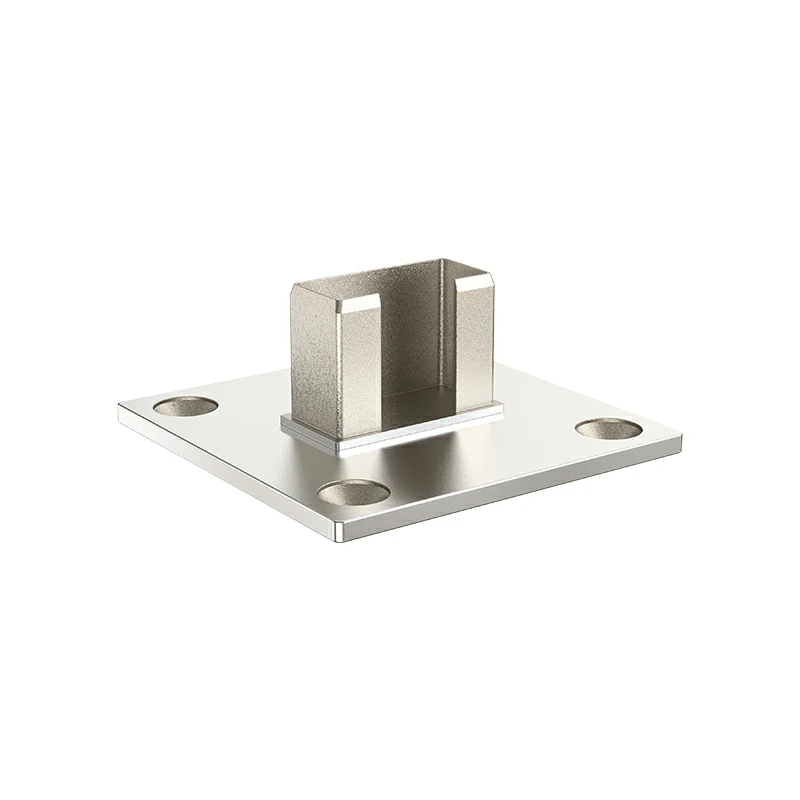

Related Products
