HomeGlass Railing Handrail Round Top Rail Φ38.1mm 90º Joiner
Stainless Steel Rail Round 90 Degree Joiner

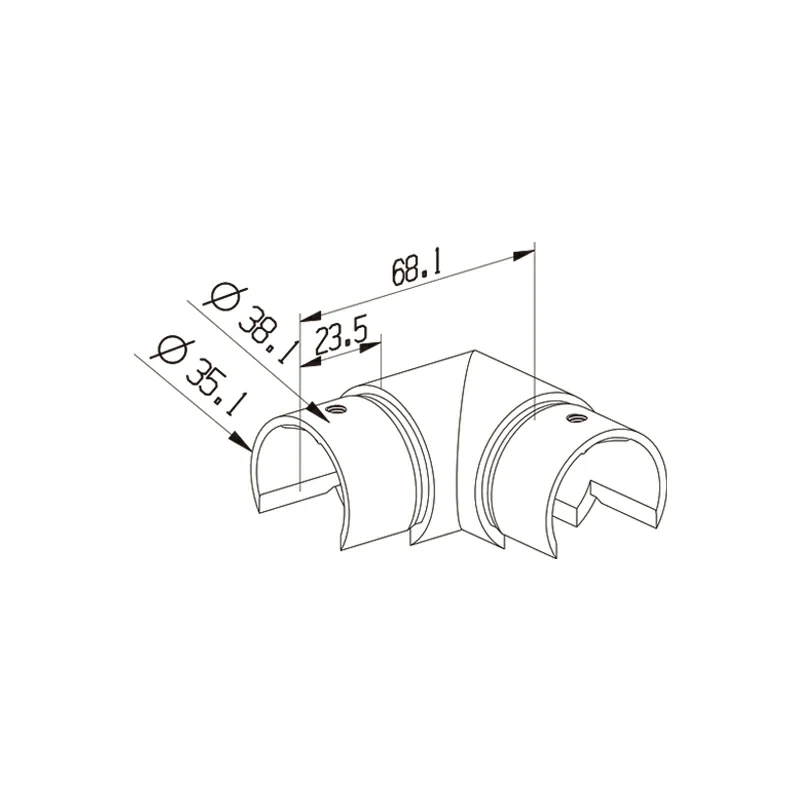

Round 90 degree Joiner Structure
Stainless Steel Rail Round 90 Degree Joiner Round 90 degree Joiner Structure

Round Top Rail Φ38.1mm 90º Joiner

Part No. HR-3890P

Coupling: 38.1mm*1.5mm
Weight 0.19Kg
Material 2205/304/316
Application: Handrail fence for various scenes, etc.

Handrail Joiner Description

The Stainless Steel Round Rail 90 Degree Joiner is used to connect two sections of round-shaped railing together at a 90-degree angle. Diameter of handaril tube is Φ38.1mm (approximately 1.5 inches). This handrail joiner is designed to vonnects two sections of railing for a smooth corner.

The round 90 degree joiner is made of high-quality stainless steel for its durability, corrosion resistance, and aesthetic appeal, making it suitable for both indoor and outdoor use. These handrail fittings are used to residential railings for balconies, decks, and staircases, orcommercial railings for buildings, public spaces, and industrial facilities.



Handrail Joiner Specifications

Product Name

Round Top Rail 90º Joiner

Coupling

38.1mm*1.5mm

Weight

0.19Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Handrail fence for various scenes, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

These round rail 90º joiners are available in different finishes (polished, satin) to suit various environmental requirements. They are designed for provides for easy installation and adjustment, and provide a clean, safe, and attractive appearance for the stair railing system.

Round Top Rail Φ38.1mm 90º Joiner Application
