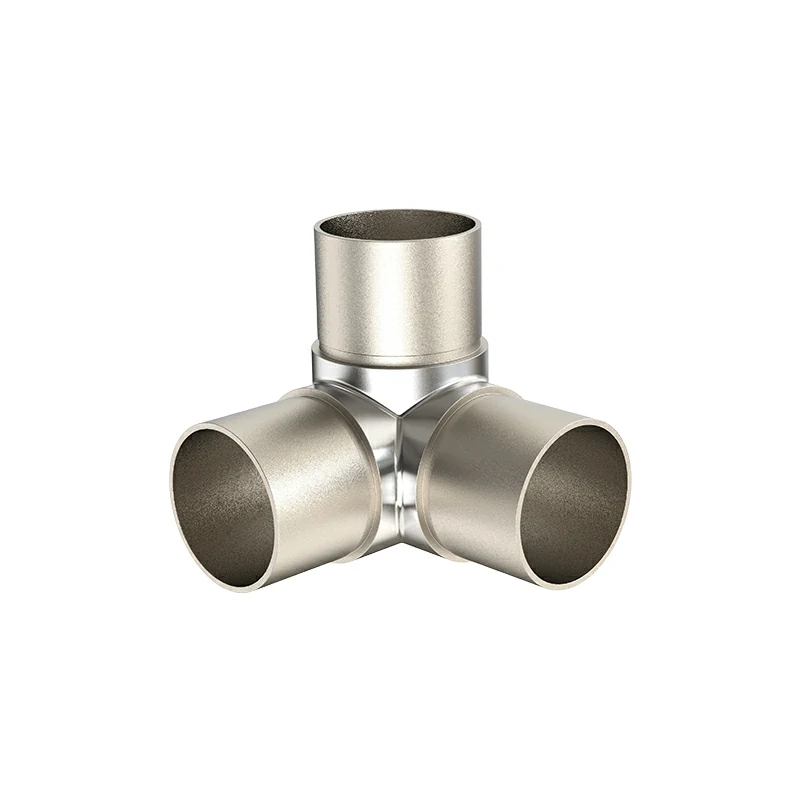

Tee Handrail Connector

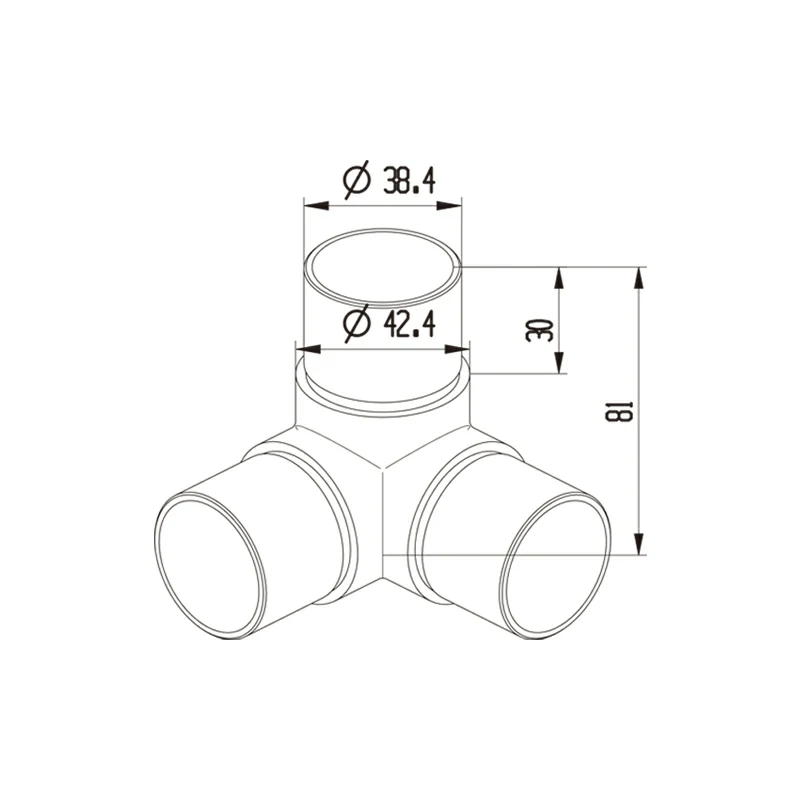

Tee Handrail Connector Structure
Tee Handrail Connector Tee Handrail Connector Structure

Column Tee Connector

Part No. LS-NTR-R42.4-9

Coupling: ∅42.4mm
Weight 0.38Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Connector Description

Stainless steel tee handrail connector is a component used in the construction of handrails. It is designed to join handrail sections at a perpendicular angle, forming a "T" shape. This type of connector provides structural support and stability to the handrail system. The stainless steel material offers durability and resistance to corrosion, making it suitable for various environments, including indoor and outdoor settings. Tee handrail connectors come in different sizes and designs to accommodate the specific dimensions and style of the handrail, and they are commonly used in both residential and commercial applications to create secure and visually appealing handrail configurations.


Handrail Connector Specifications

Product Name

Column Tee Connector






Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex stainless steel 2205, Stainless steel 304/316


Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



It is a member used to connect the columns in a handrail system, and this connector is often used to create branching or crossover structures in a handrail system.
Select materials that are corrosion and abrasion resistant for indoor or outdoor environments. Ensure that connector materials comply with relevant building and safety codes. Determine the connection method, including bolted, welded, or other appropriate connections. Ensure that the connection method provides adequate strength and stability.

Tee Handrail Connector Application
