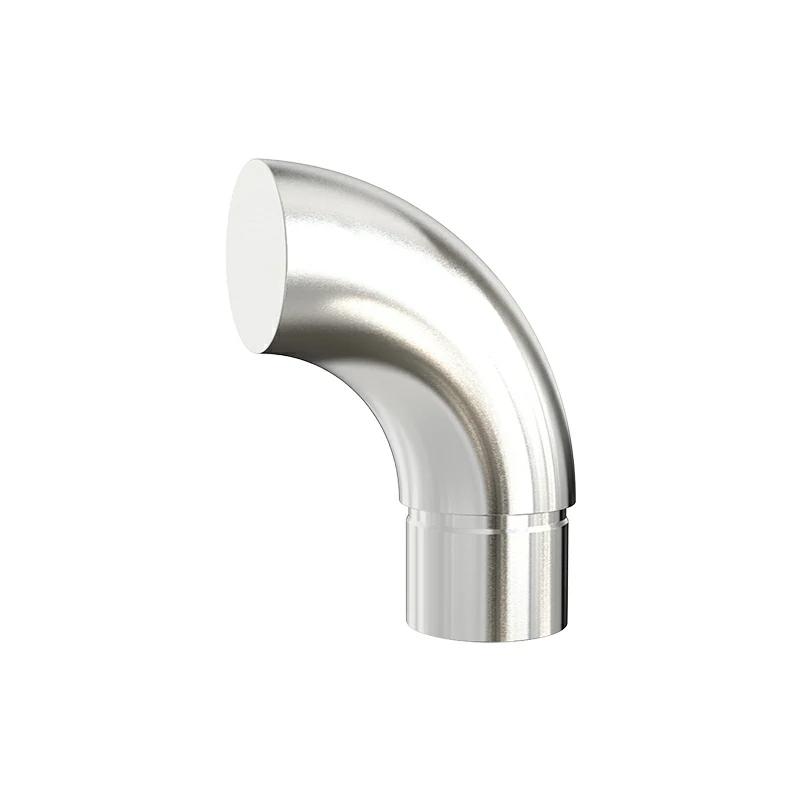

Railing Post Connector

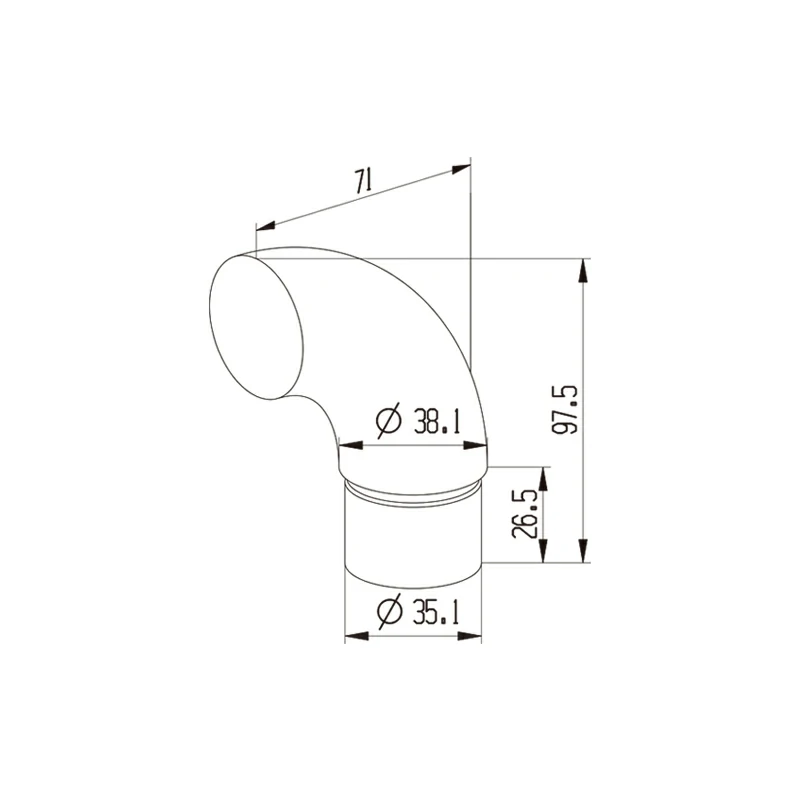

Railing Post Connector Structure
Railing Post Connector Railing Post Connector Structure

Handrail Post Connectors

Part No. HR-38EE

Coupling: 38.1mm*1.5mm
Weight 0.305Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Connector Description

Stainless steel railing post connector is a component used in the construction of railing systems. It is designed to connect railing posts together, providing structural support and stability to the overall railing structure. These connectors are typically made of stainless steel, offering durability, corrosion resistance, and an aesthetically pleasing appearance. Railing post connector come in various designs to accommodate different types of railing posts and are commonly used in both indoor and outdoor settings, such as balconies, decks, and stairways, to ensure the stability and safety of the railing system.


Handrail Connector Specifications

Product Name

Handrail Post Connectors






Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex stainless steel 2205, Stainless steel 304/316


Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Ensure that the connectors comply with applicable building and safety codes to meet relevant standards and regulations. The design of these handrail connectors may vary from use to use and is suitable for different types of handrail systems. Know the load-bearing capacity of the connectors to ensure that they are adequate to support the load of the handrail at the corner to prevent accidents.
