Handrail Connector 90 Degree

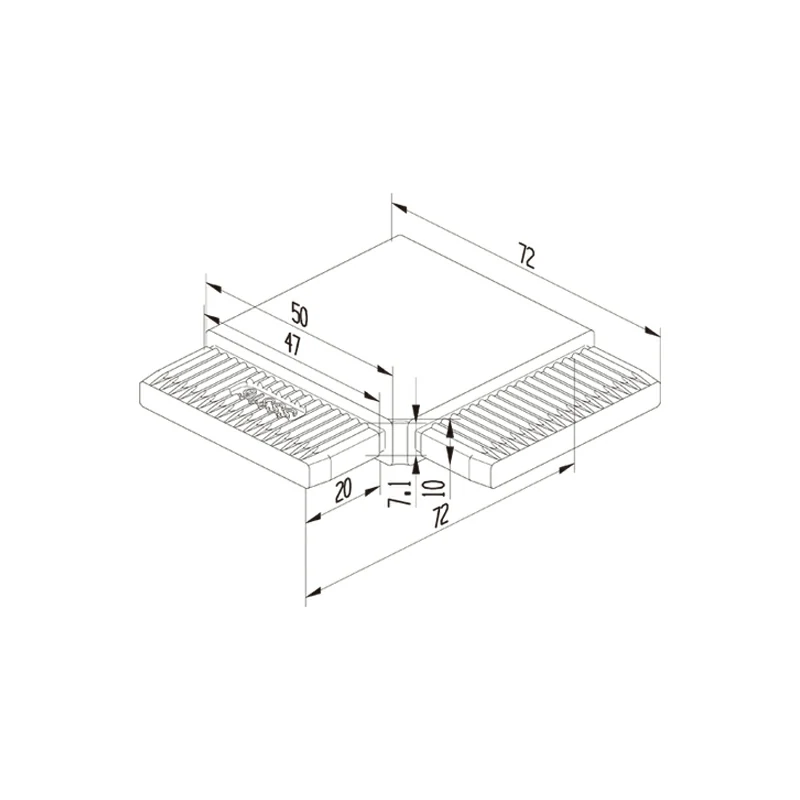

Handrail Connector 90 Degree Structure
Handrail Connector 90 Degree Handrail Connector 90 Degree Structure

Rectangular Handrail Connectors

Part No. LS-5010-90

Coupling: 50mm*10mm
Weight 0.32Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Connector Description

This handrail fitting is used to connect horizontal and vertical sections of handrails to ensure structural stability and integrity.

Stainless steel handrail connector with a 90-degree angle is a specialized component used in handrail systems to create right-angle turns or corners in the handrail layout. The design of a 90-degree handrail connector features a right-angle bend that allows two handrail sections to meet perpendicularly. This connector is essential for maintaining the continuity of the handrail system while ensuring a secure and stable connection at corners.



Handrail Connector Specifications

Product Name

Rectangular Handrail Connectors

Coupling

50mm*10mm

Weight

0.32Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Installing a 90-degree handrail connector involves connecting two handrail sections at a right angle. Proper alignment and secure fastening are crucial to ensure the stability and safety of the handrail system around corners or turns.

Ensure that the connectors have sufficient strength and durability to withstand the stresses on the handrail and the weight under the conditions of use. Follow local building codes and safety regulations to ensure that the connectors are used in compliance and remain safe.
