Railing Base Plate

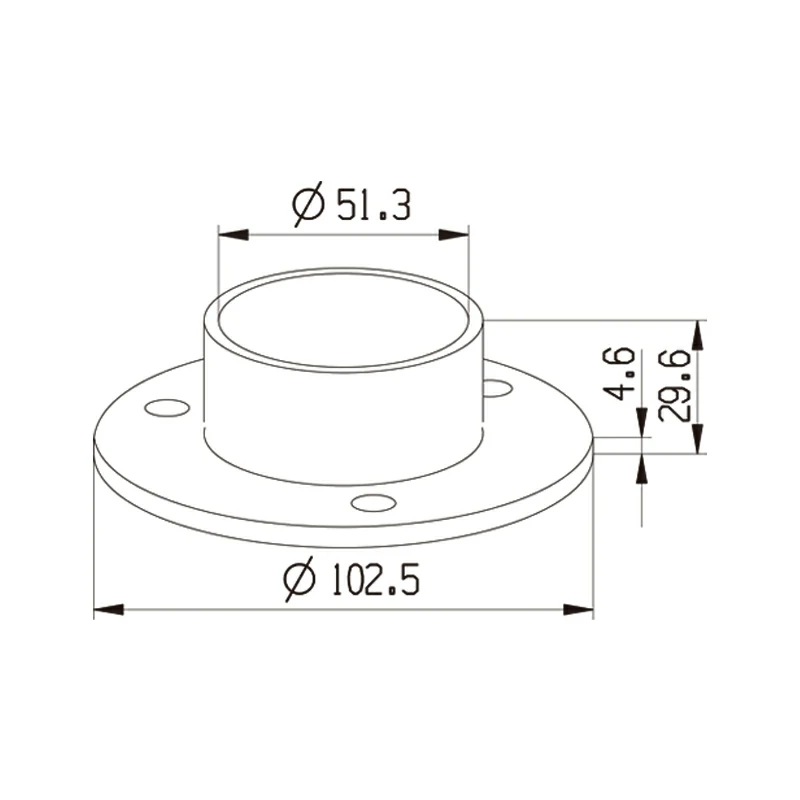

Railing Base Plate Structure
Railing Base Plate Railing Base Plate Structure

Column Base Connector

Part No. HR-50-BP

Coupling: ∅50.8mm
Weight 0.235Kg
Material 2205/304/316
Application: Suitable for all kinds of indoor and outdoor handrails and balustrades, etc.

Handrail Connector Description

Stainless steel railing base plate is a component used to anchor and support a railing system. It is typically made of stainless steel for its durability and resistance to corrosion. The base plate serves as a stable foundation for the railing, allowing it to be securely attached to a surface such as a floor, deck, or stair tread. The design of the railing base plate may vary depending on the specific requirements of the installation and the type of railing system being used. It plays a crucial role in ensuring the safety and stability of the railing.


Handrail Connector Specifications

Product Name

Column Base Connector






Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex stainless steel 2205, Stainless steel 304/316


Suitable for all kinds of indoor and outdoor handrails and balustrades, etc

Casting Process

Silica Sol Technics with Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Ensure that base connectors comply with applicable building and safety codes to meet relevant standards and regulations. Consider the adaptability of the connector to the ground, especially on uneven surfaces or different types of ground. Select a design that is suitable for that ground.

Railing Base Plate Application
