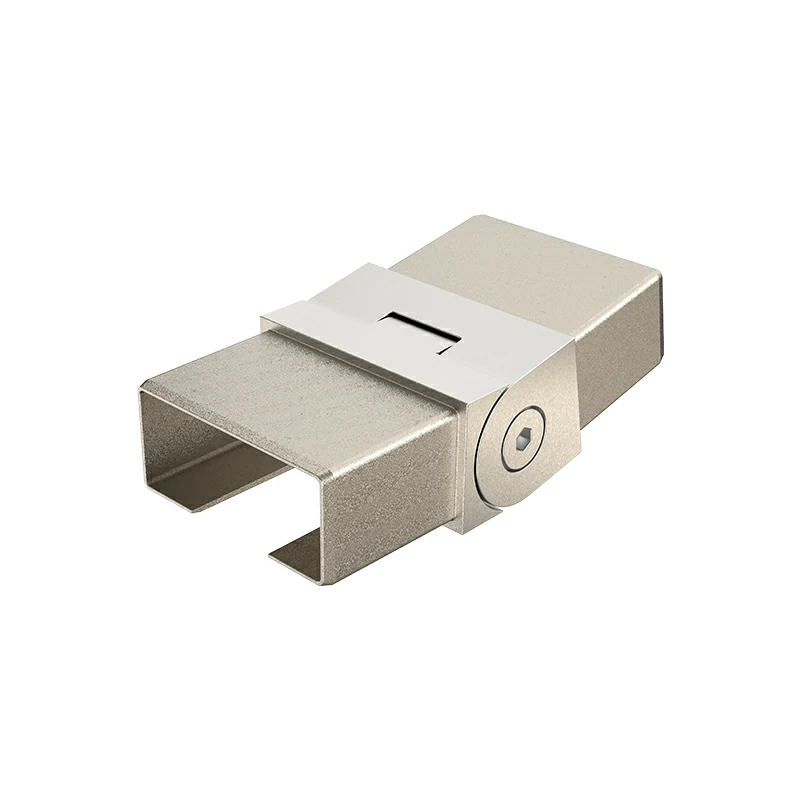

Handrail Connector Description
Inline Handrail Joiners are designed to fit over the ends of two handrail sections that are aligned in a straight configuration. The primary function of a Stainless Steel Inline Handrail Joiner is to join two handrail sections in a straight line, creating a continuous and seamless connection between them. They are engineered to provide a secure and stable connection between the handrail sections, ensuring a smooth and unobtrusive transition along the length of the handrail. They can be of various shapes and sizes to ensure a solid structure and safety.
Handrail Connector Specifications
|
Product Name |
Handrail Tee Connector |
|
Coupling |
21mm*25mm |
|
Weight |
0.06Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Suitable for all kinds of indoor and outdoor handrails and balustrades, etc |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
Installing Inline Handrail Joiner involves aligning the two handrail sections in a straight line and attaching the joiner securely to connect them. This can be achieved using screws, bolts, welding, or other appropriate fastening methods, depending on the specific design and installation requirements.
Ensure that the handrail connectors have sufficient strength and durability to withstand the stresses on the handrail and the weight under the conditions of use. Follow local building codes and safety regulations to ensure that the connectors are used in compliance and remain safe.
