SS Spigot

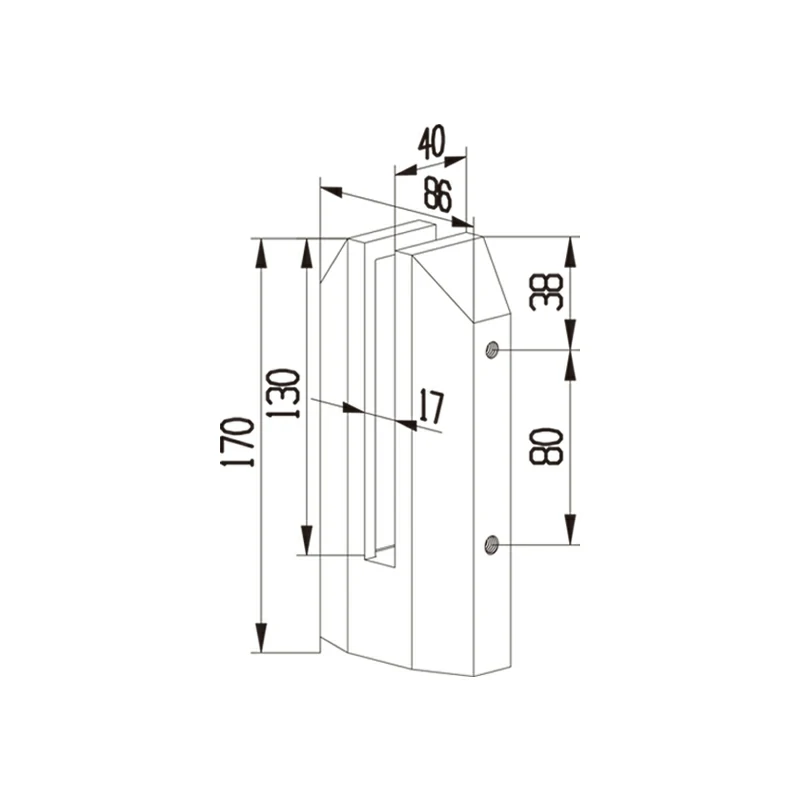

SS Spigot Structure
SS Spigot SS Spigot Structure

Semi-recessed Glass Spigot

Part No. LS-QFC

Glass Thickness 12mm
Weight 2.82Kg
Outline Dimension 170mm*86mm*40mm
Material 2205/304/316
Application: Indoor flooring

Glass Spigot Description

This Semi-recessed SS Spigot is used for glass up to 12mm, suitable for indoor flooring, need to reserve a place under the floor, has a strong weighing capacity. Stainless steel semi-recessed glass spigots offer a balance of functionality and aesthetics in the construction of frameless glass balustrades. Their partially embedded design, along with the strength and durability of stainless steel, make them a popular choice for creating modern and secure glass railing systems in various architectural applications.

Unlike floor-standing spigots that are mounted directly onto the surface, semi-recessed SS spigot is a type of spigot designed to be partially embedded or recessed into the ground or a surface. This design creates a streamlined and minimalist look by partially concealing the base of the spigot.

Glass Spigot Specifications

Product Name

Semi-recessed Glass spigot

Outline Dimension

170mm*86mm*40mm

Glass Thickness

12mm

Weight

2.82Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Indoor Flooring

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

This Semi-recessed SS Spigot is a customized glass spigot for use on floors and requires space to be reserved at the bottom of the floor during construction, with a far greater weighing capacity.

Stainless steel semi-recessed glass spigots require regular cleaning and maintenance to preserve their appearance and prevent corrosion. Periodic inspection and upkeep help ensure the longevity and performance of the spigots in the balustrade system.

SS Glass Spigot Application

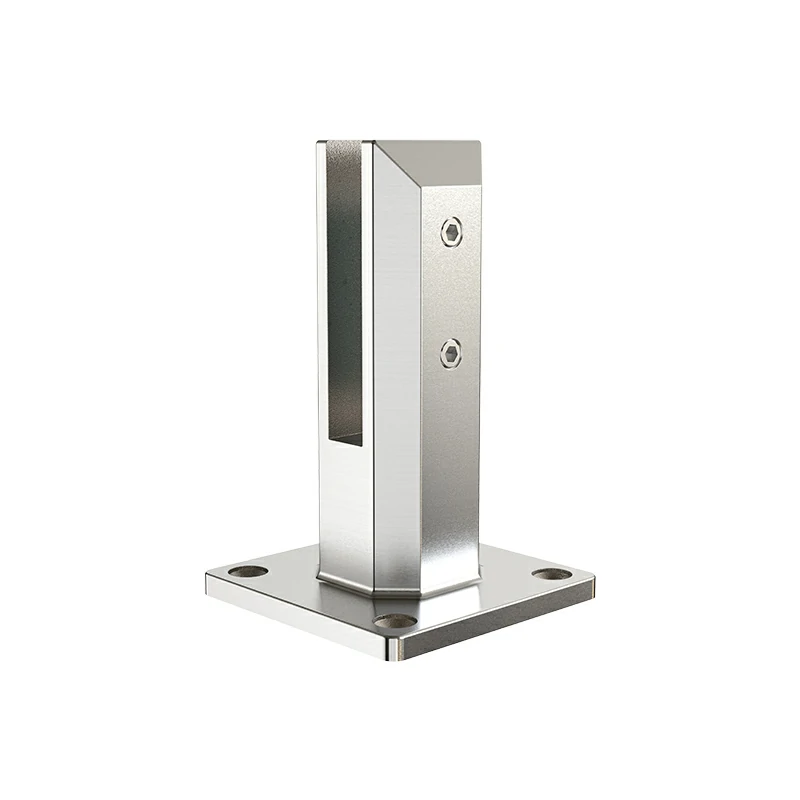

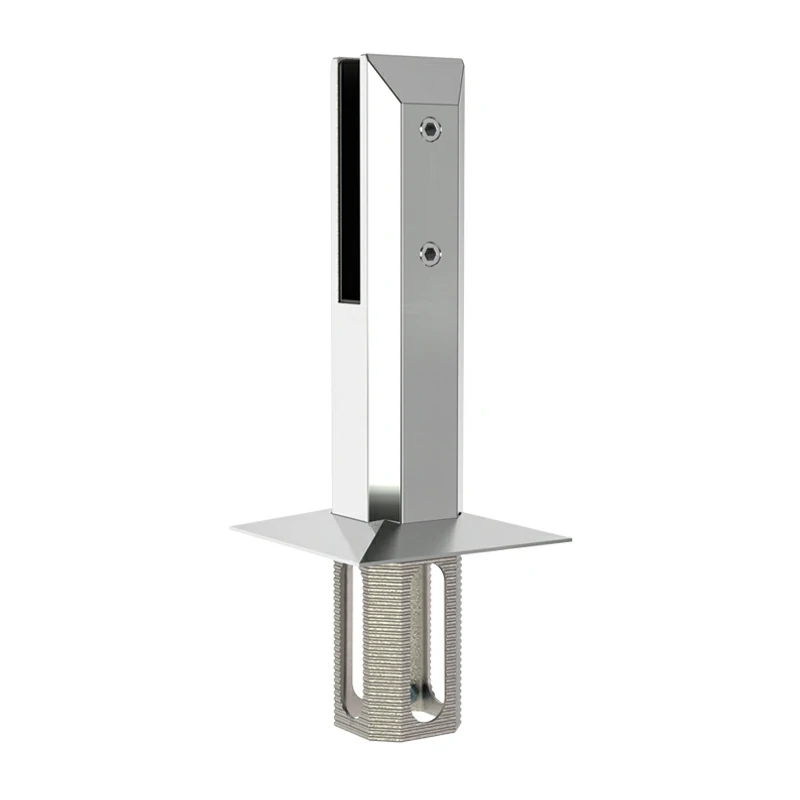

Related Products
