2205 Spigots

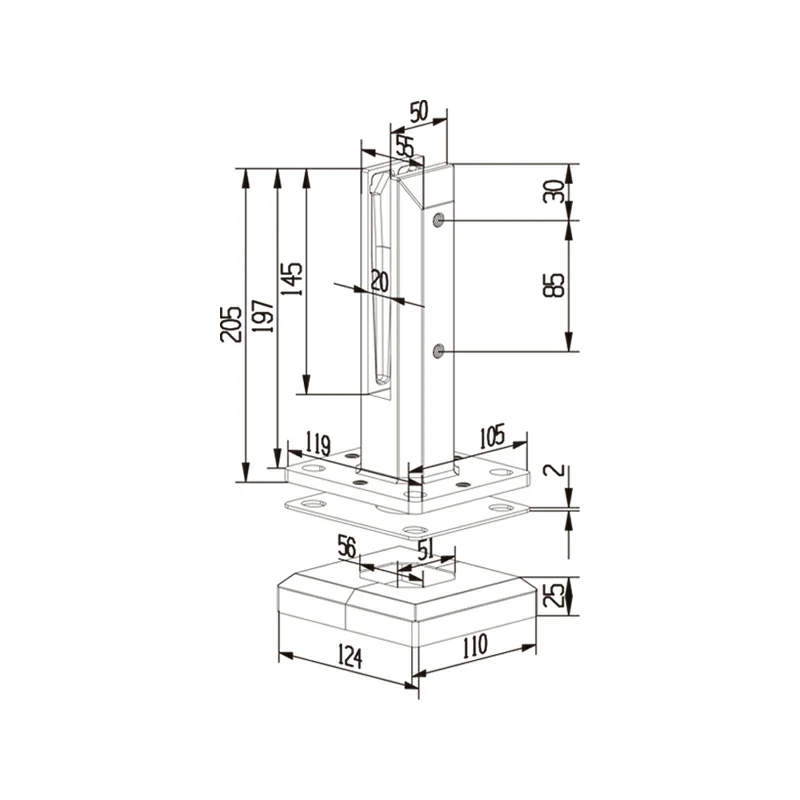

2205 Spigots ASD-3 Structure
2205 Spigots 2205 Spigots ASD-3 Structure

Square Floor-standing Glass Spigot

Part No. ASD-3

Glass Thickness 12-15.04mm
Weight 2.30Kg
Outline Dimension 205mm*124mm*110mm
Material 2205/304/316
Application Large display windows, Partition glass, Glass fences, etc

Glass Spigot Description

This Square floor-standing stainless steel 2205 glass spigots is used for 12-15.04mm glass, suitable for large display windows, partition glass, glass fences, etc. It is a specialized glass spigot designed to securely attach glass panels to a horizontal floor surface.

The bottom of this glass spitot is equipped with adjustable spacers, the maximum adjustable height of 12mm, the maximum adjustable tilt angle of 7°

Glass Spigot Specifications

Product Name

Square Floor-standing Glass Spigot

Outline Dimension

205mm*124mm*110mm

Glass Thickness

12-15.04mm

Weight

2.30Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Large Display Windows, Partition Glass, Glass Fences, etc.

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

2205 Spigots Package

Note

The mounting holes of the 2205 spigots base are waist holes, which are tolerant to the center distance of the pre-punched holes on the ground. The glass spigots cover is split structure, easier to install.

2205 spigots are particularly well-suited for applications where superior corrosion resistance, high strength, and minimal maintenance are crucial. 2205 duplex stainless steel spigots come in various finishes, such as brushed stainless steel, polished stainless steel, and black.

2205 Spigots Application
