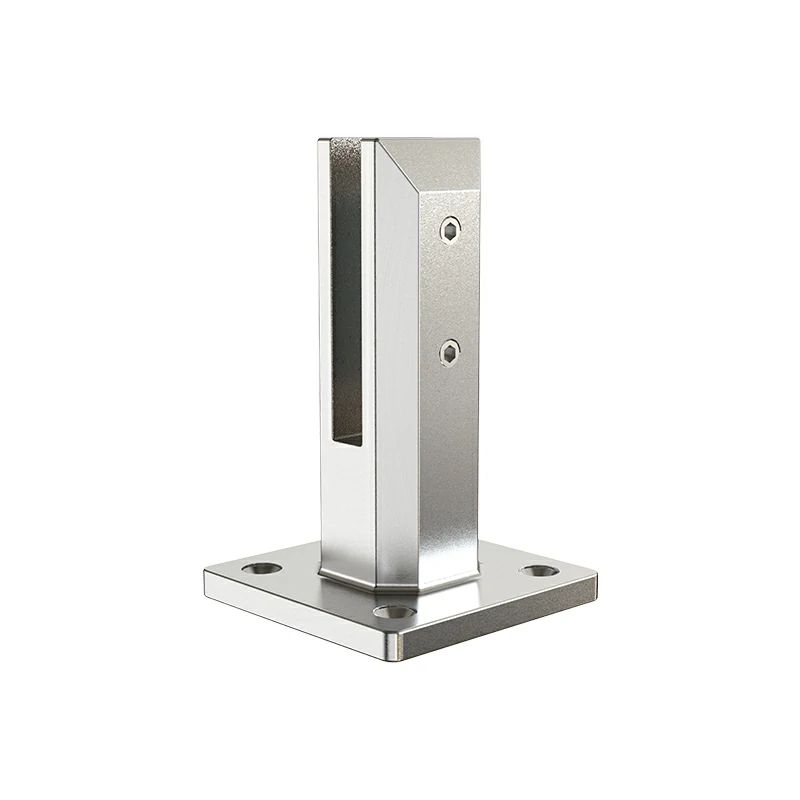

Glass Spigot Description
This floor-mounted glass spigot is used for glass below 12mm, the product is equipped with convex steel spacers, which can fix the glass at different angles, increasing the flexibility of use, suitable for staircase fences.
Floor-mounted glass spigot is designed to securely hold the glass panels in place on the floor without the need for traditional posts or frames. The spigot is installed directly onto the floor surface, providing a clean and modern look to the glass structure.
Glass Spigot Specifications
|
Product Name |
Floor-mounted Glass Spigot |
|

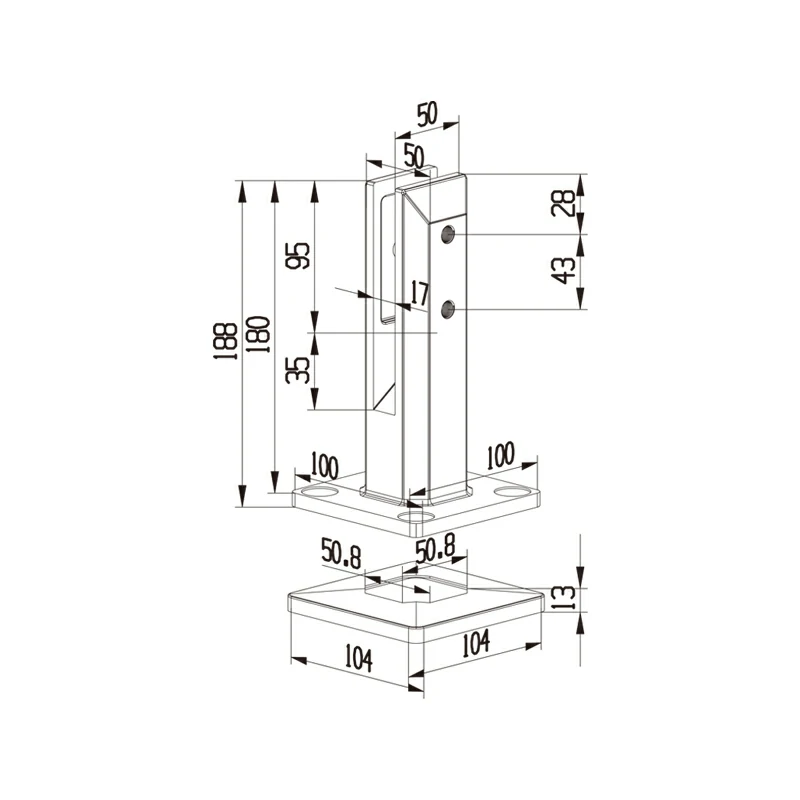

Outline Dimension |
188mm*104mm*104mm |
|
Glass Thickness |
12mm |
|
Weight |
2.20Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex Stainless Steel 2205, Stainless Steel 304/316 |
|
Application |
Staircase |
|
Casting Process |
Siica Sol Technics Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Week |
|
Delivery Time |
4--5 Week |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note

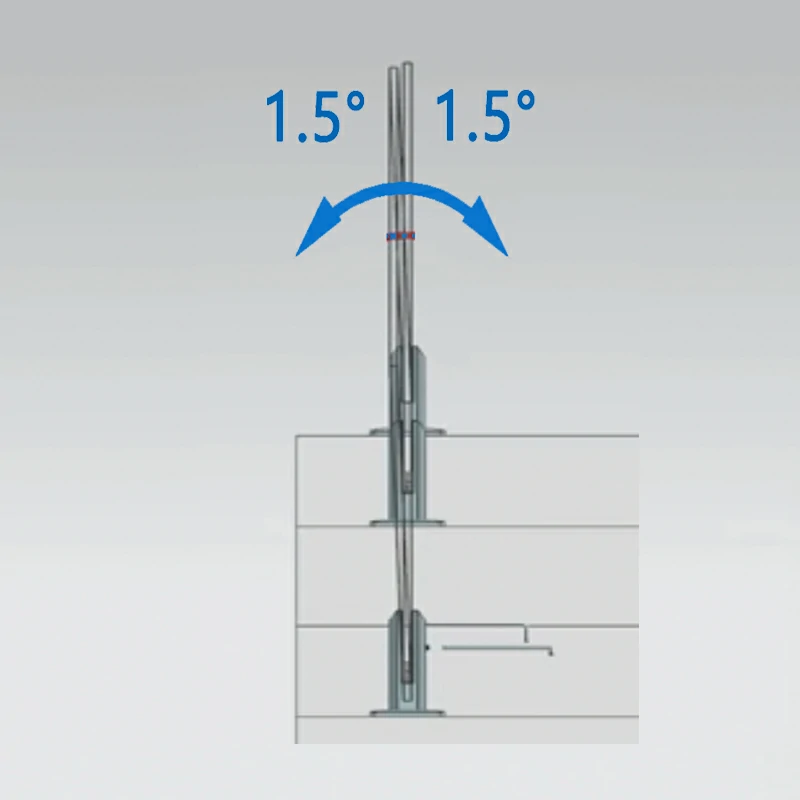

The 12mm glass spigot has an adjustable function at the clevis, which can facilitate the installation of workers when the ground is not level.
Floor-mounted glass spigots can be used with a variety of glass panel thicknesses and styles, including tempered glass, laminated glass, and patterned glass.
The 12mm glass spigot is equipped with 3 different types of underlay gaskets, which can be used for 35° (optional gaskets 30°, 40°) stairs.
Floor mount spigots are specially designed for stairs, which can perfectly fit the stairs and glass, and the installation is more beautiful.
