Home Construction Hardware Glass Spigots Square In-ground Glass Spigot
Core Drill Spigot

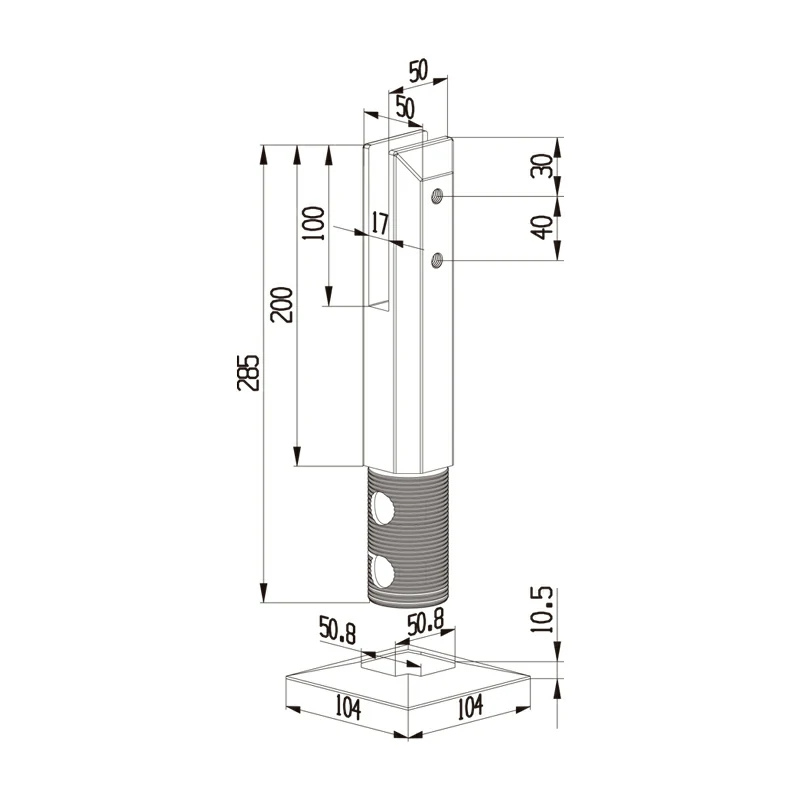

Core Drill Glass Spigot Structure
Core Drill Spigot Core Drill Glass Spigot Structure

Square In-ground Glass Spigot

Part No. LS-ASC

Glass Thickness 12mm
Weight 2.18Kg
Outline Dimension 285mm*104mm*104mm


Application: Swimming pool fence, Garden fence, etc.

Glass Spigot Description

Square in-ground glass spigot is used for 12mm glass, this is a heavy-duty core drill spigot with stronger load-bearing capacity, suitable for environments that require high load-bearing capacity, such as high-rise buildings and swimming pools. Core drill glass spigots are designed to be installed by drilling a hole (core drilling) in the surface where the glass panel will be mounted. They are specifically designed to provide a secure and stable anchor point for glass panels in balustrade systems.

Glass Spigot Specifications

Product Name

Square In-ground Glass Spigot

Outline Dimension


Glass Thickness





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex Stainless Steel 2205, Stainless Steel 304/316


Swimming Pool Fence, Garden Fence, etc

Casting Process

Siica Sol Technics Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Core Drill Glass Spigot Package


Under the premise of ensuring to meet the customer's demand for maximum load bearing, this glass spigot reduces the weight of the product as much as possible in order to reduce the cost. This core drill spigot is suitable for concrete floors and poured concrete floors. Core drilling allows for a clean and precise installation without the need for surface-mounted clamps or brackets, preserving the integrity of the surface material.

Core drill spigots create a seamless and unobtrusive connection between the glass panel and the surface, maintaining a clean and modern aesthetic. The core drill method ensures a secure and durable attachment, capable of supporting the weight of various glass panel thicknesses and styles.

Core Drill Glass Spigot Applications
