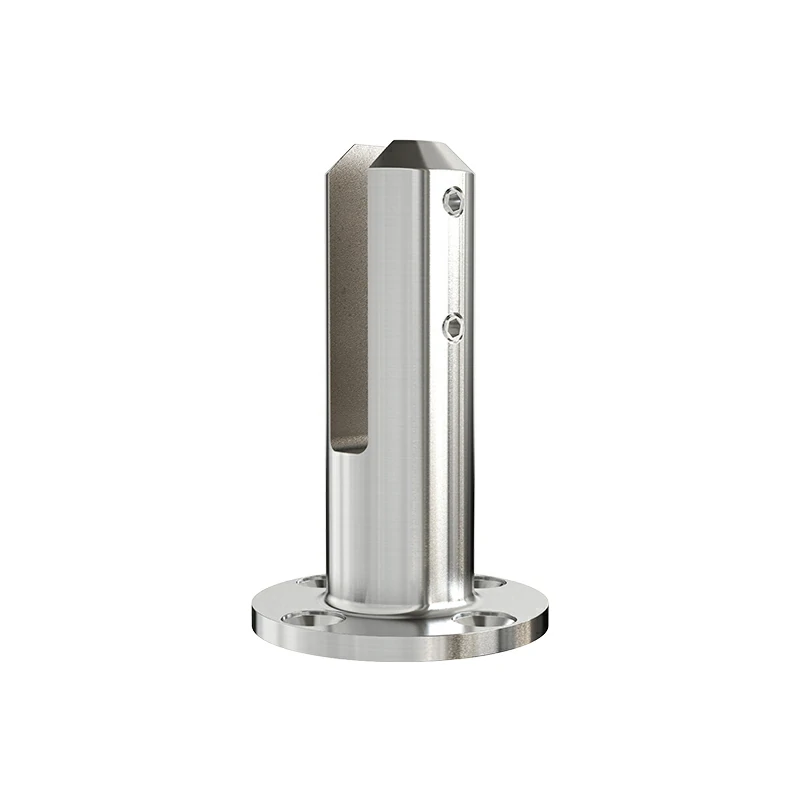

Frameless Glass Spigot

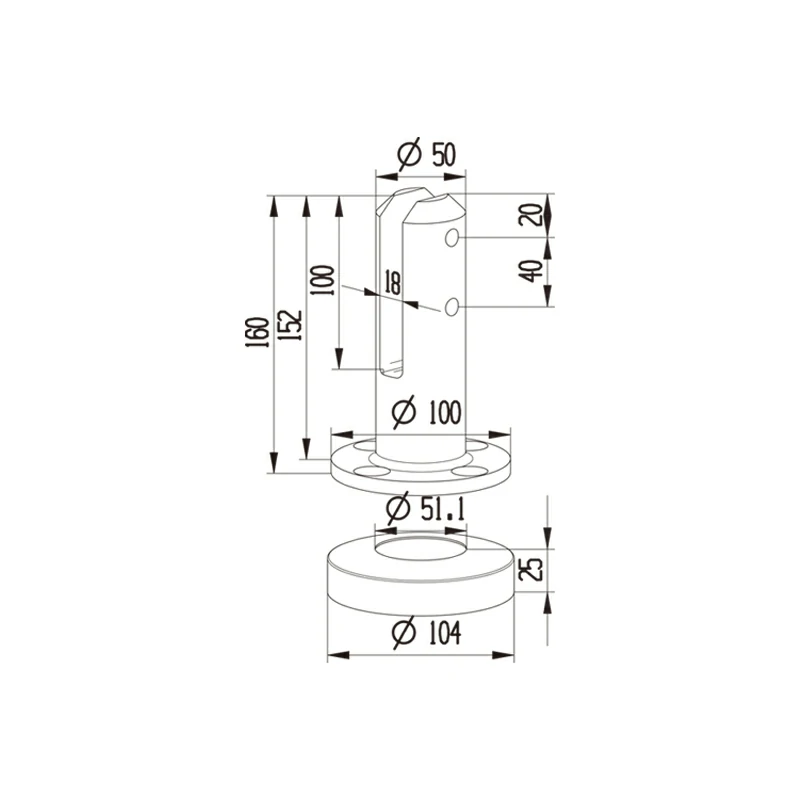

Frameless Glass Spigot Structure
Frameless Glass Spigot Frameless Glass Spigot Structure

Post Standing Glass Spigot

Part No. LS-DRF

Glass Thickness 12-15mm
Weight 1.74Kg
Outline Dimension 160mm*50mm
Material 2205/304/316
Application: Glass railings, Pool fencing, Railings, etc.

Glass Spigot Description

This post standing frameless glass spigot is used for glass 12-15mm and is suitable for glass balustrades, pool fences, railings, etc. Installation is relatively easy, but professional construction is required to ensure the quality of installation and safety in use.

Frameless glass spigot is a type of fitting used in the installation of frameless glass balustrades and fencing. It is designed to secure the glass panels in place without the need for a traditional frame, providing a seamless and modern look. They are available in various designs to accommodate different installation requirements.

Glass Spigot Specifications

Product Name

Post Standing Glass Spigot

Outline Dimension


Glass Thickness





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex Stainless Steel 2205, Stainless Steel 304/316


Glass railings, Pool fencing, Railings, etc.

Casting Process

Siica Sol Technics Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Frameless Glass Spigot Package


This frameless glass spigot is an economical product that reduces the weight of the product as much as possible in order to reduce costs, while ensuring that it meets the maximum load-bearing capacity of the customer's needs.

Glass spigots are designed for straightforward installation using screws, bolts, or other fastening methods, making them suitable for DIY projects as well as professional installations.

Frameless Glass Spigot Application
