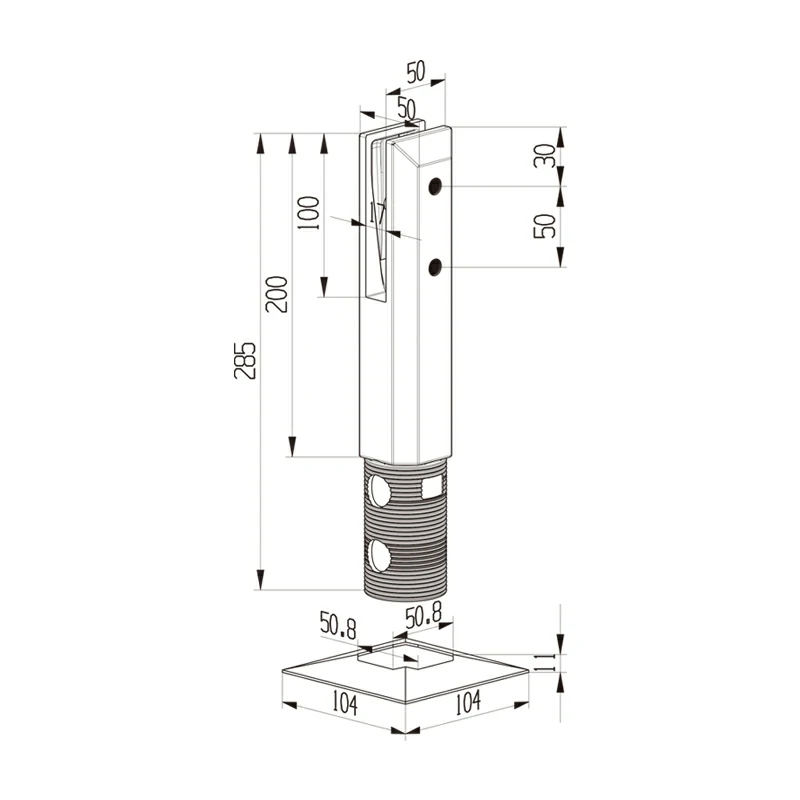

Glass Balustrade Spigots 188sc285 Structure
Glass Balustrade Spigots Glass Balustrade Spigots 188sc285 Structure

Square In-ground Glass Spigot

Part No. 188SC285

Glass Thickness 12mm
Weight 2.11Kg
Outline Dimension 285mm*104mm*104mm


Application: Pool

Glass Spigot Description

This Square In-ground Glass Balustrade Spigot is used for 12mm glass and is suitable for outdoor glass railings, fences, balcony guardrails, swimming pool guardrails, staircase handrails, garden guardrails and so on. Stainless Steel Glass Balustrade Spigots come in various designs to accommodate different installation requirements and aesthetic preferences. They are typically cylindrical or square-shaped posts that are attached to the ground or structure to support the glass panels.

Glass balustrade spigots can be used with a variety of glass panel thicknesses and styles, including tempered glass, laminated glass, and patterned glass. Spigots come in various finishes, such as brushed stainless steel, polished stainless steel, and black, which can complement different decoration styles and enhance the visual appeal of the balustrade system.

Glass Spigot Specifications

Product Name

Square In-ground Glass Spigot

Outline Dimension


Glass Thickness





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex Stainless Steel 2205, Stainless Steel 304/316


Pool/Glass Balustrade

Casting Process

Siica Sol Technics Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Glass Balustrade Spigots Package


These glass spigots are installed by fixing them to the ground or structure using bolts or other fasteners. The glass panels are then placed into the spigots and secured in position, often with the help of rubber gaskets or other fittings to cushion and hold the glass in place.

The glass balustrade spigot has an adjustable function at the mouth of the spigot, and the glass angle can be adjusted if the glass spigot is not installed at the same horizontal line, which is convenient for the workers to install. The glass spigot has excellent load bearing effect and can meet the load bearing requirement of more than 80kg.
