Home Construction Hardware Glass Spigots 180° 2 for 1 Square Glass Spigot
Glass Railing Spigot
Glass Railing Spigot DOSD-90 Structure
Glass Railing Spigot Glass Railing Spigot DOSD-90 Structure

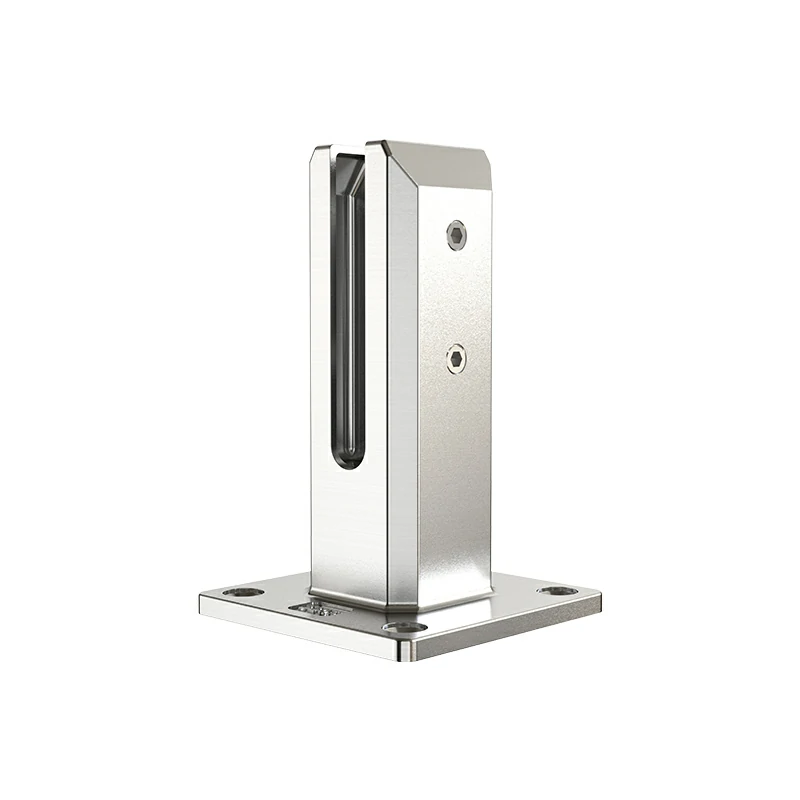

180° 2 for 1 Square Glass Spigot

Part No. DOSD-180

Glass Thickness 12mm
Weight 1.88Kg
Outline Dimension 143mm*94mm*120.5mm



Glass railings, Pool fences, Balustrades, etc.

Glass Spigot Description

180° 2 for 1 glass railing spigot is a specialized hardware component designed to securely attach two glass panels at a 180-degree angle to a vertical surface, such as a wall or post. These glass spigots are commonly used to create corner railings, corner shower enclosures, and other glass structures that require a 180-degree bend.

This 2 for 1 square glass railing spigot is used for 12mm glass. Its design, material, and functionality are tailored to provide a stable and visually appealing solution for installing glass panels at 180-degree angles, enhancing the overall look and functionality of the railing system.

Glass Spigot Specifications

Product Name

180° 2 for 1 Square Glass Spigot

Outline Dimension


Glass Thickness





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex Stainless Steel 2205, Stainless Steel 304/316


Glass Railings, Pool Fences, Balustrades, etc.

Casting Process

Siica Sol Technics Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Glass Railing Spigot Package


This glass railing spigot can be two pieces of glass for articulation, would have needed two glass spigots to support the glass now only need a can be completed, greatly reducing the installation cost!

Glass spigots come in various finishes, such as brushed stainless steel, polished stainless steel, and black, which can complement different décor styles and enhance the visual appeal of the angled glass panels.

Ensure the spigots allow for precise angle adjustment to achieve the desired 180-degree bend for the glass panels.
