2205 Glass Spigot

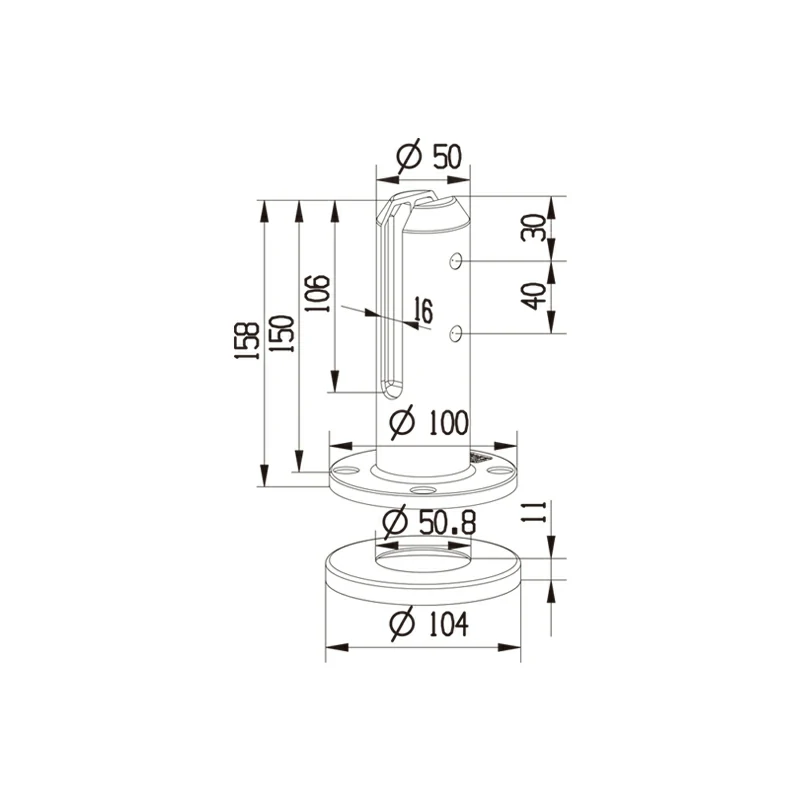

2205 Glass Spigot Structure
2205 Glass Spigot 2205 Glass Spigot Structure

Post Standing Glass Spigot

Part No. LS-BRF

Glass Thickness 12mm
Weight 0.98Kg
Outline Dimension 158mm*50mm


Application: Glass railings, Pool fencing, Railings, etc.

Glass Spigot Description

This post standing duplex 2205 glass spigot is used for the following 12mm glass. They are commonly used in glass railing systems for balconies, staircases, terraces, and other architectural applications where a transparent and modern railing solution is desired.

The spigot is designed to be fixed to a post or directly to the ground, providing a stable base for glass panels in a glass railing system. These glass spigots are made of duplex stainless steel 2205, a high-quality material known for its excellent corrosion resistance, strength, and durability.

Glass Spigot Specifications

Product Name

Post Standing Glass Spigot

Outline Dimension


Glass Thickness





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex Stainless Steel 2205, Stainless Steel 304/316


Glass Railings, Pool Fencing, Railings, etc.

Casting Process

Siica Sol Technics Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Duplex stainless steel 2205 Glass Spigot Package


Post standing duplex 2205 glass spigots are versatile and can be used with a variety of glass panel thicknesses and types. They can be used with tempered, laminated, and patterned glass, as well as glass panels of various thicknesses.

This 2205 glass spigot is an economical product that reduces the weight of the product as much as possible in order to reduce costs, while ensuring that it meets the maximum load-bearing capacity of the customer's needs. The spigot is usually installed by attaching it to a post or a base plate using appropriate fasteners. The glass panel is then inserted into the spigot and secured in place, creating a seamless and secure connection.

2205 Glass Spigot Application
