Glass Clamp Description
This No Hole Flat Bottom Fish Mouth Stainless Steel Glass Clamp is suitable for 8-10 mm glass, used for glass display cabinets, bathroom partitions, fixed brackets. Not easy to fall off.
Stainless steel glass clamp is designed to secure glass panels in place, typically in a frameless manner, by clamping onto the edges of the glass. These clamps are providing durability and resistance to corrosion, making them suitable for outdoor and marine environments. They are available in various designs to accommodate different glass thicknesses and installation requirements.
Glass Clamp Specifications
|
Product Name |
No Hole Flat Bottom Fish Mouth Clamp |
|

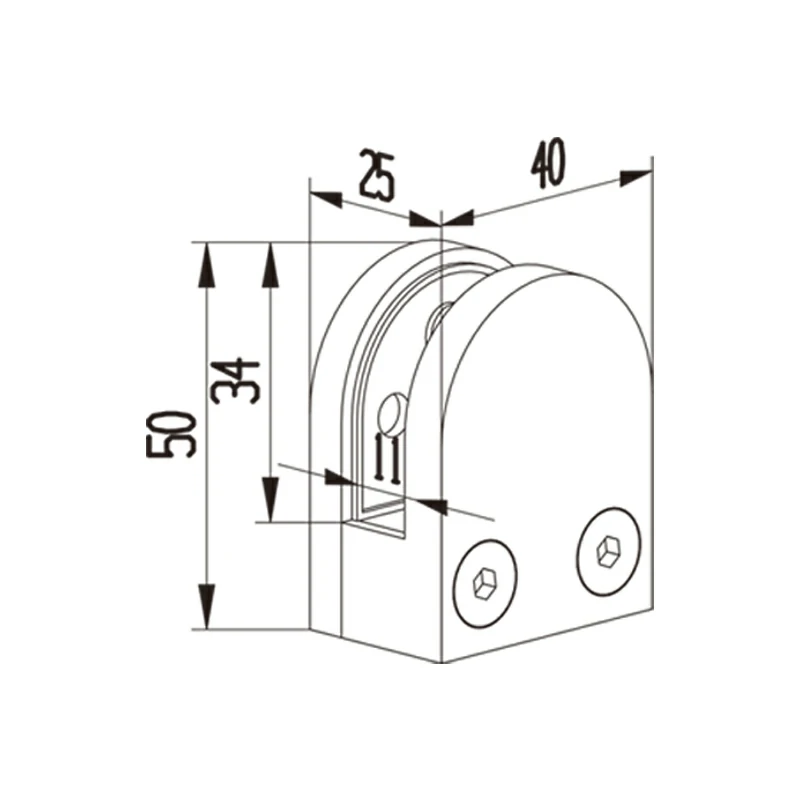

Outline Dimension |
40mm*25mm*50mm |
|
Glass Thickness |
8-10mm |
|
Weight |
0.20Kg |
|
Finish |
Classic Satin/Mirror (We can do anti-fingerprint if necessary.) |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Glass Display Case, Glass Fence, Glass Staircase |
|
Casting Process |
Siica Sol Technics With Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
The glass clamps is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable. Clamps come in various finishes, such as polished stainless steel, brushed stainless steel.
The design is simple and beautiful, and will not damage the overall feeling of the building. Installation is relatively simple, but requires professional construction to ensure the quality of installation and safety.
