Stainless Glass Clamp

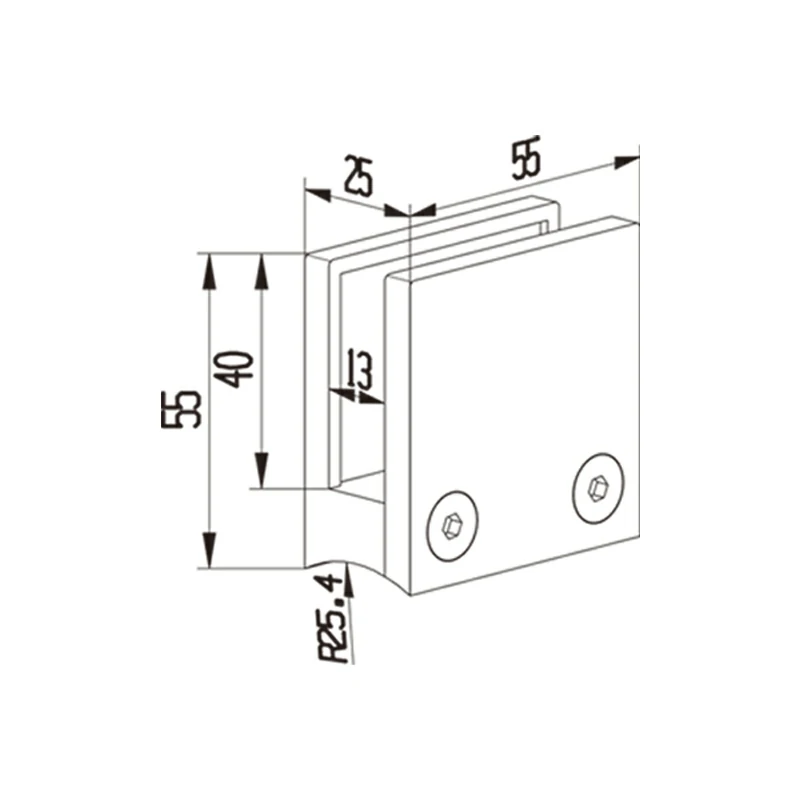

Stainless Glass Clamp Structure
Stainless Glass Clamp Stainless Glass Clamp Structure

No Hole Square Clamp with Curved Bottom

Part No. L6016-H

Glass Thickness 8-12mm
Weight 0.27Kg
Outline Dimension 55mm*25mm*55mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

This No Hole Square Stainless Glass Clamp with Curved Bottom is suitable for 8-12mm glass, used for glass display cabinets, bathroom partitions, fixed brackets, stairs.

Stainless glass clamp is designed to firmly hold the glass panel in place while allowing for a clean and minimalistic aesthetic, as it is often installed without the need for additional framing. These clamps come in different designs and sizes to accommodate different glass thicknesses and installation requirements, and they play a crucial role in providing structural support and stability to the glass panels.

Glass Clamp Specifications

Product Name

No Hole Square Clamp with Curved Bottom

Outline Dimension

55mm*25mm*55mm

Glass Thickness

8-12mm

Weight

0.27Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Stainless Glass Clamp Package

Note

The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable. Good load bearing, not easy to rust.
The clean lines and minimalist design of stainless steel clamps complement contemporary architecture and modern decoration. These clamps suitable for both indoor and outdoor use.

Stainless Glass Clamp Application
