D Clamp for Glass

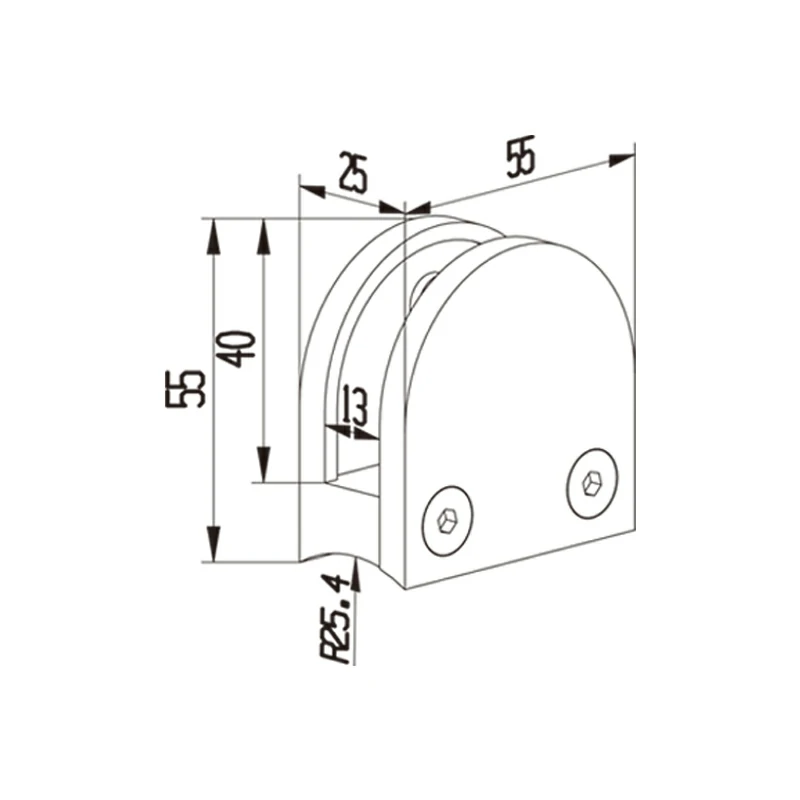

D Clamp for Glass Structure
D Clamp for Glass D Clamp for Glass Structure

No Hole Curved Bottom Fish Mouth Clamp

Part No. L6015-H

Glass Thickness 8-12mm
Weight 0.24Kg
Outline Dimension 55mm*25mm*55mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

This No Hole Curved Bottom Fish Mouth D Clamp is suitable for 8-12mm glass, used for glass display cabinets, bathroom partitions, fixed brackets, stairs.

D clamp for glass is typically made of high-quality stainless steel and has a D-shaped body with two flat surfaces that clamp onto the glass. They are available in a variety of sizes to accommodate different thicknesses of glass.

Glass Clamp Specifications

Product Name

No Hole Curved Bottom Fish Mouth Clamp

Outline Dimension

55mm*25mm*55mm

Glass Thickness

8-12mm

Weight

0.24Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable. The design is simple and beautiful, and will not damage the overall feeling of the building.

Relatively easy to install and remove, even for large or heavy glass panels.

Offers a clean and unobtrusive appearance, blending seamlessly with the overall design.

Versatile and can be used in various applications with glass panels.

D Clamp for Glass Application
