12mm Glass Clamp

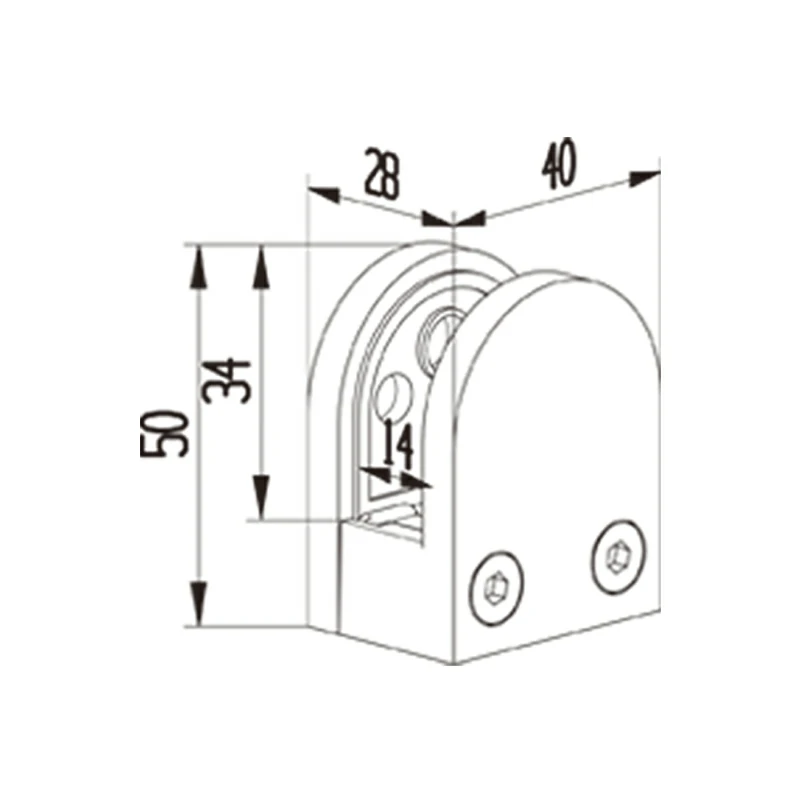

12mm Glass Clamp Structure
12mm Glass Clamp 12mm Glass Clamp Structure

No Hole Flat Bottom Fish Mouth Clamp

Part No. L6021

Glass Thickness 12mm
Weight 0.22Kg
Outline Dimension 40mm*28mm*50mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

This No Hole Flat Bottom Fish Mouth Glass Clamp is suitable for 12mm glass, used for glass display cabinets, bathroom partitions, fixed brackets, stairs. Good load bearing, not easy to rust.

The 12mm glass clamp is engineered to firmly hold the thicker glass panel in place while providing structural support and stability. It is designed to accommodate the specific thickness of the glass and is available in different designs and finishes to suit various aesthetic preferences and installation requirements. These clamps play a crucial role in ensuring the safety and stability of the glass panels in their respective applications.

Glass Clamp Specifications

Product Name

No Hole Flat Bottom Fish Mouth Clamp

Outline Dimension

40mm*28mm*50mm

Glass Thickness

12mm

Weight

0.22Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

12mm Glass Clamp Package

Note

High-grade stainless steel ensures these glass clamps are built to last, resisting rust, corrosion, and harsh weather conditions, making them suitable for both indoor and outdoor use, even in areas with high humidity or extreme temperatures.

Compared to clamps for thinner glass, 12mm versions offer a stronger grip and increased load-bearing capacity, specifically designed to handle the weight and potential stresses of thicker glass panels.

12mm Glass Clamp Application
