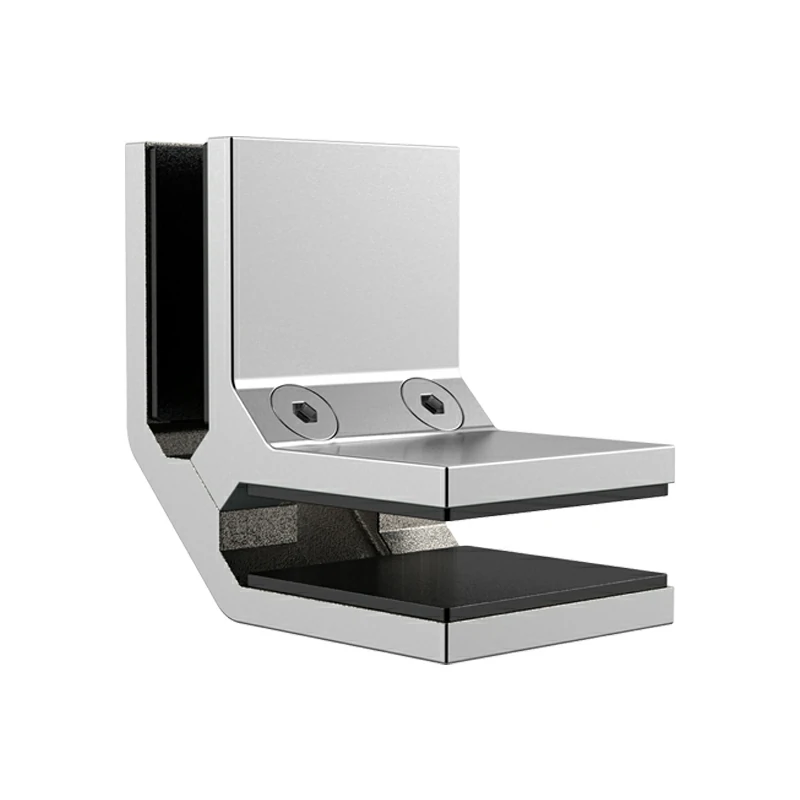

Double Sided Glass Clamp

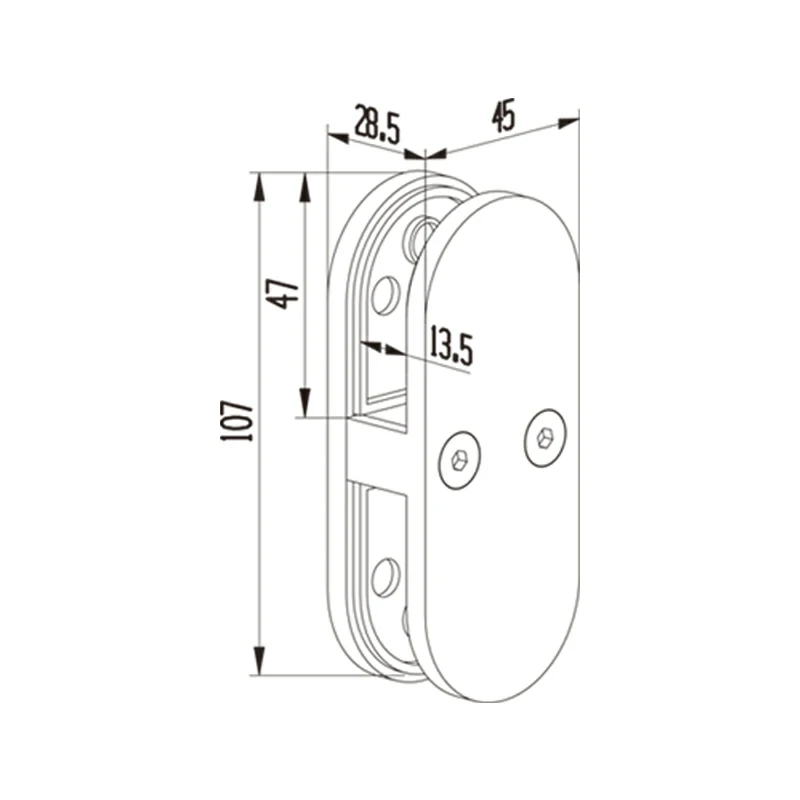

Double Sided Glass Clamp Structure
Double Sided Glass Clamp Double Sided Glass Clamp Structure

No-hole Double-ended Fish Mouth Clamp

Part No. DCR180

Glass Thickness 12mm
Weight 0.42Kg
Outline Dimension 107mm*45mm*28.5mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

The No-hole Fish Mouth Double Sided Glass Clamp is suitable for 12mm glass, used for glass display cabinets, bathroom partitions, fixed brackets, stair articulation glass. Fixed strong, not easy to fall off not easy to rust.

Double-sided glass clamp is designed to hold two adjacent glass panels in place, typically at a right angle to each other. The clamp design features jaws on both sides to securely grasp each glass panel, ensuring a firm and stable hold. The double-sided design allows for the attachment of both glass panels from either side, providing a clean and seamless look with minimal visible hardware.

Glass Clamp Specifications

Product Name

No-hole Double-ended Fish Mouth Clamp

Outline Dimension

107mm*45mm*28.5mm

Glass Thickness

12mm

Weight

0.42Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Double Sided Glass Clamp Package

Note

The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable.

Available in various styles and sizes to accommodate different glass thicknesses and mounting requirements. Some double-sided clamps feature adjustable jaws, allowing for fine-tuning the grip and accommodating minor variations in glass thickness or alignment.

The design is simple and beautiful, installation is relatively simple.
