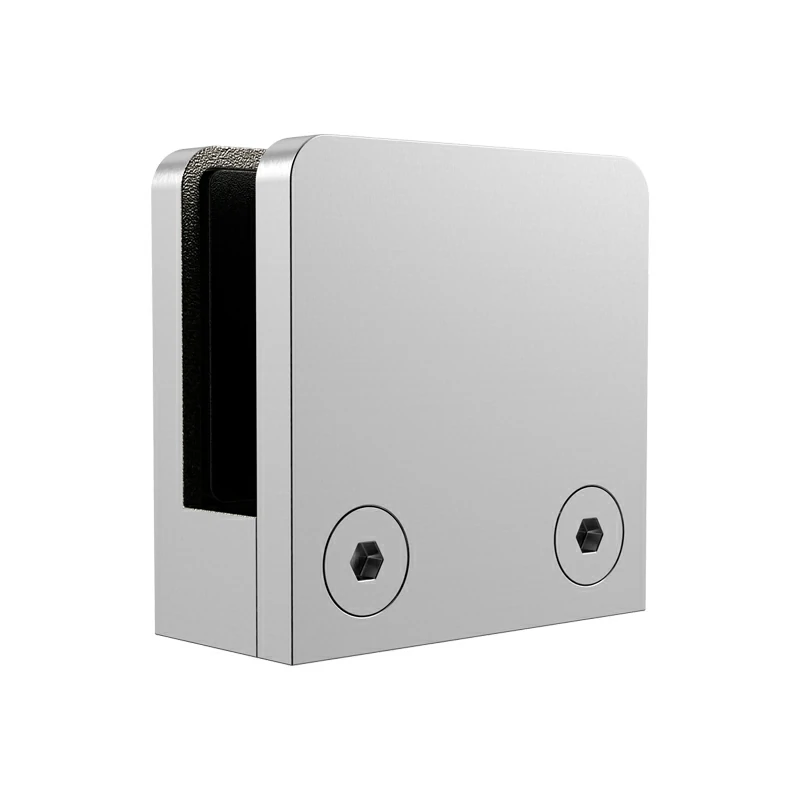

Square Glass Clamp

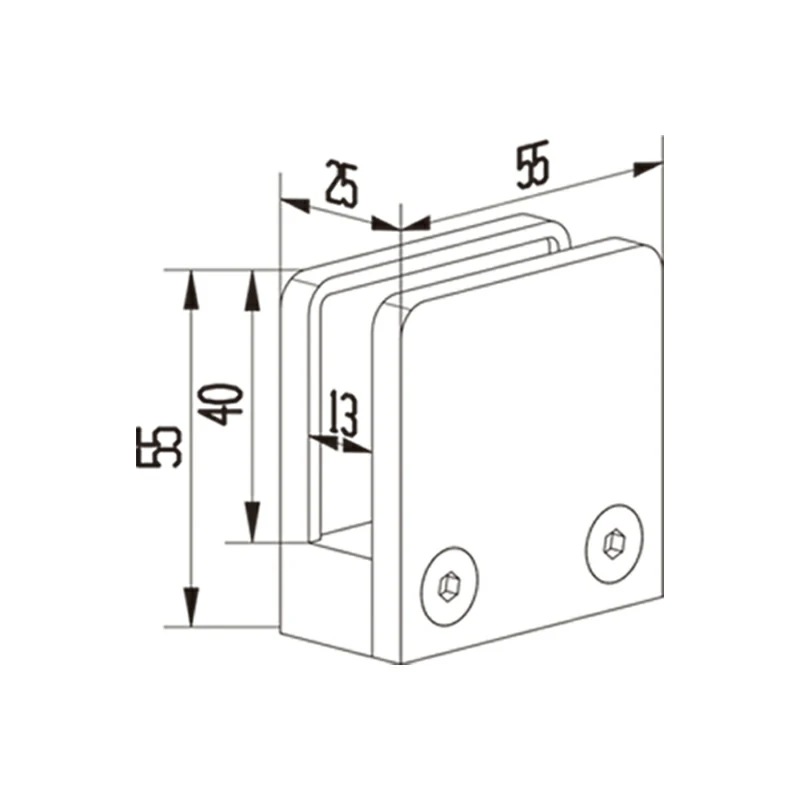

Square Glass Clamp Structure
Square Glass Clamp Square Glass Clamp Structure

Flat Bottom Square Glass Clamp

Part No. L6016-P

Glass Thickness 8-12mm
Weight 0.26Kg
Outline Dimension 55mm*25mm*55mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

This Flat Bottom Square Glass Clamp is suitable for 8-12mm glass, used for glass display cabinets, bathroom partitions, fixed brackets, stairs. Good load bearing, not easy to rust.

Square glass clamp has a square-shaped body with two flat surfaces that clamp onto the glass. These glass clamps are available in a variety of sizes to accommodate different thicknesses of glass.

Glass Clamp Specifications

Product Name

Flat Bottom Square Clamp

Outline Dimension

55mm*25mm*55mm

Glass Thickness

8-12mm

Weight

0.26Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Square Glass Clamp Package

Note

The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable.
Square glass clamps are specifically engineered to provide a secure and stable connection while allowing for a clean and modern aesthetic for glass installations. They are relatively easy to install and remove, even for large or heavy glass panels.

Square Glass Clamp Application
