Fish Mouth Glass Clamp

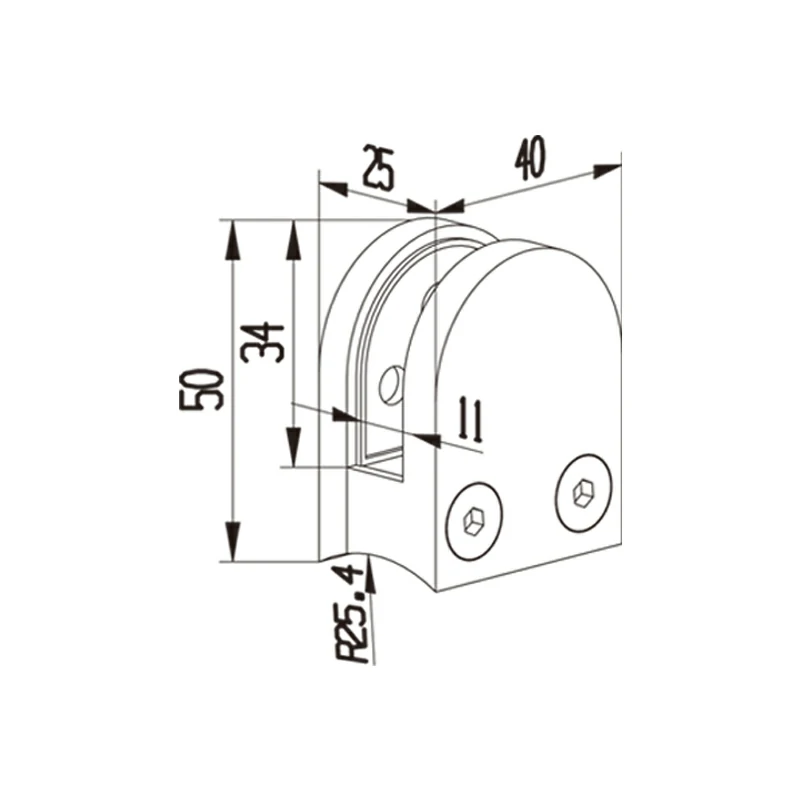

Fish Mouth Glass Clamp Structure
Fish Mouth Glass Clamp Fish Mouth Glass Clamp Structure

No Hole Curved Bottom Fish Mouth Clamp

Part No. L6003

Glass Thickness 8-10mm
Weight 0.20Kg
Outline Dimension 40mm*25mm*50mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

This No Hole Curved Bottom Fish Mouth Glass Clamp is suitable for 8-10 mm glass, used for glass display cabinets, bathroom partitions, fixed brackets. Not easy to fall off.

Fish mouth glass clamp is designed to secure glass panels in place by clamping onto the edges of the glass using a mechanism that resembles a fish's mouth. This shape allows for easy insertion and removal of the glass panel without compromising its stability or security. Fish mouth glass clamps are available in various designs to accommodate different glass thicknesses and installation requirements, and they contribute to a sleek and modern aesthetic in architectural designs.

Glass Clamp Specifications

Product Name

No Hole Curved Bottom Fish Mouth Clamp

Outline Dimension

40mm*25mm*50mm

Glass Thickness

8-10mm

Weight

0.20Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable.
Fish mouth glass clamps provide a firm and reliable grip on glass panels, preventing them from wobbling, loosening, or detaching from the mounting surface, ensuring the stability and safety of the glass structure. The fish mouth design facilitates simple installation and removal of glass panels, allowing for adjustments or maintenance without the need for complex disassembly.
