180 Degree Glass Clamp

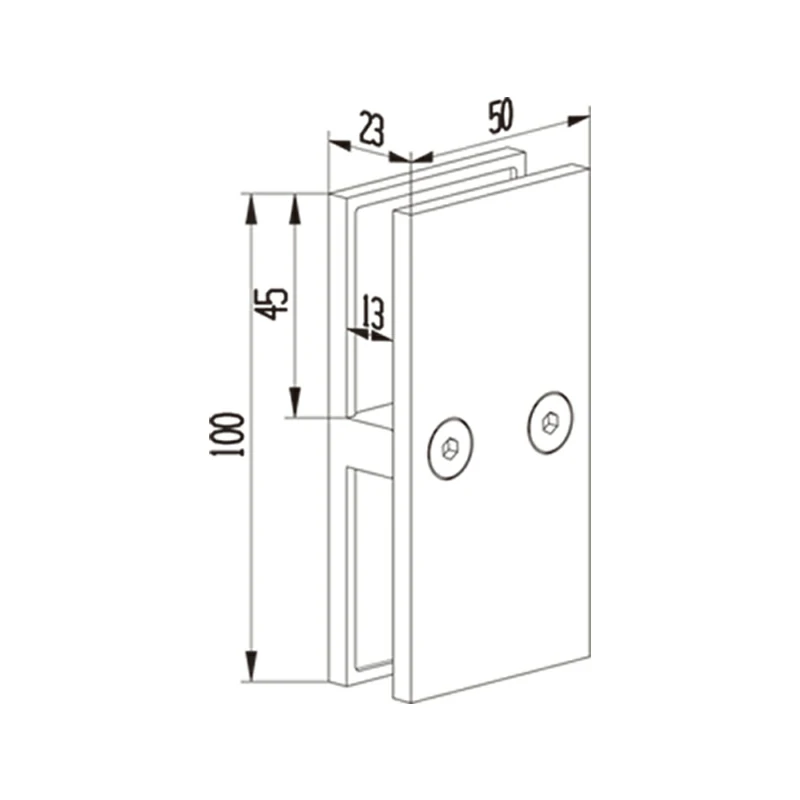

180 Degree Glass Clamp Structure
180 Degree Glass Clamp 180 Degree Glass Clamp Structure

No-hole 180° Double-ended Square Head Clamp

Part No. L6018

Glass Thickness 10mm
Weight 0.39Kg
Outline Dimension 50mm*23mm*100mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

No-Hole Double-Ended Square Head 180 Degree Glass Clamp is suitable for 10mm glass. It used for bathroom partitions, fixed brackets, and stairs articulating glass to securely hold and support glass panels at a 180-degree angle without the need for drilled holes in the glass. This specific glass clamp features a double-ended square head design, fixed strong, not easy to fall off not easy to rust.

180-degree glass clamp is designed to hold two glass panels at a 180-degree angle, creating a seamless and clear corner without the need for a frame or bulky hardware. It allows for the secure attachment of glass panels while maintaining an unobstructed view and a sleek, minimalist appearance. These glass clamps are available in various designs and finishes to complement different design aesthetics and accommodate different glass thicknesses and installation requirements.

Glass Clamp Specifications

Product Name

No-hole 180° Double-ended Square Head Clamp

Outline Dimension

50mm*23mm*100mm

Glass Thickness

10mm

Weight

0.39Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

No-hole double-ended square head 180 degree glass clamp Package

Note

The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable.

To use a 180 degree glass clamp, simply place the clamp over the two glass panels and tighten the screws. The clamp will hold the two panels together at the desired angle.

The design is simple and beautiful, and installation is relatively simple, but requires professional construction to ensure the quality of installation and safety.
