Home Construction Hardware Glass Clamps Adjustable Square Head Clamp with No Cutout
Adjustable Glass Clamp

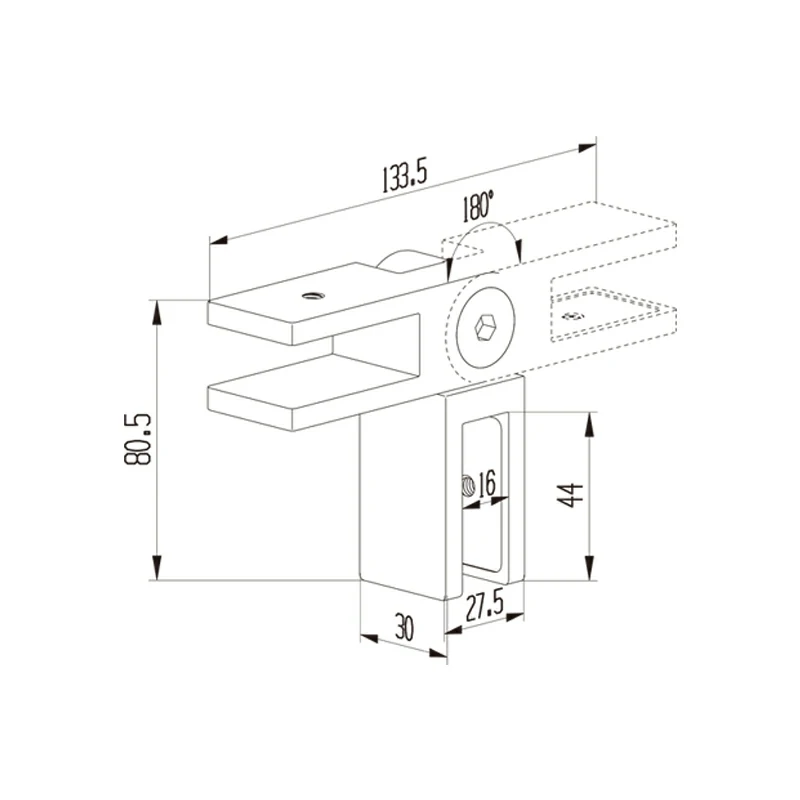

Adjustable Glass Clamp Structure
Adjustable Glass Clamp Adjustable Glass Clamp Structure

Adjustable Square Head Clamp with No Cutout

Part No. C-S180A

Glass Thickness 12mm
Weight 0.46Kg
Outline Dimension 133.5mm*30mm*27.5mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

The Square Head Adjustable Glass Clamp with no cutout is suitable for 12mm glass, used for glass display cabinets, bathroom partitions, fixed brackets, stair articulation glass. Fixed strong, not easy to fall off not easy to rust. Adjustable articulation angle 1-90°.

Adjustable glass clamp is a hardware component designed to securely hold glass panels in place while allowing for flexibility in their positioning and angle. These clamps are adjustable to accommodate different thicknesses of glass and often have padded jaws to prevent damage to the glass surface. Their versatility, adjustability, and range of styles make them ideal for various applications.

Glass Clamp Specifications

Product Name

Adjustable Square Head Clamp with No Cutout

Outline Dimension

133.5mm*30mm*27.5mm

Glass Thickness

12mm

Weight

0.46Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Adjustable Glass Clamp Package

Note

The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable.
The adjustability feature allows for compensation for minor inconsistencies in the mounting surface, ensuring a secure and level installation.
Available in polished, brushed, satin, and other finishes to complement different design styles.
The design is simple and beautiful, installation is relatively simple.
