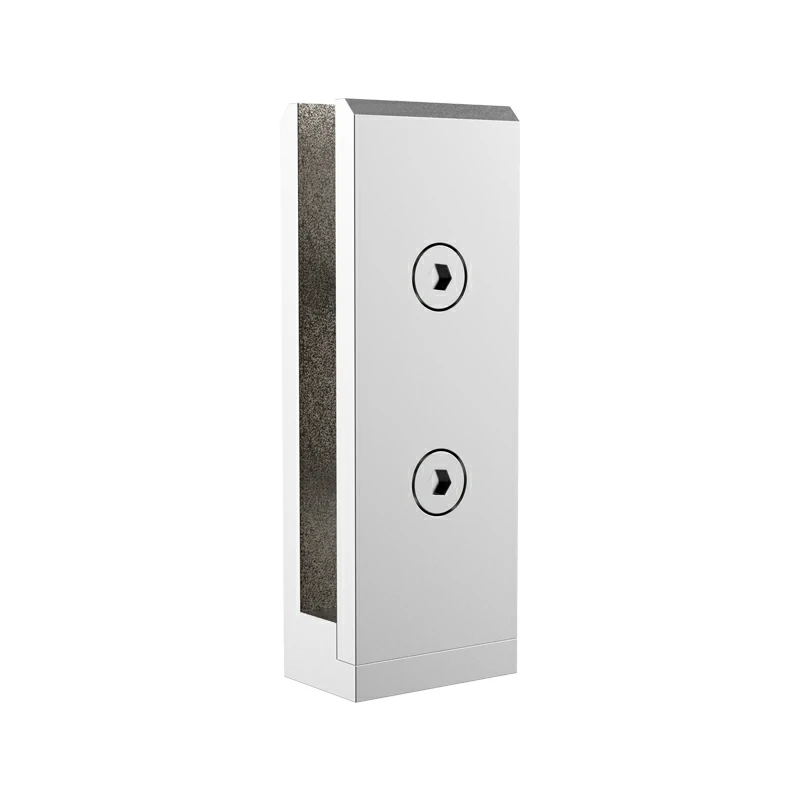

Wall Mount Glass Clamp

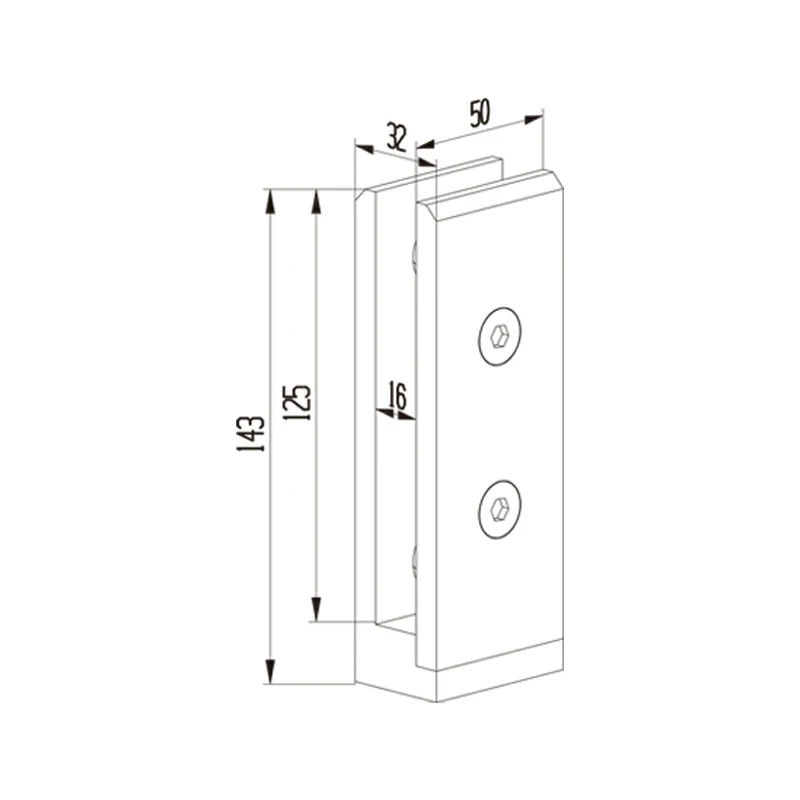

Wall Mount Glass Clamp Structure
Wall Mount Glass Clamp Wall Mount Glass Clamp Structure

Wall Mounted Square Head Clamp

Part No. C-SF-01

Glass Thickness 10-14mm
Weight 1.00Kg
Outline Dimension 143mm*50mm*32mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

This Square Head Wall Mount Glass Clamp is suitable for 10-14mm glass, used for glass display cabinets, bathroom partitions, fixed brackets. Fixed firmly, not easy to fall, not easy to rust.

Glass Clamp Specifications

Product Name

Wall Mounted Square Head Clamp

Outline Dimension

143mm*50mm*32mm

Glass Thickness

10-14mm

Weight

1.00Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable.
It is characterized by corrosion resistance, abrasion resistance and durability.
The design is simple and beautiful, and will not damage the overall feeling of the building.
Installation is relatively simple, but requires professional construction to ensure the quality of installation and safety.
The wall mount glass clamp is easy to install, improves installation efficiency and enhances connection strength.
