Home Construction Hardware Glass Clamps No-hole F-type Square Head Clamp
Shower Glass Clamp

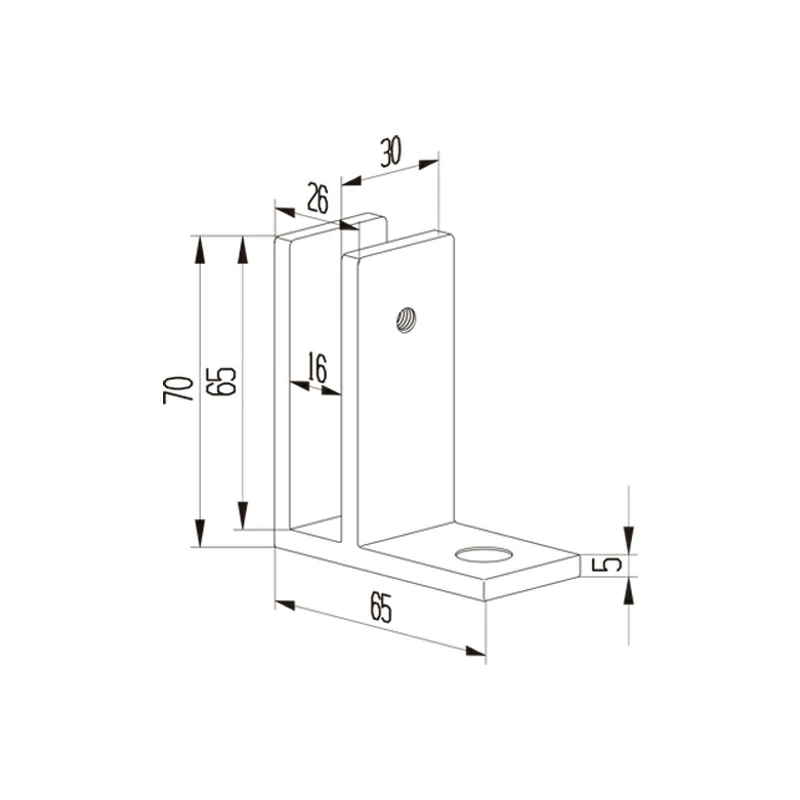

Shower Glass Clamp Structure
Shower Glass Clamp Shower Glass Clamp Structure

No-hole F-type Square Head Clamp

Part No. C-WF

Glass Thickness 12mm
Weight 0.22Kg
Outline Dimension 65mm*70mm*26mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

The No-hole F-type Square Head Shower Glass Clamp is suitable for 12mm glass, used for glass display cabinets, bathroom partitions, fixed brackets, stair articulation glass. Fixed strong, not easy to fall off not easy to rust.

Shower glass clamp is designed to secure the glass panels of the shower enclosure in place, typically attaching them to the wall or other structural elements. These clamps are made of stainless steel, and come in various designs to accommodate different types of glass and installation requirements. They play a crucial role in providing stability and support to the glass panels, contributing to the overall safety and functionality of the shower enclosure.

Glass Clamp Specifications

Product Name

No-hole F-type Square Head Clamp

Outline Dimension

65mm*70mm*26mm

Glass Thickness

12mm

Weight

0.22Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Shower Glass Clamp Package

Note

The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable.

Available in various styles, offered in various finishes like brushed, polished, and satin, complementing diverse bathroom styles and decoration.

The design is simple and beautiful, easy to install, improves installation efficiency and enhances connection strength.
