F Glass Clamp

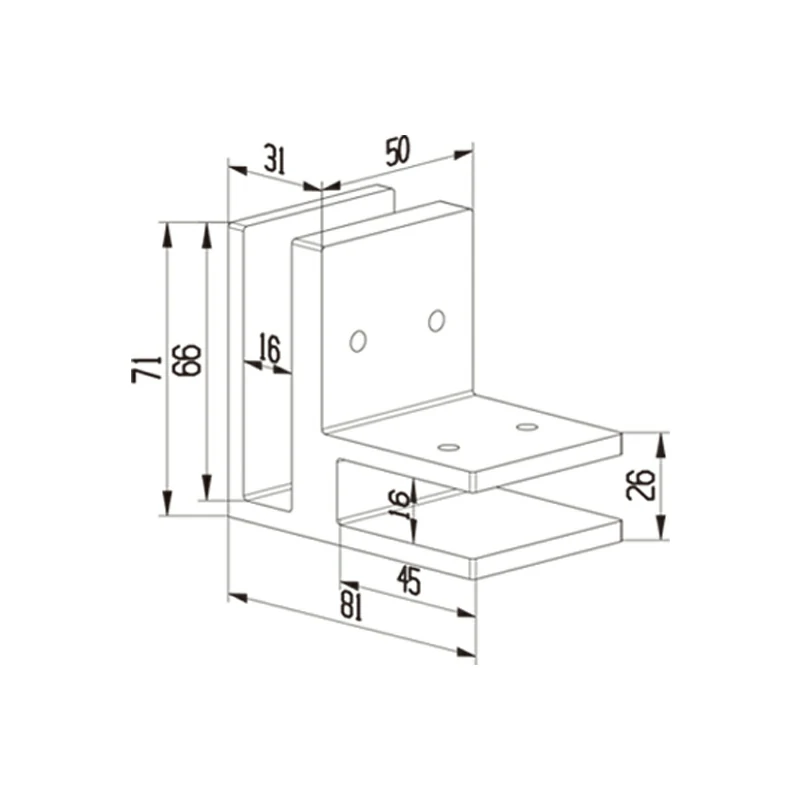

F Glass Clamp Structure
F Glass Clamp F Glass Clamp Structure

No-hole Double-opening Square Head F-type Clamp

Part No. C-S90F

Glass Thickness 12mm
Weight 0.59Kg
Outline Dimension 70mm*70mm*26.5mm
Material 2205/304/316

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

The No-hole double-opening square head F glass clamp is suitable for 12mm glass, commonly used in various architectural and construction projects, such as glass balustrades, railing systems, glass partitions, and frameless glass installations.

F Glass Clamp provides several advantages and makes it a versatile solution for various applications. These glass clamps has two openings or slots, allowing it to accommodate two glass panels simultaneously. The square head design helps distribute the clamping force evenly, minimizing the risk of glass breakage or damage. "F-Type" design offers a strong and secure connection between the glass panels, enhancing their structural integrity.

Glass Clamp Specifications

Product Name

No-hole F-type Double-opening Square Head Clamp

Outline Dimension


Glass Thickness





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex stainless steel 2205, Stainless steel 304/316


Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



F glass clamps are compatible with various glass panel thicknesses and mounting configurations, making them suitable for diverse projects. They can be mounted on walls, posts, floors, or other surfaces, offering flexibility for different installations. Features a simple and user-friendly design for easy installation.

The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable.
