Home Glass Railing Glass Clamps No-hole Double-opening Square Head 135° Clamp

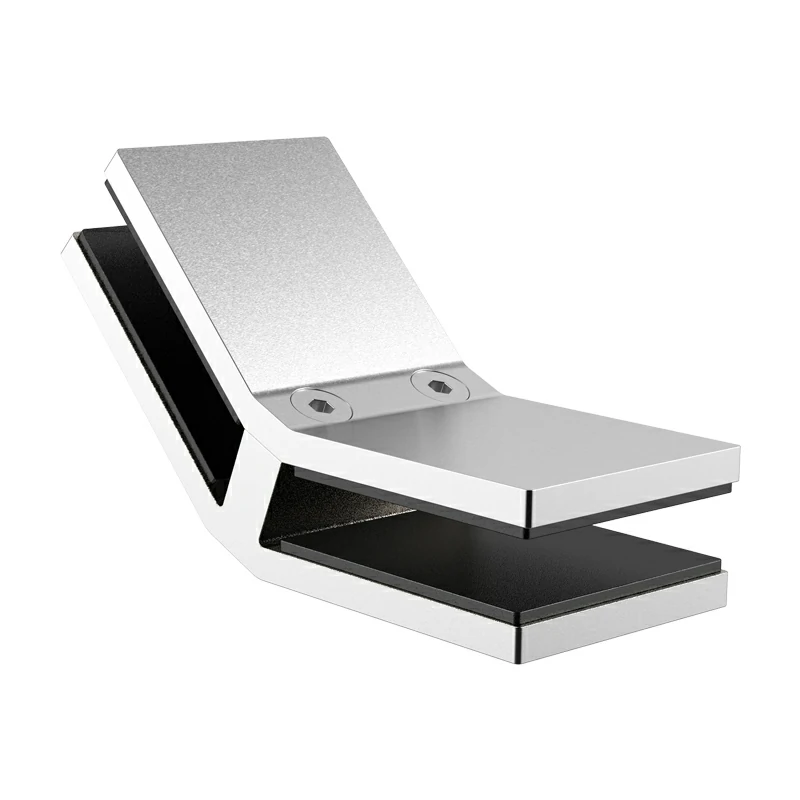

135 Degree Glass Clamp

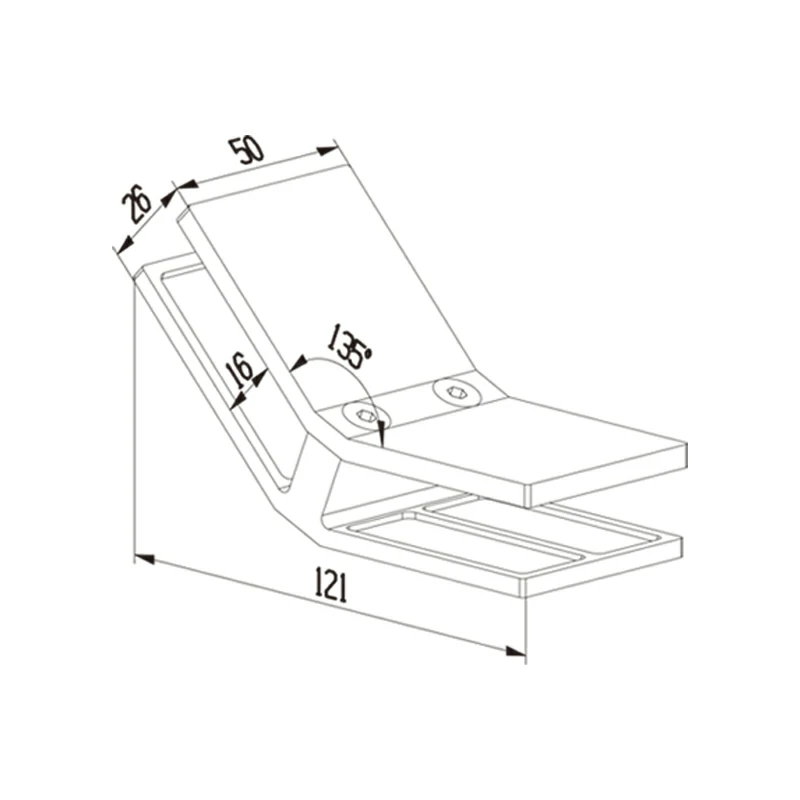

135 Degree Glass Clamp Structure
135 Degree Glass Clamp 135 Degree Glass Clamp Structure

No-hole Double-opening Square Head 135° Clamp

Part No. C-S135

Glass Thickness 12mm
Weight 0.59Kg
Outline Dimension 121mm*50mm*26mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

The No-hole double-opening square head 135 degree glass clamp is suitable for 12mm glass, commonly used in glass installations, such as balustrades, partitions, or other architectural applications where a specific angle and a clean, hole-free appearance are desired. Thees glass clamps are essential for constructing corners and turns in frameless glass railing systems, maintaining their sleek and uninterrupted appearance.

135-degree glass clamp is a type of clamp specifically designed to hold together two glass panels at a 135-degree angle. These clamps are commonly used where two glass panels need to be joined at a 135-degree angle. The "double-opening" feature suggests that this glass clamp has two openings or slots where the glass panels can be inserted or secured. They are designed to securely hold the glass panels in place while providing a clean and minimalistic look to the overall structure.

Glass Clamp Specifications

Product Name

No-hole 135° Double-opening Square Head Clamp

Outline Dimension

121mm*50mm*26mm

Glass Thickness

12mm

Weight

0.59Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

No-hole double-opening square head 135 degree glass clamp

Note

The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable.

Clamps come in various finishes like brushed, polished, and satin, allowing them to blend seamlessly with different design styles and decoration.

The design is simple and beautiful, and will not damage the overall feeling of the building. This type of clamp often utilizes a clamping mechanism that securely holds the glass without the need for traditional drilled holes. Installation is relatively simple, but requires professional construction to ensure the quality of installation and safety.
