316 Stainless Steel Glass Clamps

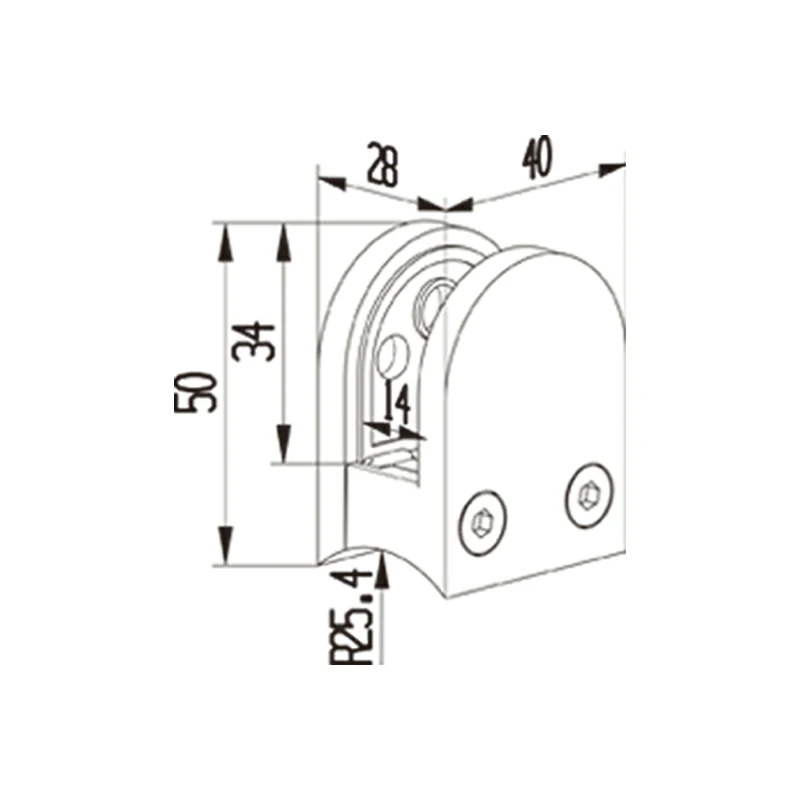

316 Stainless Steel Glass Clamps Structure
316 Stainless Steel Glass Clamps 316 Stainless Steel Glass Clamps Structure

No Hole Curved Bottom Fish Mouth Clamp

Part No. L6023

Glass Thickness 12mm
Weight 0.21Kg
Outline Dimension 40mm*28mm*50mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

316 stainless steel glass clamps are designed to firmly hold the glass panels in place while providing a sleek and durable mounting solution. They are available in different designs and finishes to accommodate various glass thicknesses and aesthetic preferences, and they play a crucial role in ensuring the structural integrity and safety of the glass installations.

This No Hole Curved Bottom Fish Mouth Glass Clamp is suitable for 12mm glass, used for glass display cabinets, bathroom partitions, fixed brackets, stairs. Good load bearing, not easy to rust.

Glass Clamp Specifications

Product Name

No Hole Curved Bottom Fish Mouth Clamp

Outline Dimension

40mm*28mm*50mm

Glass Thickness

12mm

Weight

0.21Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

The 316 stainless steel glass clamps is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable.

The design is simple and beautiful, and will not damage the overall feeling of the building. Installation is relatively simple, but requires professional construction to ensure the quality of installation and safety.

Regularly inspect the clamps for any signs of wear or damage, especially in high-traffic areas or exposed environments.

316 Stainless Steel Glass Clamps Application
