D Glass Clamp

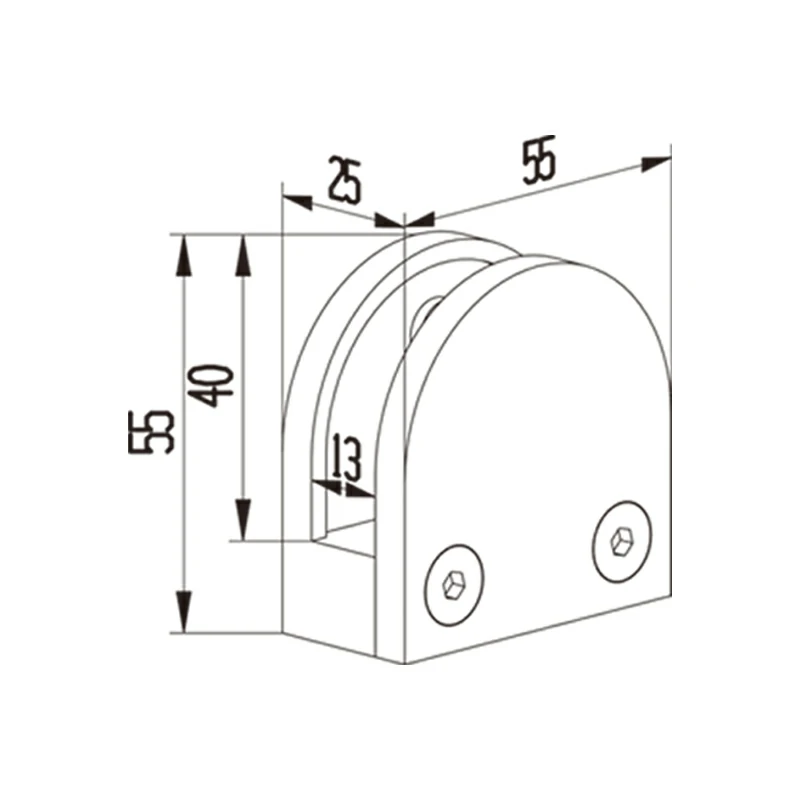

D Glass Clamp Structure
D Glass Clamp D Glass Clamp Structure

No Hole Flat Bottom Fish Mouth Clamp

Part No. L6015-P

Glass Thickness 8-12mm
Weight 0.26Kg
Outline Dimension 55mm*25mm*55mm
Material 2205/304/316

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

The No Hole Flat Bottom Fish Mouth D Glass Clamp eliminates the need for drilling holes in the glass panel. This feature reduces the risk of glass breakage during installation and provides a clean and minimalist appearance in the glass railing system. The flat bottom and fish mouth design of the D glass clamp offers a secure and stable grip on the glass panel. The flat bottom provides even support and contact area, while the fish mouth shape enhances the clamping force to hold the glass firmly in place.

This D Glass Clamp is suitable for 8-12mm glass, they are available in a variety of sizes, finishes to accommodate different thicknesses of glass. These glass clamps are suitable for both commercial and residential settings, providing a secure and visually appealing way to install glass panels in railing systems while maintaining safety and durability.

Glass Clamp Specifications

Product Name

No Hole Flat Bottom Fish Mouth Clamp

Outline Dimension


Glass Thickness





Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror


Duplex stainless steel 2205, Stainless steel 304/316


Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process


Australian Standard Test/Patent




Annual Output


Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Stainless Steel D Glass Clamp Package


The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable. The design is simple and beautiful, and will not damage the overall feeling of the building.

The stainless steel no hole flat bottom fish mouth D glass clamp is designed for easy installation on glass railing systems. The clamp can be adjusted and tightened to securely hold the glass panel in place without the need for complex drilling processes.

D Glass Clamp Application
