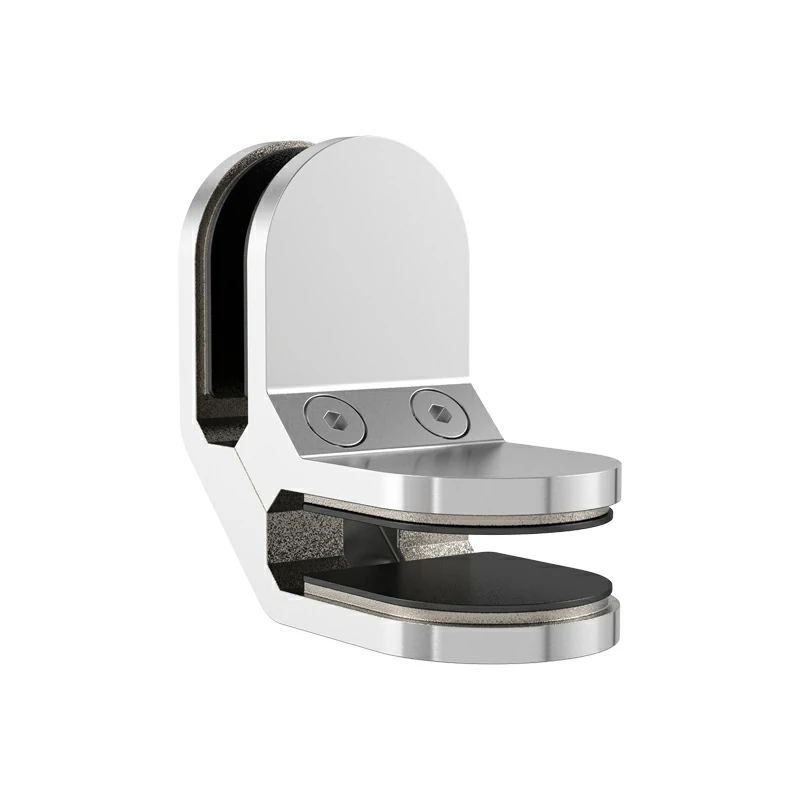

Glass Corner Clamp

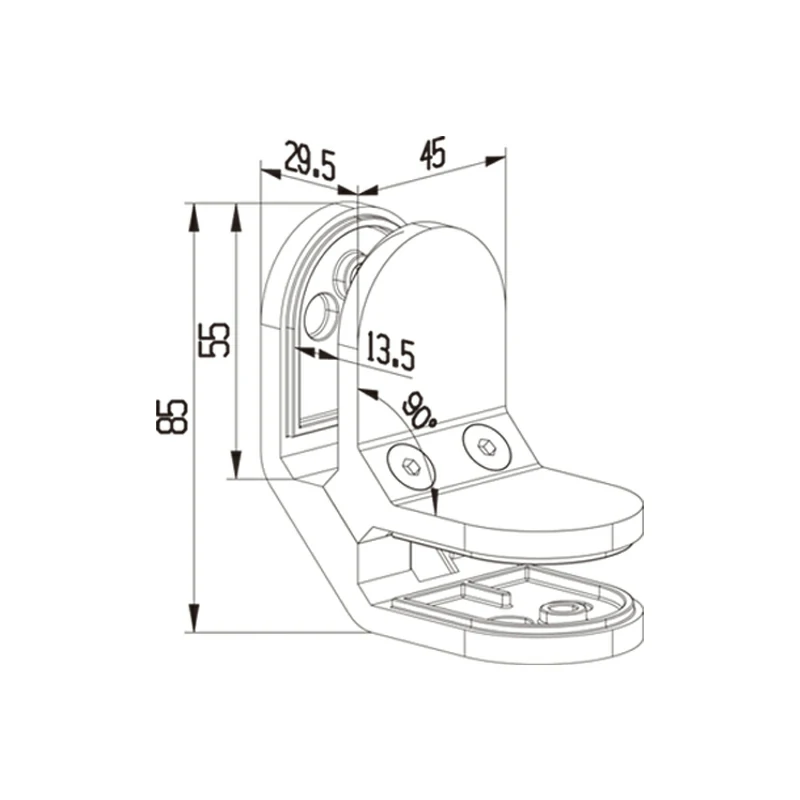

Glass Corner Clamp Structure
Glass Corner Clamp Glass Corner Clamp Structure

No-opening Hole 90° Double-opening Fish Mouth Clamp

Part No. DCR90

Glass Thickness 12mm
Weight 0.58Kg
Outline Dimension 85mm*45mm*29.5mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

The No-opening hole 90° double-opening fish mouth glass corner clamp is suitable for 12mm glass, used for glass display cabinets, bathroom partitions, fixed brackets, stair articulation glass. Fixed strong, not easy to fall off not easy to rust.

Glass Clamp Specifications

Product Name

No-opening Hole 90° Double-opening Fish Mouth Clamp

Outline Dimension

85mm*45mm*29.5mm

Glass Thickness

12mm

Weight

0.58Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable.
It is characterized by corrosion resistance, abrasion resistance and durability.
The design is simple and beautiful, and will not damage the overall feeling of the building.
Installation is relatively simple, but requires professional construction to ensure the quality of installation and safety.
The double-opening fish mouth glass corner clamp is easy to install, improves installation efficiency and enhances connection strength.
