Glass Clamp Description
No-hole 180° double-ended square head Glass Door Clamp is suitable for 12mm glass, used for glass display cabinets, bathroom partitions, fixed brackets, stair articulation glass. This clamp features a square head with two ends that can be adjusted up to 180 degrees, allowing for easy installation and alignment of the glass door panel without the need for drilling holes in the glass.
The clamp is made of high-quality stainless steel, this glass door clamp is rust-resistant, fixed strong, not easy to fall off, and suitable for both indoor and outdoor use. It provides a secure and stable connection between the glass door panel and the supporting frame, ensuring safety and stability. No-hole 180° double-ended square head Glass Clamps come in various designs and configurations to accommodate different types of glass and installation requirements.
Glass Clamp Specifications
|
Product Name |
No-hole 180° Double-ended Square Head Clamp |
|

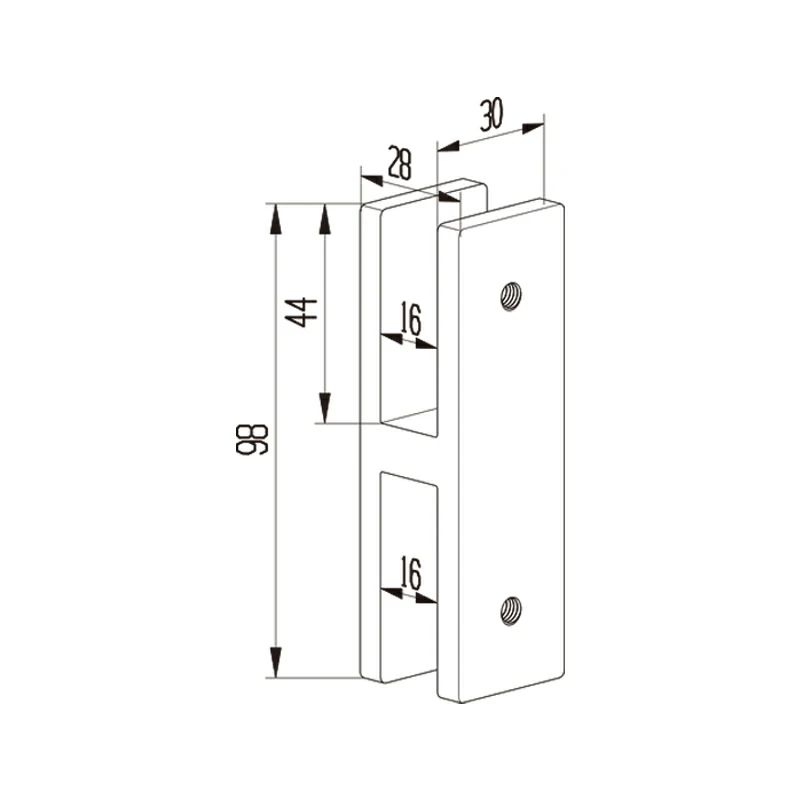

Outline Dimension |
98mm*30mm*28mm |
|
Glass Thickness |
12mm |
|
Weight |
0.33Kg |
|
Finish |
Classic Satin/Mirror (We can do anti-fingerprint if necessary.) |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Glass Display Case, Glass Fence, Glass Staircase |
|
Casting Process |
Siica Sol Technics With Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
The glass clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable.
Offered in diverse finishes like brushed, polished, and satin, complementing diverse interior styles and decoration.
The design is simple and beautiful, and will not damage the overall feeling of the building. Installation is relatively simple, improves installation efficiency and enhances connection strength.
