Round Glass Clamp

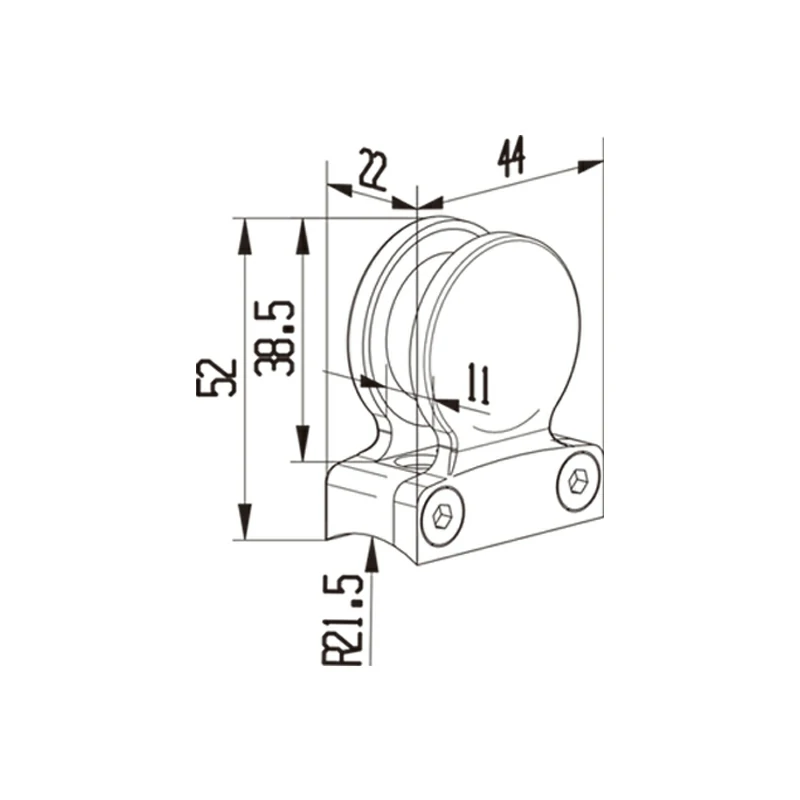

Round Glass Clamp Structure
Round Glass Clamp Round Glass Clamp Structure

No Hole Round Curved Bottom Fish Mouth Clamp

Part No. L6007

Glass Thickness 8-10mm
Weight 0.16Kg
Outline Dimension 44mm*22mm*52mm
Material 2205/304/316
Application:

Glass Display Case, Glass Fence, Glass Staircase

Glass Clamp Description

This No Hole Curved Bottom Fish Mouth Round Glass Clamp is suitable for 8-10mm glass, used for glass display cabinets, bathroom partitions, fixed brackets, stairs. Good load bearing, not easy to rust.

Round glass clamp is designed to securely attach glass panels to various surfaces, offering exceptional durability, corrosion resistance, and strength, making them suitable for both indoor and outdoor applications. The round shape of the clamp provides a smooth and aesthetically pleasing appearance, complementing various décor styles and harmonizing with the surrounding architecture or design elements.

Glass Clamp Specifications

Product Name

No Hole Round Curved Bottom Fish Mouth Clamp

Outline Dimension

44mm*22mm*52mm

Glass Thickness

8-10mm

Weight

0.16Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey

(We can do anti-fingerprint if necessary.)
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass Display Case, Glass Fence, Glass Staircase

Casting Process

Siica Sol Technics With Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

The galss clamp is made of high-strength stainless steel metal material, which is corrosion-resistant, abrasion-resistant and durable.

The design is simple and beautiful, and will not damage the overall feeling of the building. Installation is relatively simple, but requires professional construction to ensure the quality of installation and safety.

Round glass clamps can be used with a wide range of glass panel thicknesses and styles, allowing for customization and design flexibility. They come in various finishes, such as polished stainless steel, brushed stainless steel, and black.

Round Glass Clamp Application
