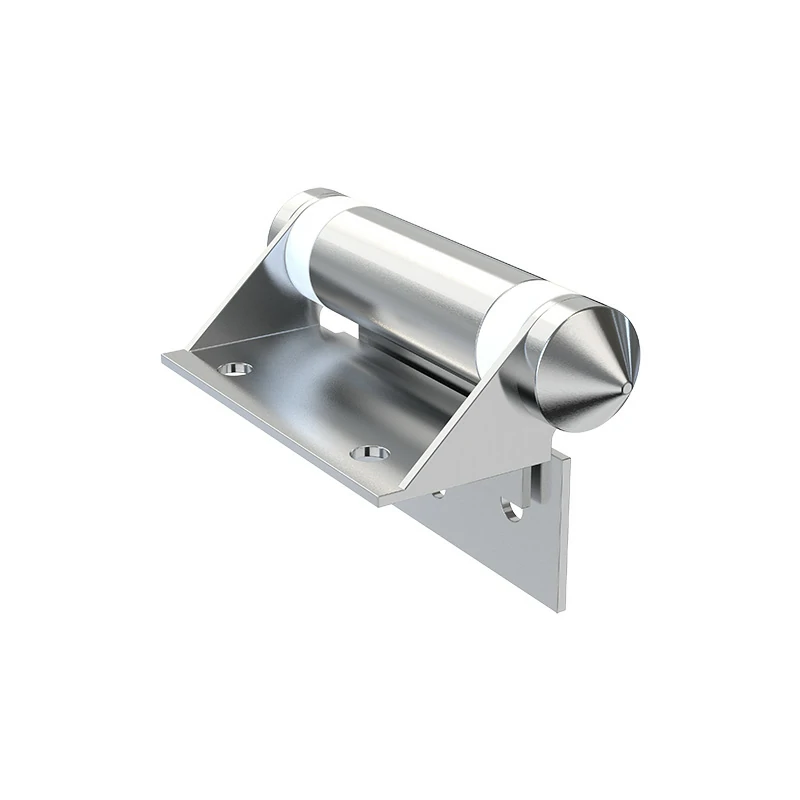

Fence Spring Hinge Description
The fence spring hinge is designed to connect a glass panel to a wall, creating a frameless and modern look. Self-closing mechanisms help prevent accidental entry into the pool area. The fence spring hinge is engineered to work with glass panels, typically ranging from 8-12mm in thickness.
These spring hinges are made from high-quality stainless steel, which is highly resistant to corrosion from pool chemicals, weather, and other environmental factors. This ensures long-lasting performance.
Fence Spring Hinge Specifications
|
Product Name |
Fence Spring Hinge |
|
Glass Thickness |
8-12mm |
|
Weight |
0.25Kg |
|
Finish |
Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey Anti-conductive Black/White Transparent Satin/Mirror |
|
Material |
Duplex stainless steel 2205, Stainless steel 304/316 |
|
Application |
Glass enclosure doors, bathroom glass doors, hotels, offices |
|
Casting Process |
Silica Sol Technics with Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Weeks |
|
Delivery Time |
4--5 Weeks |
Package Specification
Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.
Note
Ensure compatibility with the thickness of your glass panel, and it matches the construction of the door frame and door glass. Correct installation position will help ensure that the spring hinges work optimally. Check the hinges and glass panels regularly for wear, rust, or damage.
