Stainless Steel Self Closing Glass Pool Gate Hinge

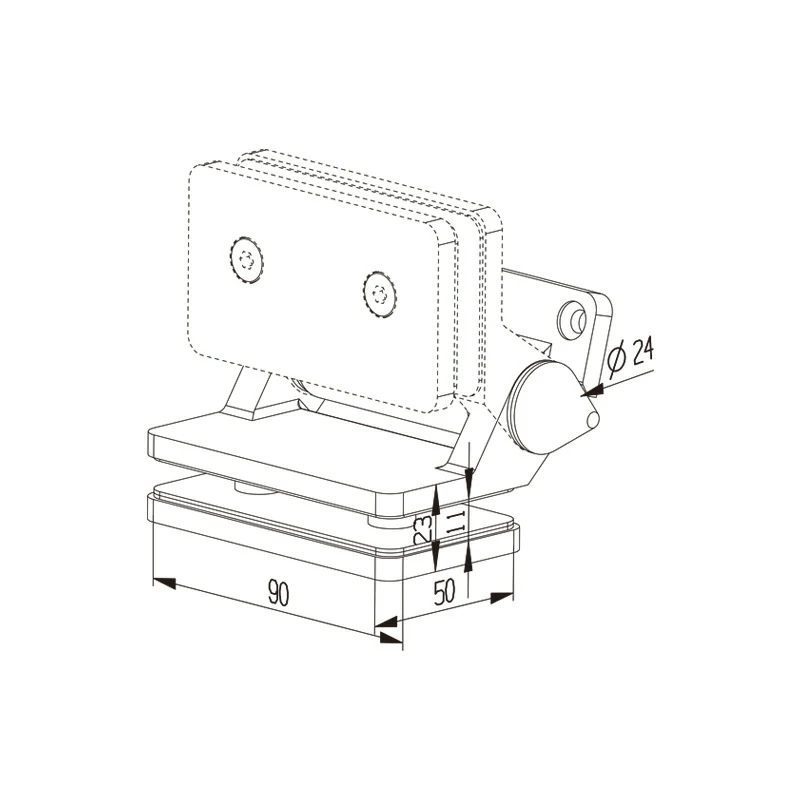

Self Closing Glass Pool Gate Hinge Structure
Stainless Steel Self Closing Glass Pool Gate Hinge Self Closing Glass Pool Gate Hinge Structure

Spring Hinge Glass to Wall

Part No. PGH-W90A

Glass Thickness 8-12mm
Weight 0.93Kg
Material 2205/304/316
Application: Glass enclosure doors, bathroom glass doors, hotels, offices

Spring Hinge Description

The Self Closing Glass Pool Gate Hinge is used in the installation of glass pool fence systems. This hinge is designed to connect a glass pool gate to a wall, post, or another fixed structure at a 90-degree angle. The self-closing feature ensures the gate properly secures the pool area to enhance safety.

The Self Closing Glass Pool Gate Hinge is made from high-quality stainless steel, offering superior strength, durability, and resistance to corrosion and weathering. These spring hinges are available in various finishes to match different design preferences.



Spring Hinge Specifications

Product Name

Spring Hinge

Glass Thickness

8-12mm

Weight

0.93Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass enclosure doors, bathroom glass doors, hotels, offices

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

This spring hinge is used for 8-12mm glass. Ensure the hinge is compatible with the thickness and type of glass used in your pool gate panel. Correct installation position will help ensure that the spring hinges work optimally. The hinge requires minimal maintenance and is easy to clean, making it suitable for outdoor installations. Check the hinges periodically for wear, rust, or damage and replace them if necessary.

Stainless Steel Self Closing Glass Pool Gate Hinge Application
