Home Glass Railing Spring Hinges Spring Hinge Glass to Glass
Frameless Glass Pool Gate Hinge 180 Degre Glass to Glass

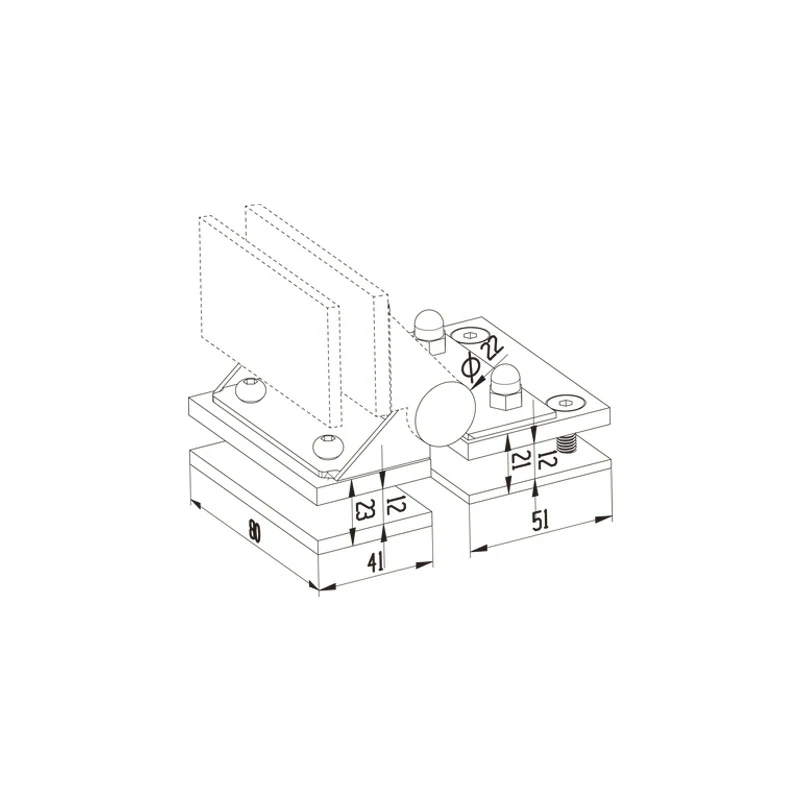

Frameless Glass Pool Gate Hinge Structure
Frameless Glass Pool Gate Hinge 180 Degre Glass to Glass Frameless Glass Pool Gate Hinge Structure

Spring Hinge Glass to Glass

Part No. LS-GH-40

Glass Thickness 8-12mm
Weight 0.86Kg
Material 2205/304/316
Application: Glass enclosure doors, bathroom glass doors, hotels, offices

Spring Hinge Description

The frameless glass pool gate hinge for glass-to-glass connection is designed to provide a secure and functional connection between two glass panels, allowing them to pivot smoothly and swing open or closed. This spring hinge allows two glass panels to be connected at a 180-degree angle, creating a seamless and uninterrupted visual appearance when the gate is closed.

Frameless Glass Pool Gate Hinge with a 180-degree glass-to-glass is made of high-quality stainless steel, which offers excellent durability and resistance to corrosion, making it suitable for outdoor applications like pool gates.



Spring Hinge Specifications

Product Name

Spring Hinge

Glass Thickness

8-12mm

Weight

0.86Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass enclosure doors, bathroom glass doors, hotels, offices

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Stainless Steel glass pool gate hinges require precise alignment and expert installation for optimal safety and functionality. Choose a hinge with a weight rating that can safely support the weight of your glass panels. Ensure the hinge is compatible with the thickness and type of glass used in your pool enclosure. Check the hinges and glass panels periodically for any signs of wear and tear or damage.

180 Degree Frameless Glass Pool Gate Hinge Application
