Home Glass Railing Spring Hinges Spring Hinge Glass to Wall
Stainless Steel Pool Gate Hinge Glass to Wall

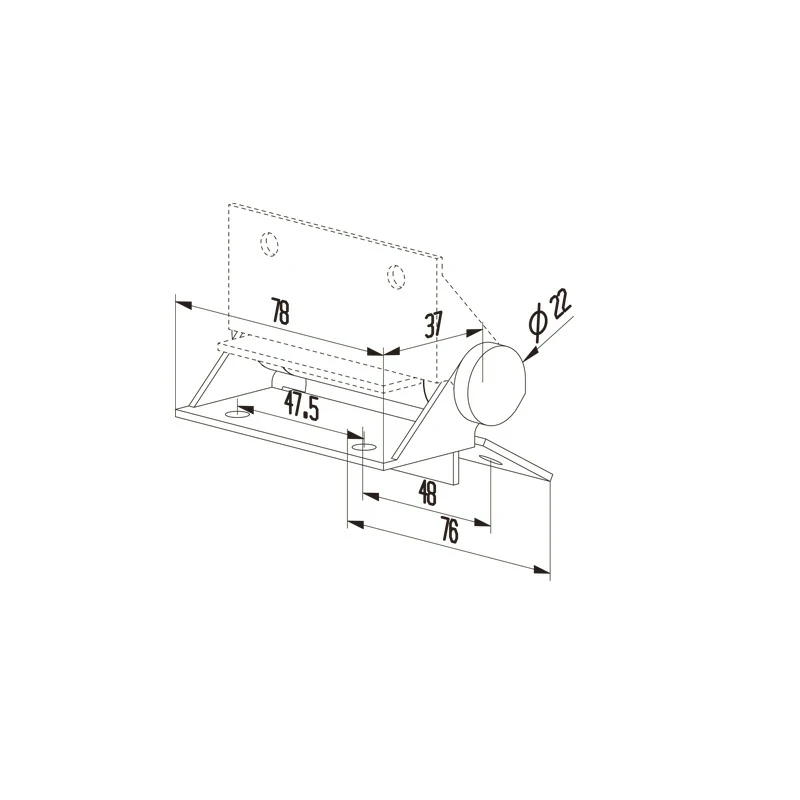

Pool Gate Hinge Structure
Stainless Steel Pool Gate Hinge Glass to Wall Pool Gate Hinge Structure

Spring Hinge Glass to Wall

Part No. LS-GH-41

Glass Thickness 8-12mm
Weight 0.25Kg
Material 2205/304/316
Application: Glass enclosure doors, bathroom glass doors, hotels, offices

Spring Hinge Description

The Stainless Steel Pool Gate Hinge is designed for swiming pool gates where a glass panel swings open and closes against a wall. These spring hinges connects the gate to a stationary structure, such as a wall. Pool gate hinges are designed to withstand outdoor conditions and resist corrosion from constant exposure to water and chemicals.

The Stainless Steel Pool Gate Hinge is ideal for frameless pool gate systems where a tempered glass panel functions as the gate itself. Typical glass thicknesses compatible with these hinges range from 8mm to 10mm.



Spring Hinge Specifications

Product Name

Spring Hinge

Glass Thickness

8-12mm

Weight

0.25Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass enclosure doors, bathroom glass doors, hotels, offices

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Installing this type of hinge might require some DIY skills or professional help, depending on the complexity of your pool gate system. Choose a hinge that can support the weight of your specific glass pool gate panel. Ensure the glass used in the gate is tempered safety glass for added strength and to meet pool safety regulations in your area. Check the hinges and glass panels regularly for wear, rust, or damage.

Stainless Steel Pool Gate Hinge Application
