Glass Pool Fence Gate Hinge Glass to Glass 180 Degree

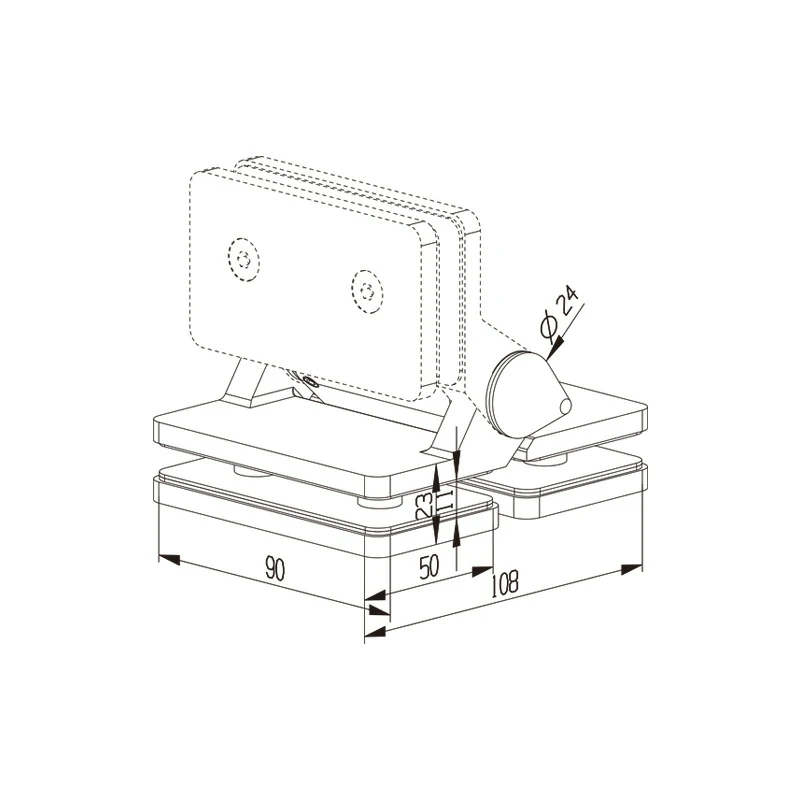

Glass Pool Fence Gate Hinge Structure
Glass Pool Fence Gate Hinge Glass to Glass 180 Degree Glass Pool Fence Gate Hinge Structure

Spring Hinge Glass to Glass

Part No. PGH-180A

Glass Thickness 8-12mm
Weight 1.26Kg
Material 2205/304/316
Application: Glass enclosure doors, bathroom glass doors, hotels, offices

Spring Hinge Description

Glass pool fence gate hinge is used to attach and pivot glass gates in pool fence systems. These hinges enable the gate to swing open and closed smoothly, allowing for easy access to the pool area. The spring hinge is specifically designed to connect two glass panels at a 180-degree angle, allowing for a gate to swing both inward and outward.

The Glass pool fence gate hinge for 8-12mm glass is made of high-quality stainless steel, which provides durability, corrosion resistance, and a polished appearance. This hinge allows the glass gate panel to fully open and close, providing a wider opening compared to some other hinge designs.



Spring Hinge Specifications

Product Name

Spring Hinge

Glass Thickness

8-12mm

Weight

1.26Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass enclosure doors, bathroom glass doors, hotels, offices

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

When selecting glass pool fence gate hinges, it's important to consider the weight and thickness of the glass panels to ensure the hinges can support them properly. Proper alignment of the hinges is essential to ensure smooth operation and prevent stress on the glass panels.

Stainless steel hinges are relatively low maintenance, but periodic cleaning and lubrication may be required to maintain their smooth operation and prevent corrosion.

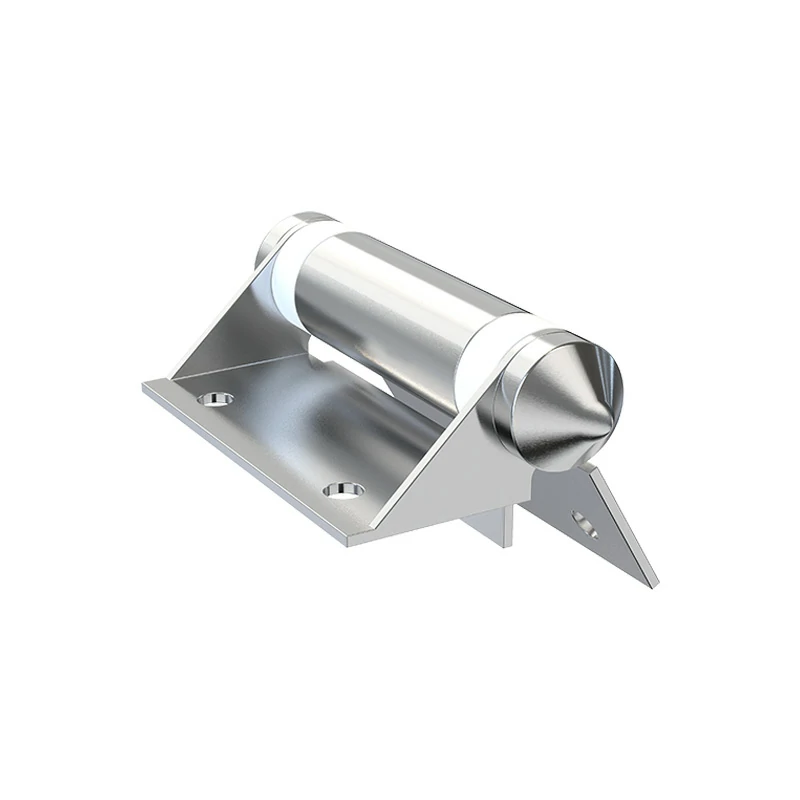

Stainless Steel Glass Pool Fence Gate Hinges Application
