Home Glass Railing Spring Hinges Spring Hinge Glass to Tube
Self Closing Pool Gate Hinge Glass to Tube

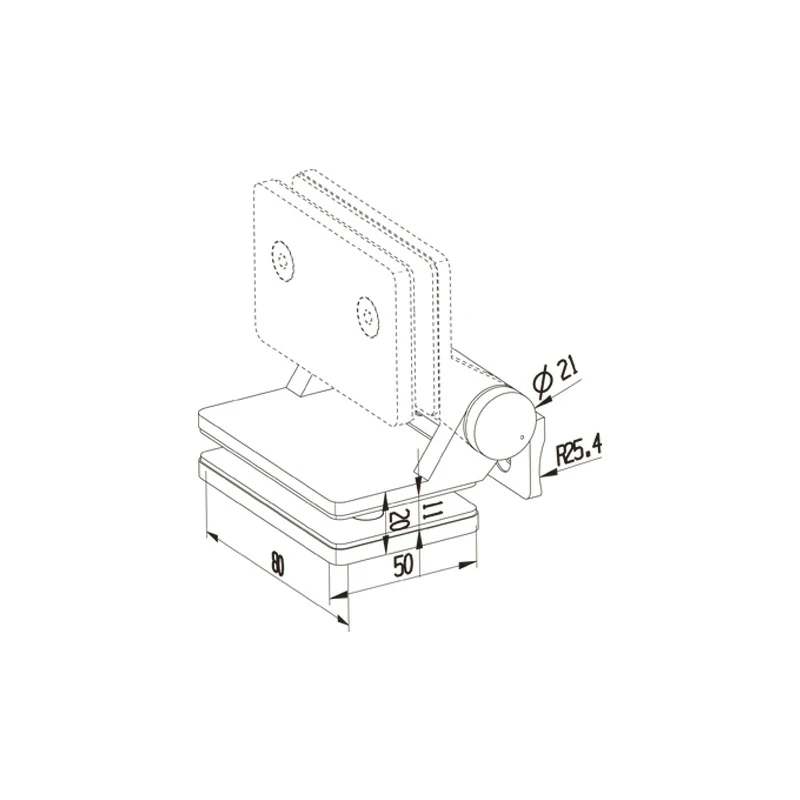

Self Closing Pool Gate Hinge Structure
Self Closing Pool Gate Hinge Glass to Tube Self Closing Pool Gate Hinge Structure

Spring Hinge Glass to Tube

Part No. LS-GP-2

Glass Thickness 8-12mm
Weight 0.61Kg
Material 2205/304/316
Application: Glass enclosure doors, bathroom glass doors, hotels, offices

Spring Hinge Description

Stainless steel self-closing pool gate hinge is designed for frameless pool gate applications where a glass panel hinges onto a metal post (tube). This type of spring hinge is commonly used in pool areas where a glass gate is installed for safety and security. The self-closing feature ensures that the gate automatically closes and latches after it has been opened, helping to prevent unauthorized access to the pool area.

The self-closing pool gate hinge is made of high-quality stainless steel, which provides durability and resistance to corrosion, making it suitable for outdoor and poolside environments. The glass-to-tube design indicates that one side of the hinge is attached to the glass gate panel, while the other side is connected to a tubular post or frame.



Spring Hinge Specifications

Product Name

Spring Hinge

Glass Thickness

8-12mm

Weight

0.61Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass enclosure doors, bathroom glass doors, hotels, offices

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Ensure the hinge is compatible with the thickness and type of glass used in your pool gate panel. Check the glass door self-closing hinges periodically for wear or damage and replace them if necessary. Depending on the weight and size of the glass door, the spring force may need to be adjusted to ensure that the door closes easily and automatically without being too fast or slow. Make sure it matches the construction of the door frame and door glass. Correct installation position will help ensure that the spring hinges work optimally.

Stainless Steel Self Closing Pool Gate Hinge Application
