HomeGlass Railing Spring Hinges Gate Spring Hinge Soft Closing
Stainless steel gate spring hinge soft closing (Glass to Wall).

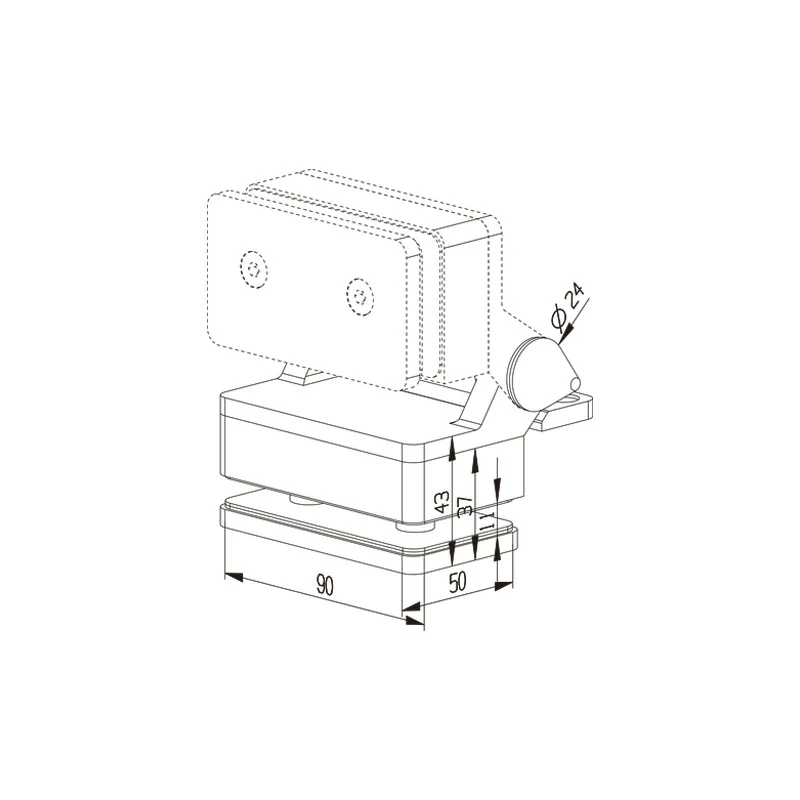

Gate spring hinge soft closing structure
Stainless steel gate spring hinge soft closing (Glass to Wall). Gate spring hinge soft closing structure

Gate Spring Hinge Soft Closing

Part No. PGH-SA

Glass Thickness 8-12mm
Weight 1.19Kg
Material 2205/304/316
Application: Glass enclosure doors, bathroom glass doors, hotels, offices

Gate Spring Hinge Soft Closing Description

Gate spring hinge is used for 8-12mm glass, for glass enclosure doors, bathroom glass doors, hotels, offices and other places. Gate spring hinge soft closing is specifically designed for outdoor fence gates. These hinges typically incorporate a spring mechanism that helps the gate to close automatically after it has been opened. The spring hinge assists in ensuring that the gate remains securely closed, providing convenience and security for the property. The spring hinge helps to ensure that the gate closes properly and securely, even in outdoor environments where wind or other factors might affect the gate's movement.

The gate spring hinge soft closing is constructed from stainless steel, typically grade 304 or 316. These grades offer good to excellent resistance to corrosion and rust, essential for its use in a pool environment.



Gate Spring Hinge Soft Closing Specifications

Product Name

Gate Spring Hinge Soft Closing

Glass Thickness

8-12mm

Weight

1.19Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex stainless steel 2205, Stainless steel 304/316

Application

Glass enclosure doors, bathroom glass doors, hotels, offices

Casting Process

Silica Sol Technics with Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Weeks

Delivery Time

4--5 Weeks

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.



Note

Depending on the weight and size of the glass door, the spring force may need to be adjusted to ensure that the door closes easily and automatically without being too fast or slow. Make sure it matches the construction of the door frame and door glass. Correct installation position will help ensure that the spring hinges work optimally. If your gate includes glass panels, opt for tempered glass for added safety and shatter resistance. Check for rust, wear, or damage and replace the hinges if necessary.

Stainless steel gate spring hinge soft closing application.
