Glass Spigot Description

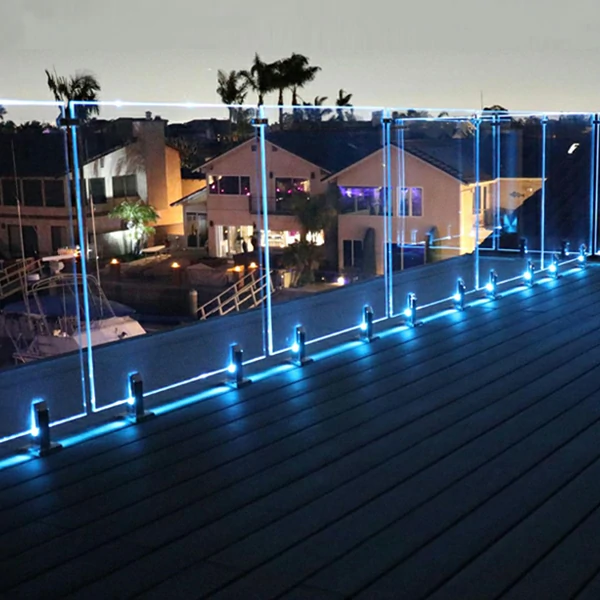

Introducing the LED Frameless Glass Railings (ASD-2-LED) – a seamless integration of elegant design and intelligent lighting technology. The system allows users to control its vibrant LED lighting either via a remote control or a dedicated mobile application. The remote provides 16 preset color options and 4 dynamic color transition modes (flash, strobe, fade, and smooth), enabling immediate ambiance customization. Meanwhile, the mobile application offers full RGB color control, allowing users to create any desired hue and adjust the speed of color transitions.
The application-enabled music synchronization feature enables the lights to pulse in sync with the rhythm of your music (note: the system does not include built-in speakers, focusing solely on visual effects). With an IP67 waterproof rating and compact lighting units measuring only 17mm × 15mm × 26.8mm that blend seamlessly into the structure, this system is ideal for both indoor and outdoor environments. Enhance the aesthetic appeal and functional versatility of your space with the ASD-2-LED railings.

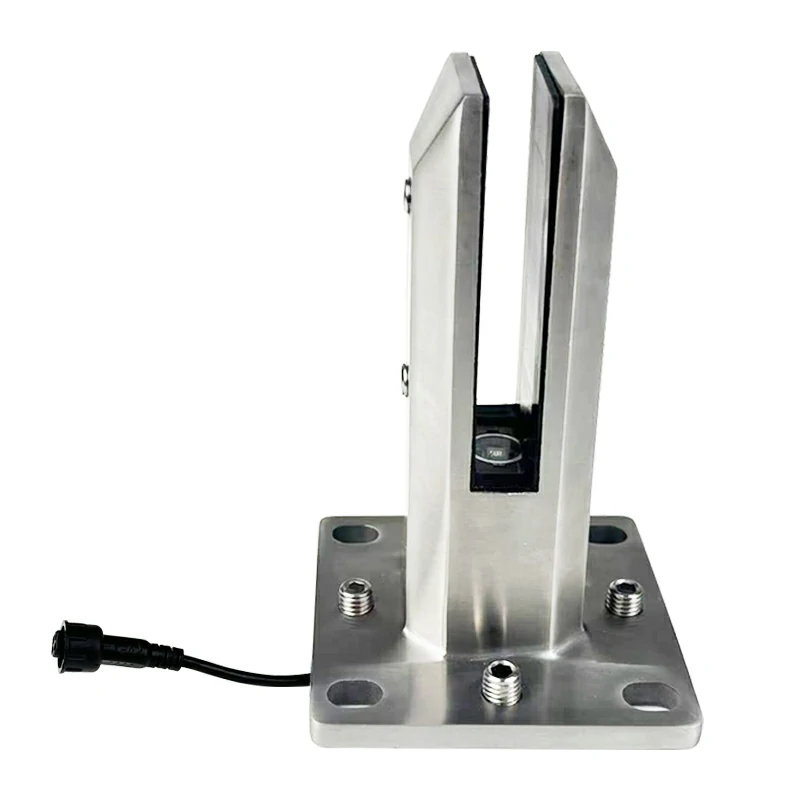

Glass Spigot Specifications
|
Product Name |
Square Floor-standing Glass Spigot |
|
Outline Dimension |
158mm*104mm*104mm |
|
Glass Thickness |
12mm |
|
Weight |
1.89Kg |
|
Finish |
Classic Satin/Mirror |
|
Material |
Duplex Stainless Steel 2205, Stainless Steel 304/316 |
|
Application |
Large display windows, Partition glass, Glass fences, etc. |
|
Casting Process |
Siica Sol Technics Lost-wax Process |
|
Certifications |
Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
|
OEM |
Available |
|
Annual Output |
2000MT |
|
Tooling Leadtime |
2--4 Week |
|
Delivery Time |
4--5 Week |
LED Specifications
|
Single Light Size |
17mm × 15mm × 26.8mm |
|
Light Cable Length |
150mm per unit |
|
Waterproof Rating |
IP67 |
Power Supply
|
Input Voltage |
90-264V AC (Universal Voltage) |
|
Output Voltage |
12V DC |
Control System
Remote Control Functions
The remote control provides 16 preset color options and 4 dynamic lighting modes: Flash, Strobe, Fade, and Smooth. During installation, it is essential to position the inductor of the remote controller with the raised side facing upwards and ensure no foreign objects obstruct the signal reception.
App Control Functions (via RGB Color Remote Keypad)
The system supports full RGB color customization through a dedicated mobile application. Additionally, it features music synchronization functionality that enables the lights to respond to external audio sources. To activate the app control feature, users can scan the product QR code to download the corresponding control application.

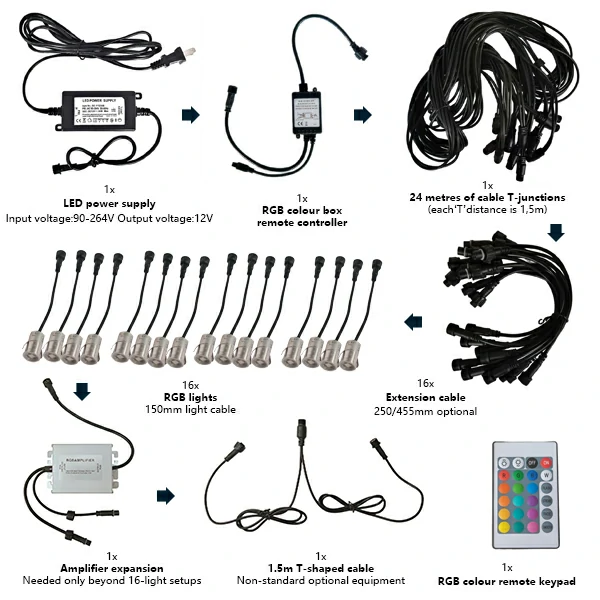

Included Components
LED Power Supply (1x)
RGB Color Remote Controller (1x)
RGB Color Remote Controller (1x)
16 × RGB Lights with 150mm cables
16 × Extension Cables (250mm/455mm optional)
1.5m T-Shaped Cable (0.75m lamp base on each side)
24m Cable with T-Junctions (spaced every 1.5m)
Amplifier Expansion Unit (required for setups beyond 16 lights)

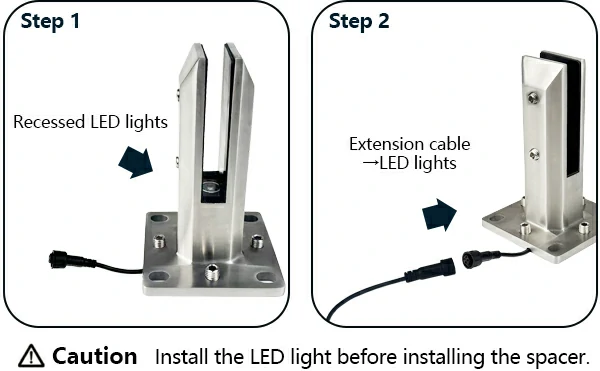

Installation Notes
Use T-junction cables to maintain 1.5m.
Spacing between light units Extend lamp intervals using optional 250mm/455mm extension cables.
Amplifier unit mandatory when connecting more than 16 lights.
Maximum extended distance: 24 meters.
Key Features
App-enabled music synchronization that responds to the rhythm of external audio sources.
Ultra-compact, concealed LED lighting units with weather-resistant design.
Frameless integration suitable for glass structures such as display windows, partitions, and fences.
Dynamic color transition effects with adjustable speed settings.
