Square Glass Spigot

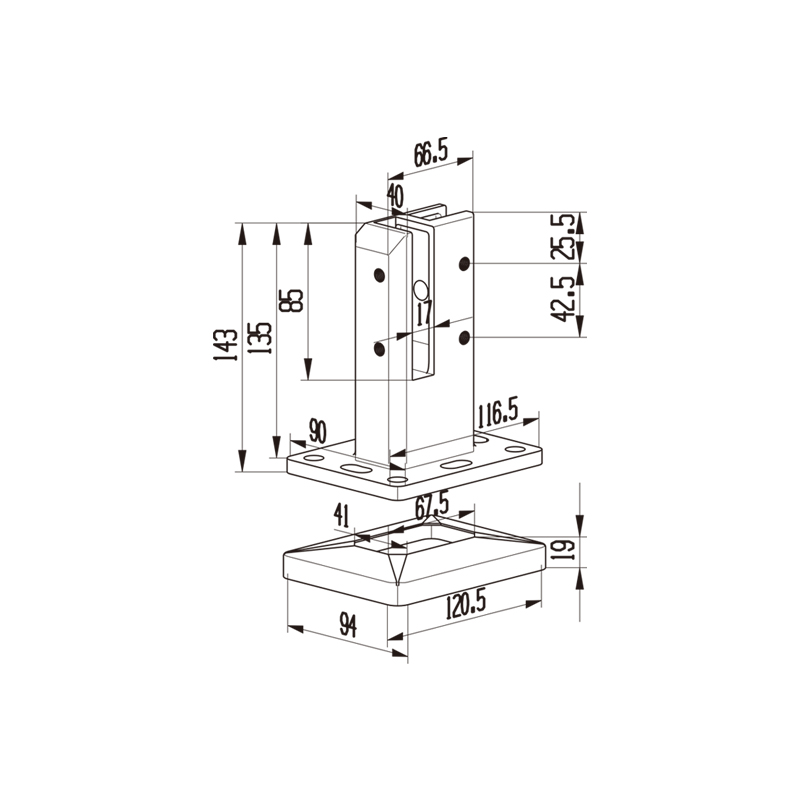

Square Glass Spigot Structure
Square Glass Spigot Square Glass Spigot Structure

90° 2 for 1 Square Glass Spigot

Part No. DOSD-90



Glass Thickness 12mm
Weight 1.89Kg
Outline Dimension 143mm*94mm*120.5mm
Material 2205/304/316
Application:

Glass railings, Pool fences, Balustrades, etc.

Glass Spigot Description

2 for 1 square glass spigot, also known as a 2-way square glass clamp or 2-way glass standoff, is a hardware component specifically designed to securely attach two glass panels to a vertical surface, such as a wall or post, simultaneously.

This square glass spigot is used for 12mm glass, suitable for glass railings, pool fences, balustrades, etc. It can connect two pieces of glass and bring convenience for installation. 90° 2 for 1 square glass spigots are essential components in creating secure, stylish, and modern glass railing systems and architectural features.

Glass Spigot Specifications

Product Name

90° 2 for 1 Square Glass Spigot

Outline Dimension

143mm*94mm*120.5mm

Glass Thickness

12mm

Weight

1.89Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Glass Railings, Pool Fences, Balustrades, etc.

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

Package Specification

Plastic Bag, Bubble Bag.
Paper Carton, Wooden Case, or as Required.

Square Glass Spigot Package

Note

This glass spigot can be two pieces of glass for articulation, would have needed two glass spigots to support the glass now only need a can be completed, greatly reducing the installation cost!

90°  2 for 1 square glass spigots can be used with a variety of glass panel thicknesses and styles, including tempered glass, laminated glass, and patterned glass.

Most spigots are designed for easy and straightforward installation using screws or bolts, making them accessible for DIY enthusiasts and professional installers alike.
